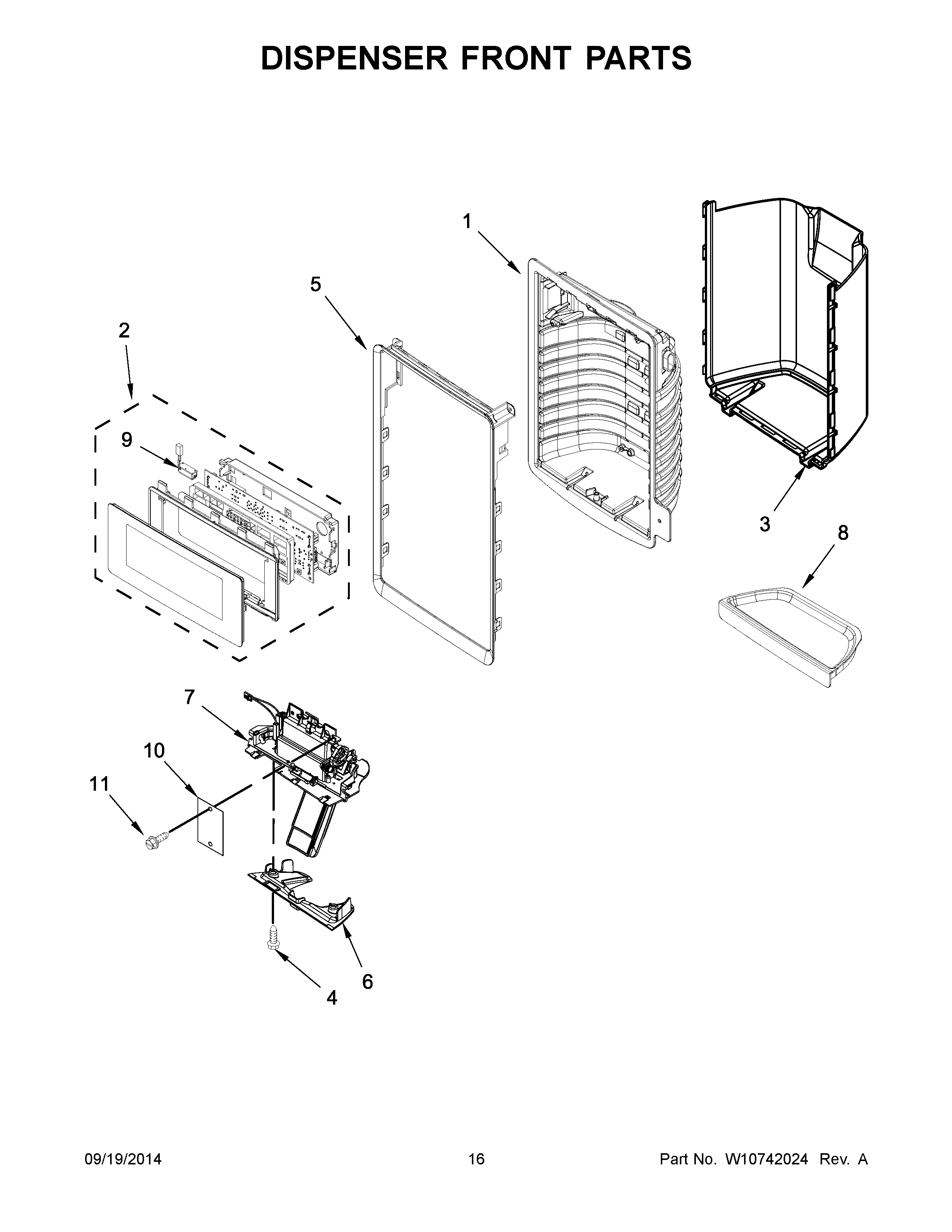

IX7DDEXDSM00 09 – DISPENSER FRONT PARTS

IX7DDEXDSM00 09 – DISPENSER FRONT PARTS

Written by

in

IX7DDEXDSM00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10864267 Whirlpool Refrigerator Electronic Control Board + Core
3FALSE WALL, DISPENSER (GREY)
467006425 Whirlpool Refrigerator Screw
5WPW10402180 Whirlpool Refrigerator Trim
6COVER, SEPARATOR
7WPW10616134 Whirlpool Refrigerator Ice Door
8WPW10606639 Whirlpool Refrigerator Drip Tray
9W11290115 Whirlpool Refrigerator Light
10SHIELD, SEPARATOR
11WPW10272364 Whirlpool Refrigerator Screw
