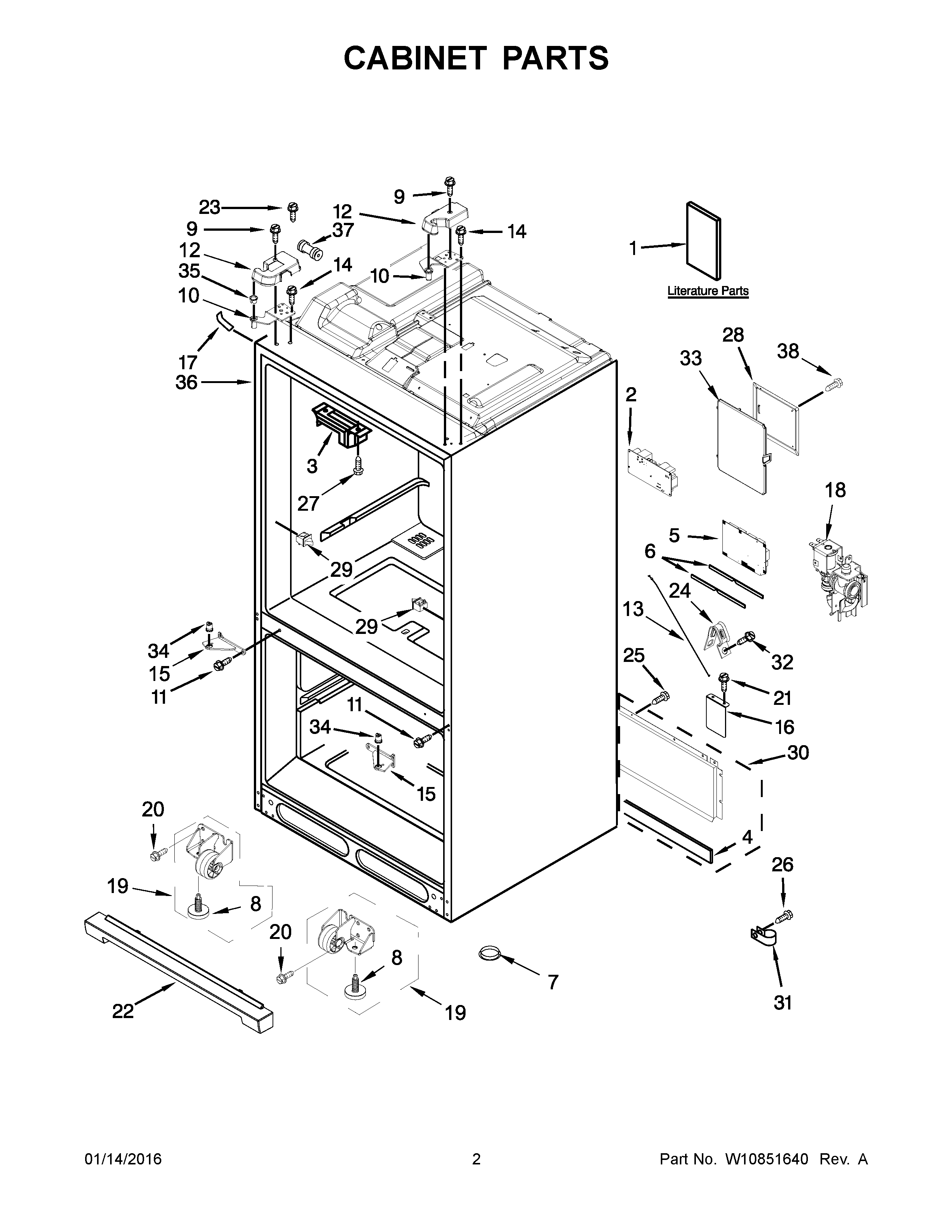

IX7DDEXDSM02 02 – CABINET PARTS

IX7DDEXDSM02 02 – CABINET PARTS

Written by

in

IX7DDEXDSM02 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET (FRENCH)
1USE AND CARE GUIDE
1BTECH SHEET (ENGLISH)
1AENERGY GUIDE
2WPW10453401 Whirlpool Refrigerator Electronic Control Board
3WPW10344432 Whirlpool Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5W10854027-includeCORE Whirlpool W10854027 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10W11592405 Whirlpool Door Hinge
10AW11592404 Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
12WPW10471618 Whirlpool Refrigerator Cover
12AWPW10407158 Whirlpool Refrigerator Cover Assembly
13W11308813 Whirlpool Refrigerator Water Tube
14W11126052 Whirlpool Screw Assembly
15AW11240748 Whirlpool Refrigerator Door Hinge
15W10878115 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22WPW10637671 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24549193 Whirlpool Refrigerator Power Clamp
2667006425 Whirlpool Refrigerator Screw
27W10854958 Whirlpool Refrigerator Screw
28W10754591 Whirlpool Refrigerator Cover
29W11396033 Whirlpool Refrigerator Rocker Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32SCREW
33W10277839 Whirlpool Refrigerator Cover
34COUPLER, DOOR
35W10212137 Whirlpool Refrigerator Grommet
36CABINET (NOT A SERVICEABLE PART)
37WP2300868 Whirlpool Refrigerator Fitting
38W11686675 Whirlpool Screw
