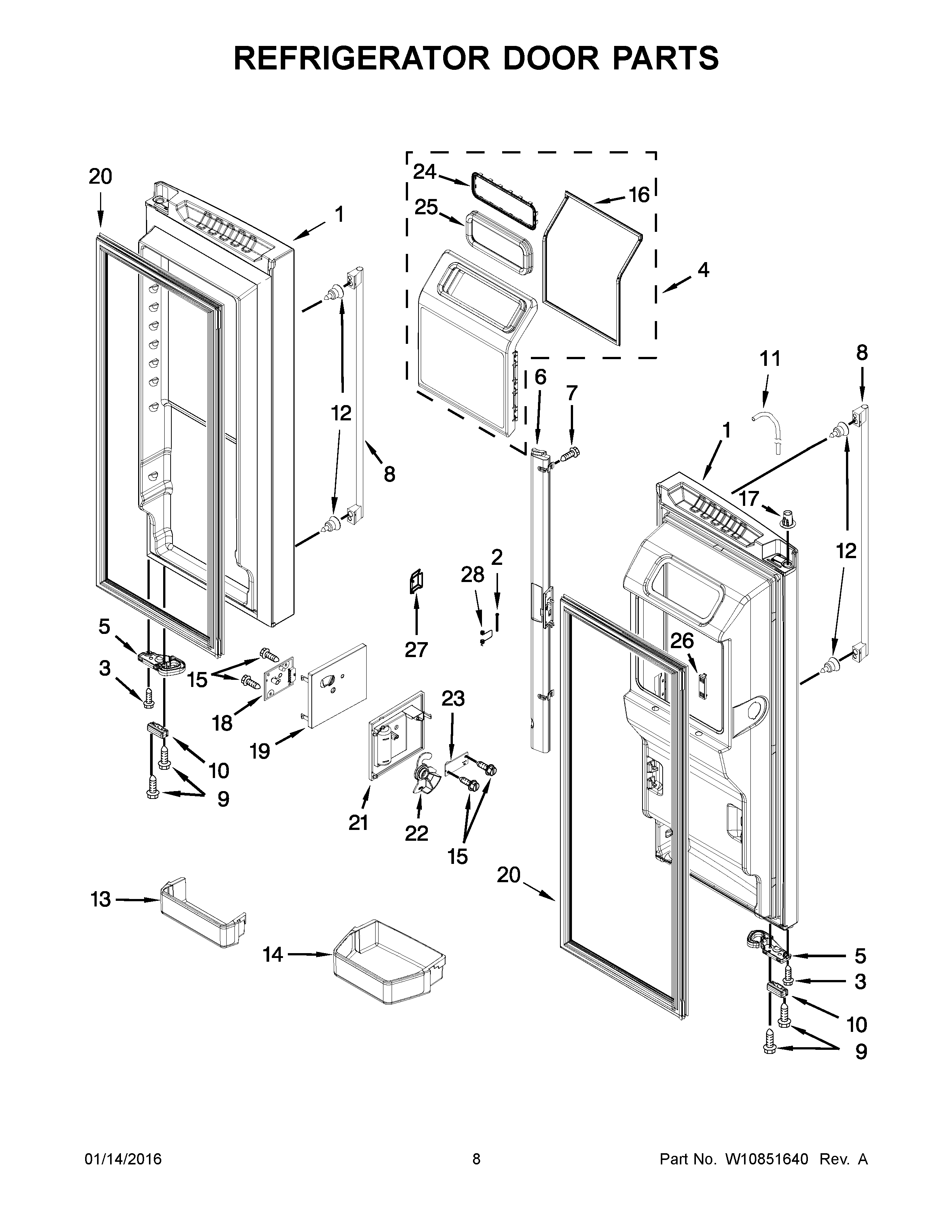

IX7DDEXDSM02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
1A	DOOR, RIGHT (STAINLESS)
2	WP2198634 Whirlpool Door Pin
3	WPW10464016 Whirlpool Refrigerator Screw
4	W11171728 Whirlpool Refrigerator Ice Door
5	W10904595 Whirlpool Refrigerator Closer
5A	W11212164 Whirlpool Refrigerator Door Closer
6	W10806457 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	WPW10202821 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	WPW10499015 Whirlpool Refrigerator Water Tube
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W10838874 Whirlpool Refrigerator Trivet
14	WPW10522064 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W10562834 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	W10407212 Whirlpool Door Gasket
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
