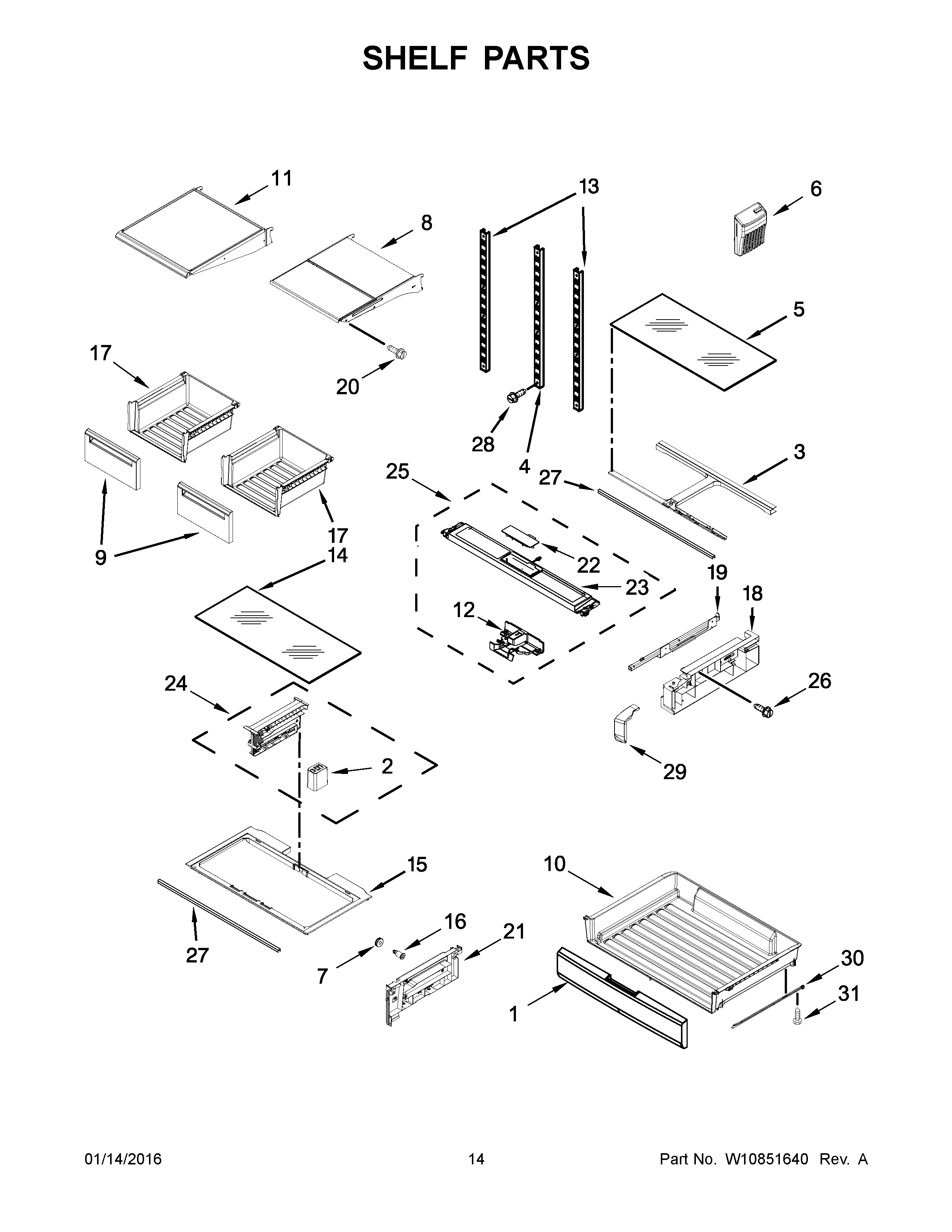

IX7DDEXDSM02 08 – SHELF PARTS

Products

Position	Product
1	WPW10559660 Whirlpool Refrigerator Front Pan
2	W10530315 Whirlpool Refrigerator Support
3	W10515051 Whirlpool Refrigerator Support
4	W11690685 Whirlpool Ladder
5	WPW10248799 Whirlpool Refrigerator Glass Shelf
6	HOLDER, PRODUCE FILTER
7	WPW10248544 Whirlpool Refrigerator Roller
8	WPW10402712 Whirlpool Refrigerator Glass Shelf
9	W10847546 Whirlpool Drawer Front
10	WPW10654844 Whirlpool Storage Drawer
11	WPW10402695 Whirlpool Refrigerator Glass Shelf
12	W10512596 Whirlpool Refrigerator Knob
13	LADDER
14	WPW10248578 Whirlpool Refrigerator Glass Shelf
15	W10717574 Whirlpool Frame
16	WPW10257246 Whirlpool Refrigerator Axle
17	W10850129 Whirlpool Crisper Drawer
18	PLATE, SIDE PANTRY (LEFT HAND)
18A	W10248796 Whirlpool Refrigerator Plate
19	W10508327 Whirlpool Refrigerator Slide
19A	W10508326 Whirlpool Refrigerator Slide
20	W10421495 Whirlpool Refrigerator Screw
21A	W11209881 Whirlpool Support Drawer
21	W11173721 Whirlpool Refrigerator Plate
22	HOUSING, PANTRY TEMPERATURE CONTROL
23	COVER, PANTRY TOP
24	W10549606 Whirlpool Refrigerator Track
25	W10554737 Whirlpool Refrigerator Cover
26	W10185612 Whirlpool Screw
27	WPW10236512 Whirlpool Refrigerator Support
28	W10423560 Whirlpool Refrigerator Screw
29	W10426799 Whirlpool Refrigerator Manifold Panel
29A	W10426797 Whirlpool Refrigerator Trim
30A	W10508328 Whirlpool Refrigerator Slide
30	W10508330 Whirlpool Refrigerator Slide
31	WP8281136 Whirlpool Screw
