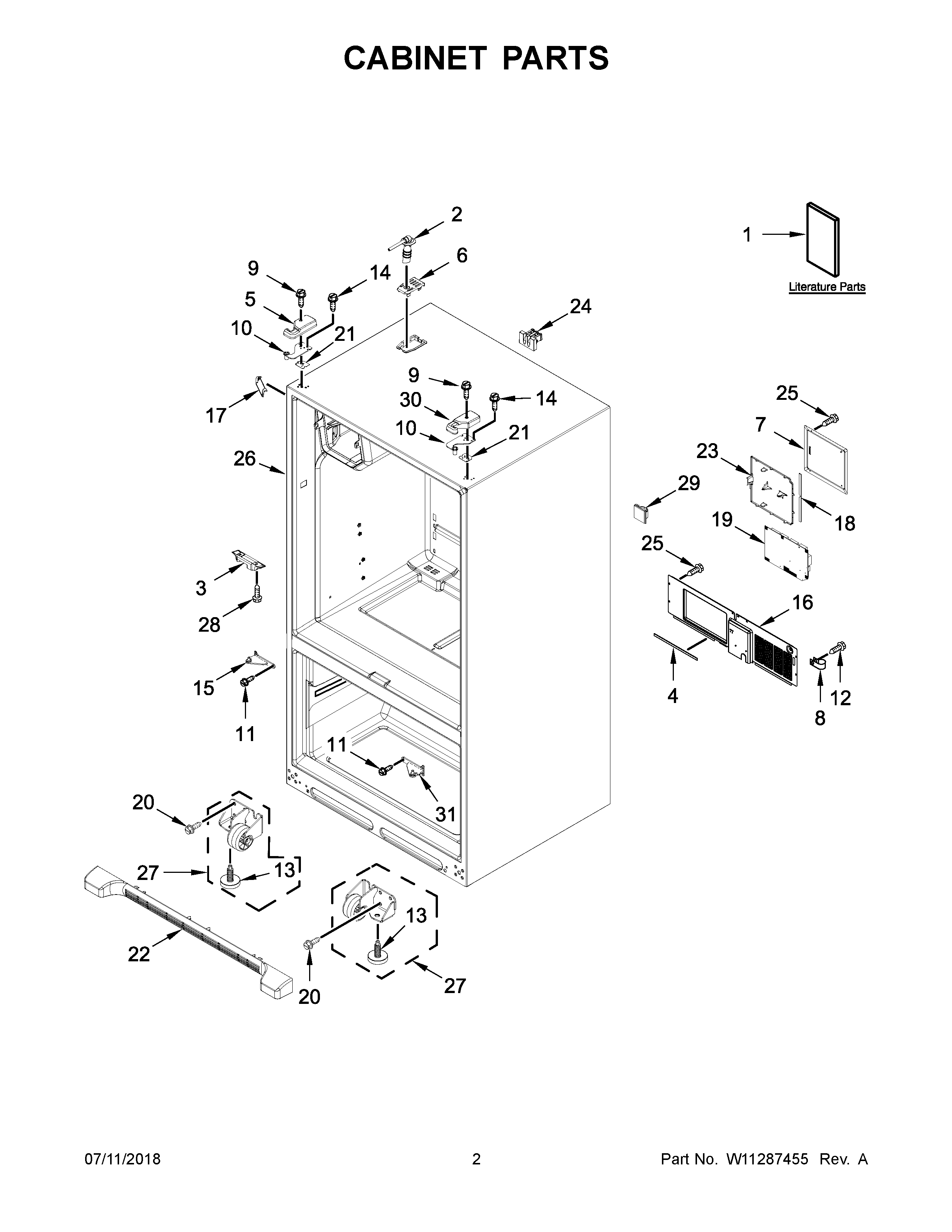

IX7DDEXGZ002 02 – CABINET PARTS

Products

Position	Product
1C	ENERGY GUIDE
1B	USE AND CARE GUIDE
1	TECH SHEET (ENGLISH)
1A	TECH SHEET (FRENCH)
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10337648 Whirlpool Refrigerator Cover
6	W10191141 Whirlpool Refrigerator Tube Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	67006425 Whirlpool Refrigerator Screw
13	WPW10141622 Whirlpool Leveler
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	WPW10270394 Whirlpool Refrigerator Back Cover
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10914798 Whirlpool Gasket
19	W11043763 Whirlpool Refrigerator Electronic Control Board
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W10296541 Whirlpool Refrigerator Wire Cover
24	W11686793 Whirlpool Block
25	W11686675 Whirlpool Screw
26	CABINET (NOT A SERVICEABLE PART)
27A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
27	WPW10515763 Whirlpool Refrigerator Cabinet Roller
28	W11693756 Whirlpool Screw Assembly
29	WPM0104106 Whirlpool Refrigerator Clip
30	WPW10191117 Whirlpool Refrigerator Cover
31	HINGE-DOOR
