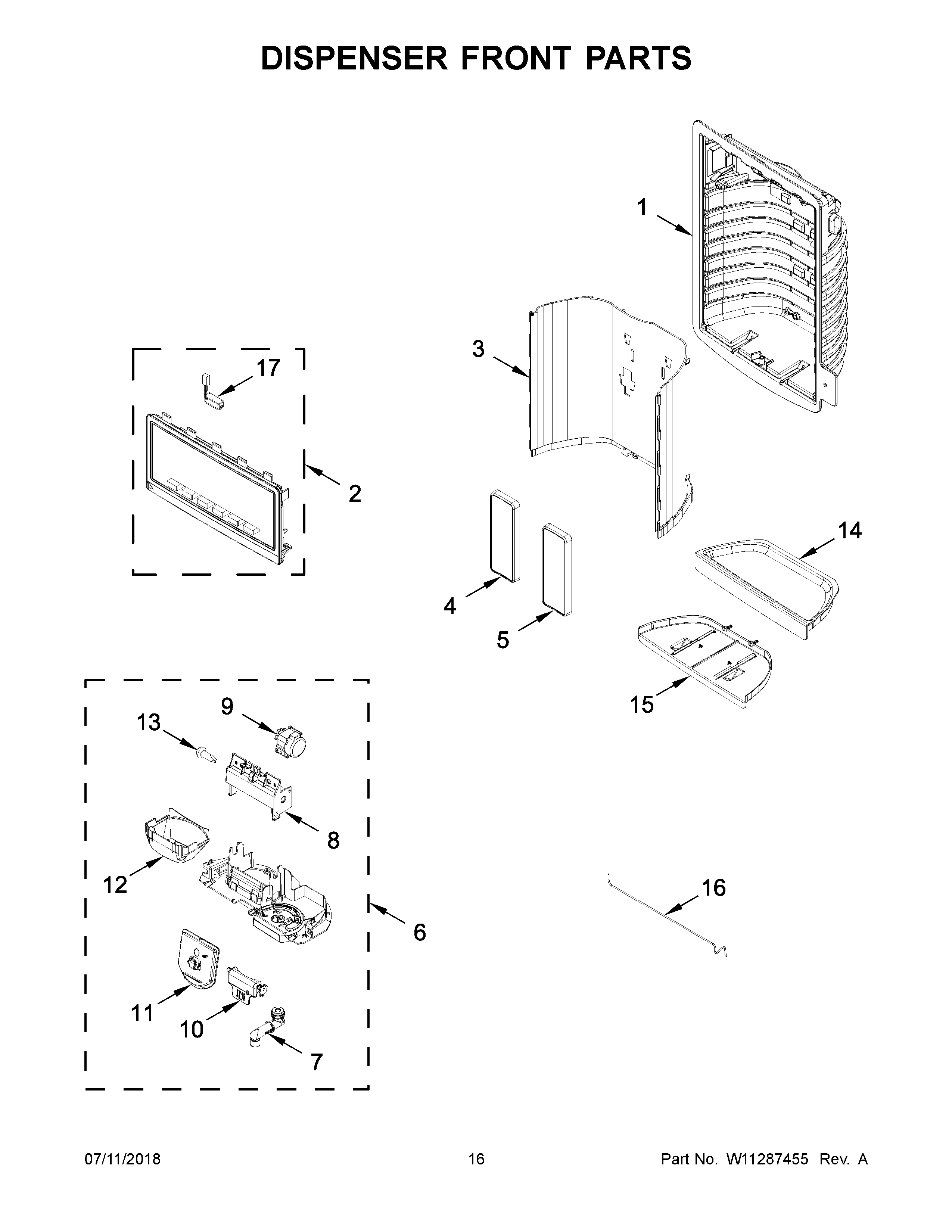

IX7DDEXGZ002 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11284720 Whirlpool Refrigerator UI Panel
3W11045978 Whirlpool Refrigerator Shield
4WPW10368730 Whirlpool Refrigerator Pad
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W10174827 Whirlpool Refrigerator Bracket
9WPW10205979 Whirlpool Refrigerator Ice Door Motor
10WPW10346124 Whirlpool Refrigerator Support
11WPW10317279 Whirlpool Refrigerator Door Chute
12WPW10435760 Whirlpool Refrigerator Ice Guide
13W10174818 Whirlpool Refrigerator Clip
14W11192301 Whirlpool Refrigerator Drip Tray
15WPW10267863 Whirlpool Refrigerator Drip Tray
16WPW10511930 Whirlpool Refrigerator Water Tube
17W11290115 Whirlpool Refrigerator Light
