IX7HHEXDSM00 02 – CABINET PARTS

IX7HHEXDSM00 02 – CABINET PARTS

Written by

in

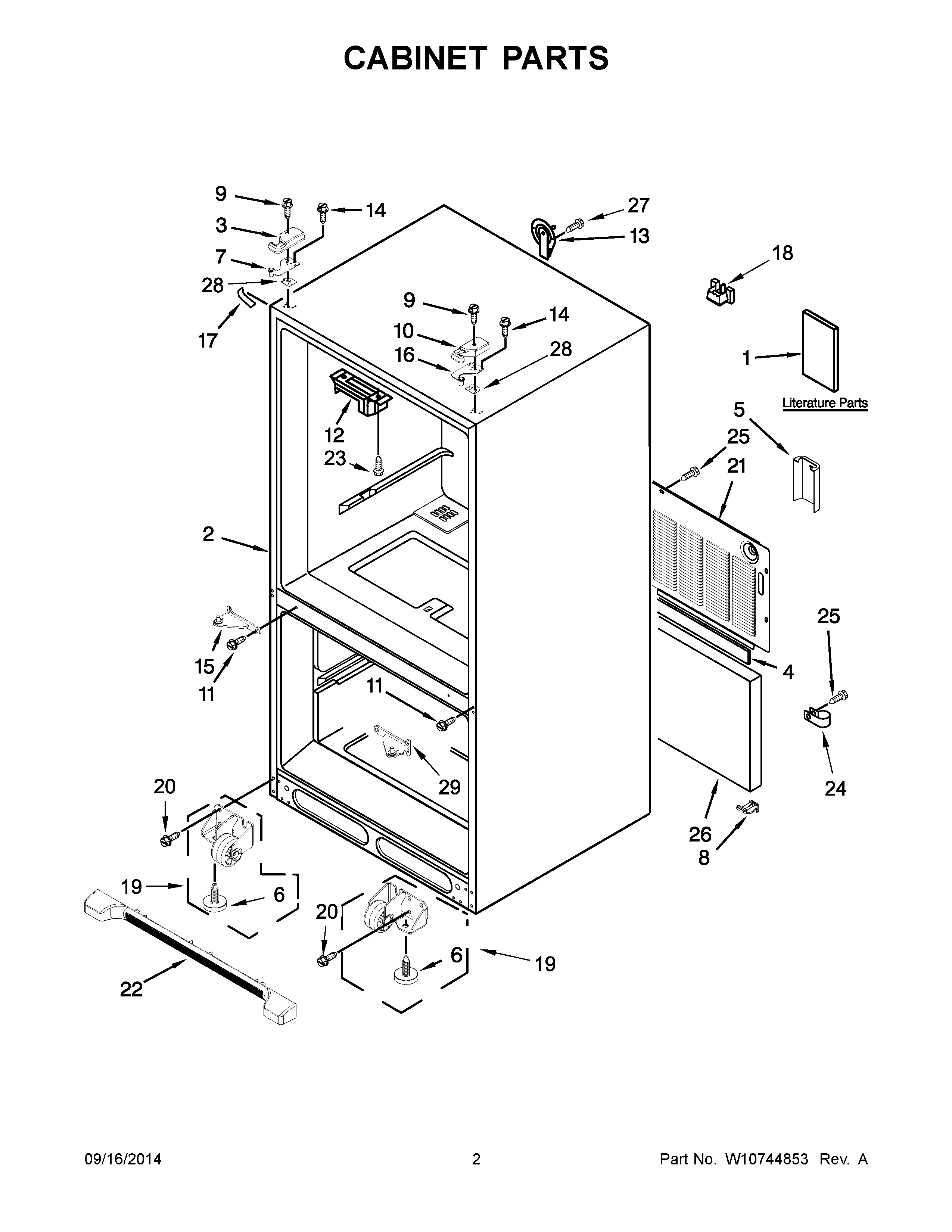

IX7HHEXDSM00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10WPW10191117 Whirlpool Refrigerator Cover
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10917988 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
18W11686793 Whirlpool Block
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10854958 Whirlpool Refrigerator Screw
24W11456069 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27WP98165 Whirlpool Screw
2812999501 Whirlpool Refrigerator Hinge Shim
28A12999502 Whirlpool Refrigerator Hinge Shim
