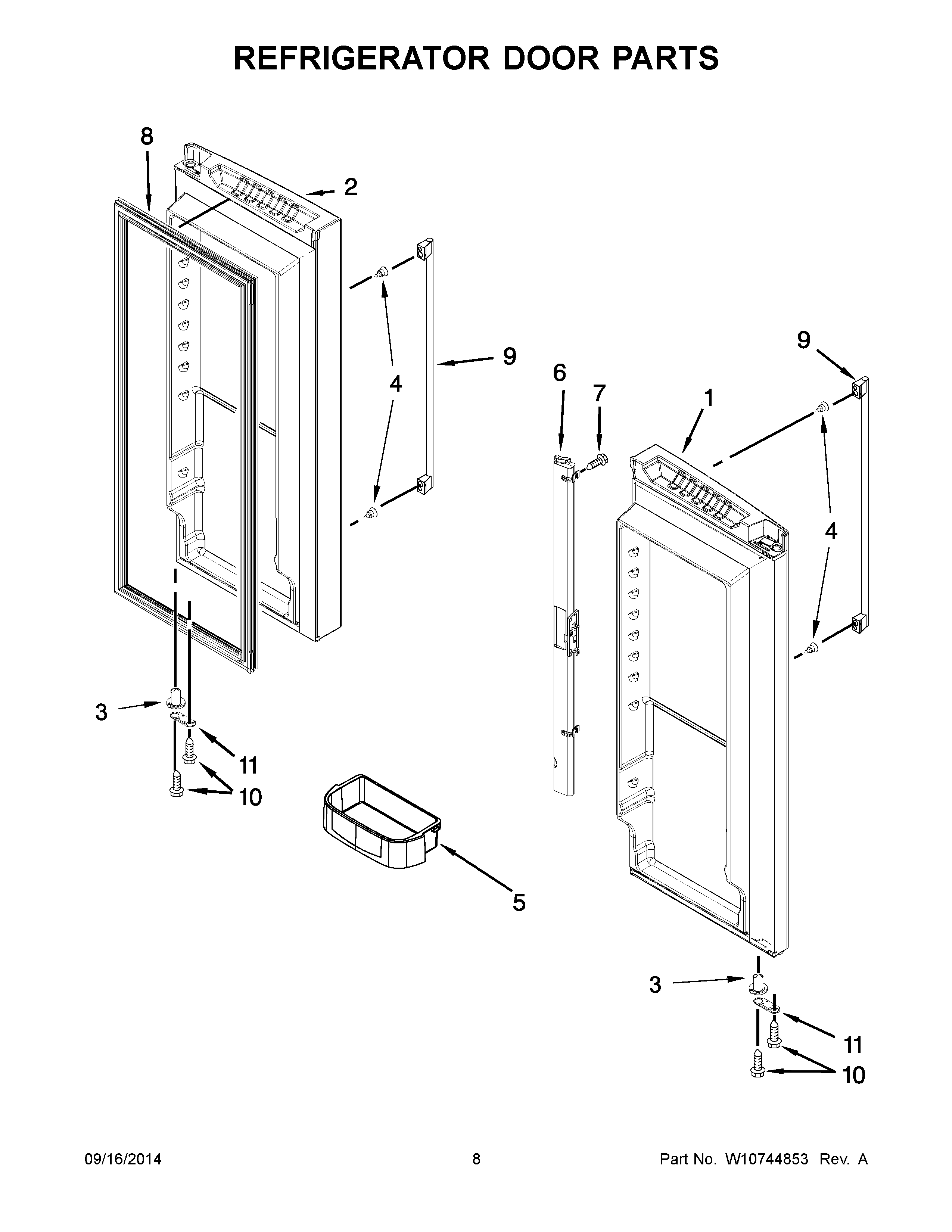

IX7HHEXDSM00 05 – REFRIGERATOR DOOR PARTS

IX7HHEXDSM00 05 – REFRIGERATOR DOOR PARTS

Written by

in

IX7HHEXDSM00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107888SQ Whirlpool Refrigerator DOR-FIP Stainless Steel
213107887SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
3WP12028505AP Whirlpool Closing Cam
4WPW10661886 Whirlpool Refrigerator Door Handle Screw
5AWPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9WPW10202821 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
