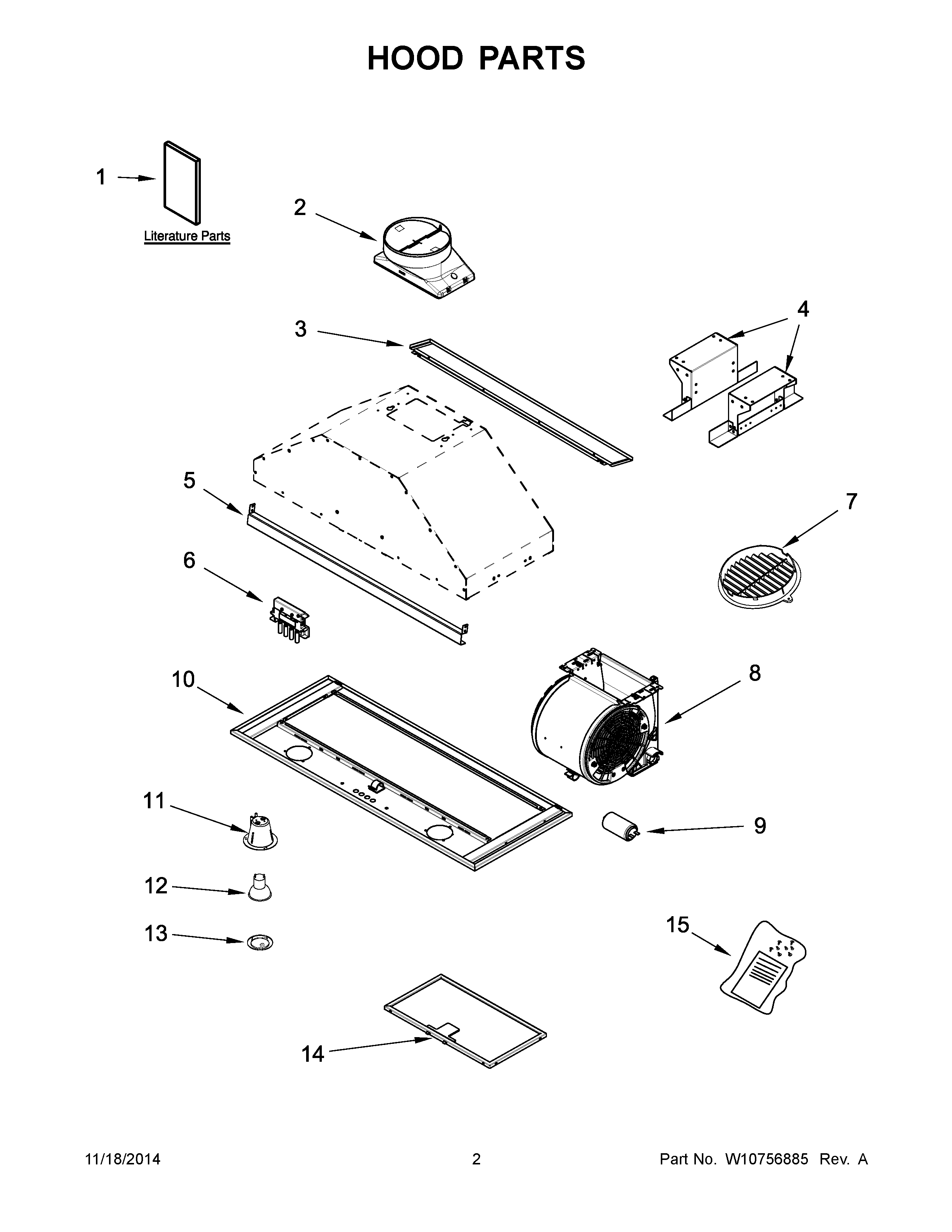

IXL5430DS0 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10272068 Whirlpool Range Hood Charcoal Filter Set
NI	W10446915 Whirlpool Range Hood Air Kit
1	GUIDE, USE AND CARE
2	W10847841 Whirlpool Range Hood Vent Damper
3	W10762275 Whirlpool Hood Liner
4	WPW10531090 Whirlpool Mounting Bracket
5	FACEPLATE
6	W10531088 Whirlpool Power Button Switch
7	DEFLECTOR
8	BLOWER-FAN
9	W10256657 Whirlpool Capacitor
10	WPW10531091 Whirlpool Light Support
11	WPW10370558 Whirlpool Socket
12	WPW10291579 Whirlpool Light Bulb
13	W10351924 Whirlpool Bezel
14	WPW10531087 Whirlpool Filter Assembly
15	W10762276 Whirlpool Hardware
