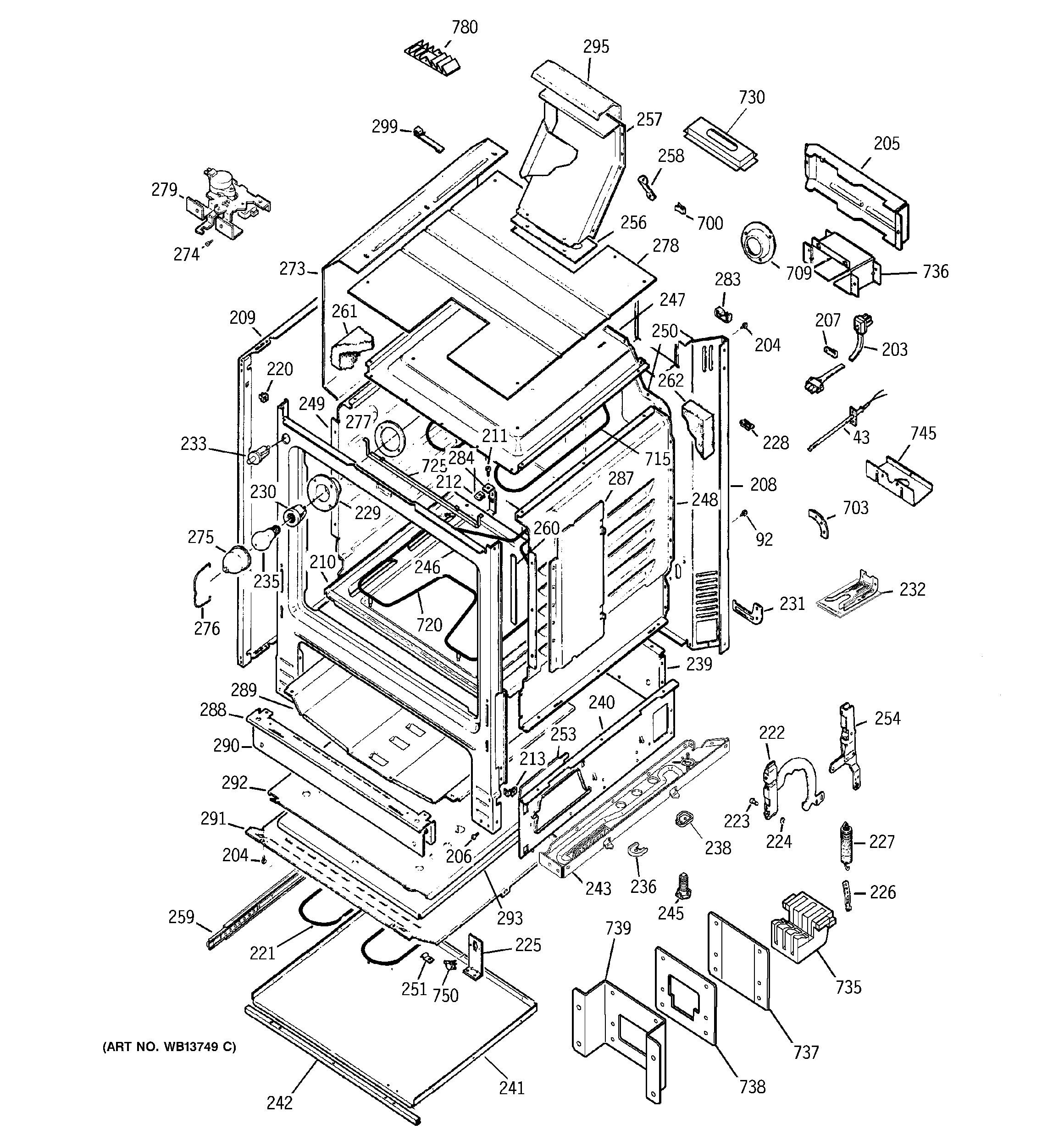

J2B912BEK3BB BODY PARTS

J2B912BEK3BB BODY PARTS

Written by

in

J2B912BEK3BB BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203GEN WB18K10031
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10065
209GEN WB63K0052
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221GEN WB44K10016
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB02K10030
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231GEN WB02K0012
232WB2K20 GE Oven Bracket Assembly
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236WB02K10104 GE Base Spacer
238GEN WB02K10106
238GEN WB02K10105
239GEN WB63K10066
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241GEN WB63K10041
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10018
247GEN WB53K10018
248GEN WB53K0002
249GEN WB53K0003
250GEN WB53K10019
251WB02K10023 GE Oven Heating Element Clamp
253WB2K4 GE Cover Accessory Spring
254GEN WB10K0013
254GEN WB10K0014
254GEN WB01K0053
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0007
262GEN WB35K10056
273GEN WB53K0011
273GEN WB53K0012
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278GEN WB53K10030
279WB02K10136 GE Oven Motor Switch Assembly
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287GEN WB34K10090
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292GEN WB63K10117
293GEN WB63K0018
295GEN WB35K10036
299GEN WB02K0038
700RETAINER-INSULATION
703BRACKET OVEN
709GEN WB08K0004
715GEN WB44K10017
720GEN WB44K10018
725GEN WB02K10118
730GEN WB38K10012
735GEN WB17K10002
736GEN WB02K10122
737GEN WB35K10057
738GEN WB02K10119
739GEN WB02K10120
745GEN WB02K10121
750GEN WB24K10034
780GEN WB38K10009
