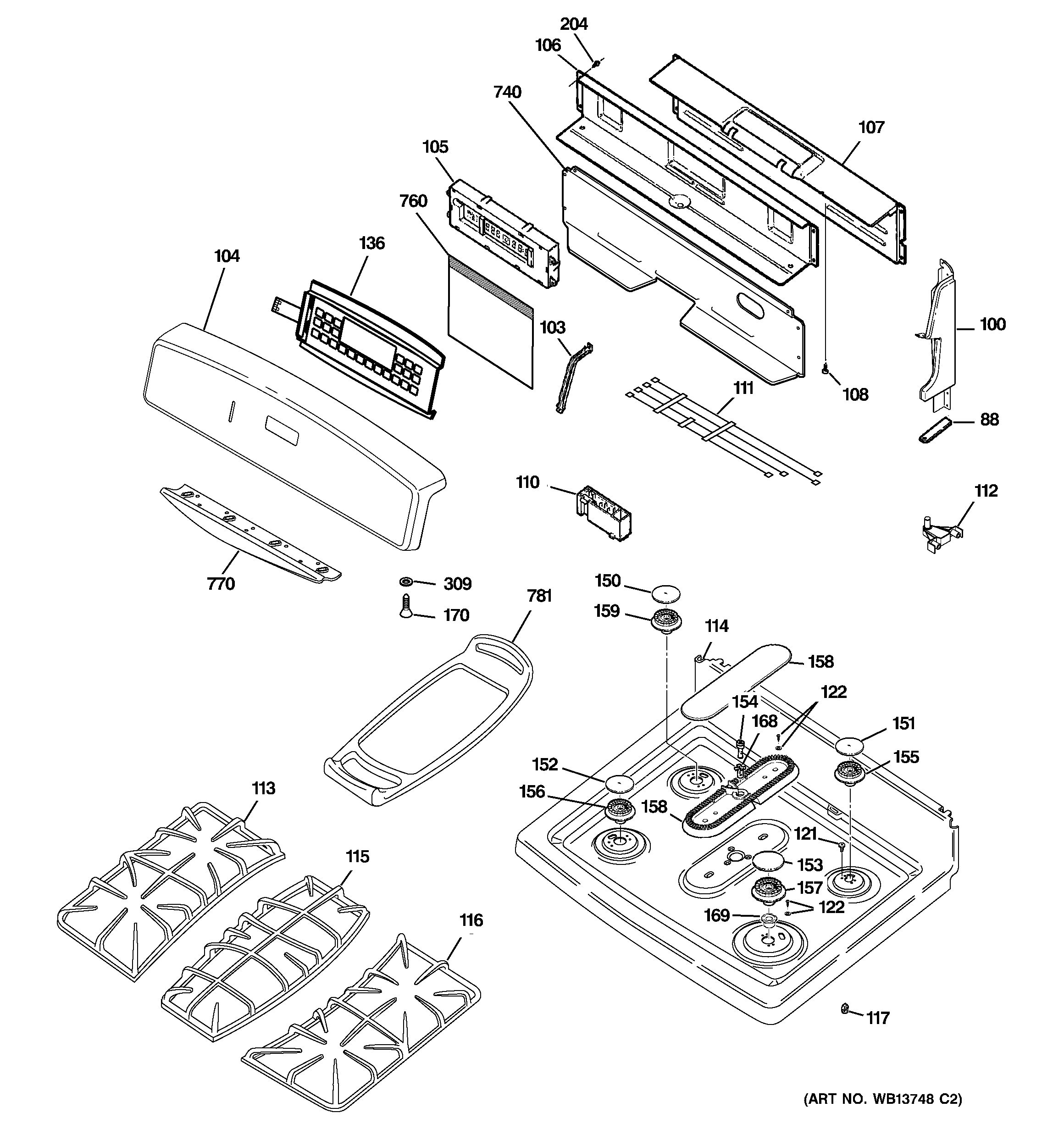

J2B912BEK3BB CONTROL PANEL & COOKTOP

J2B912BEK3BB CONTROL PANEL & COOKTOP

Written by

in

J2B912BEK3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
100GEN WB07K10183
100GEN WB07K10184
103GEN WB02K10065
104GEN WB36K10626
105GEN WB27T10666
106GEN WB34K10063
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
108WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
110GEN WB13K10010
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113GEN WB31K10207
114GEN WB62K10110
115GEN WB31K10209
116WB31K10208 GE Oven Cast Grate (DD) Right
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10238
150WB29K10001 GE Oven Burner Cap
151WB29K10009 GE Oven Burner Cap
152WB29K10006 GE Oven Burner Cap
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10059
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
309WASHER
740GEN WB34K10073
760GEN WB35K10058
770GEN WB35K10050
781WB31K10217 GE Oven Griddle Kit
