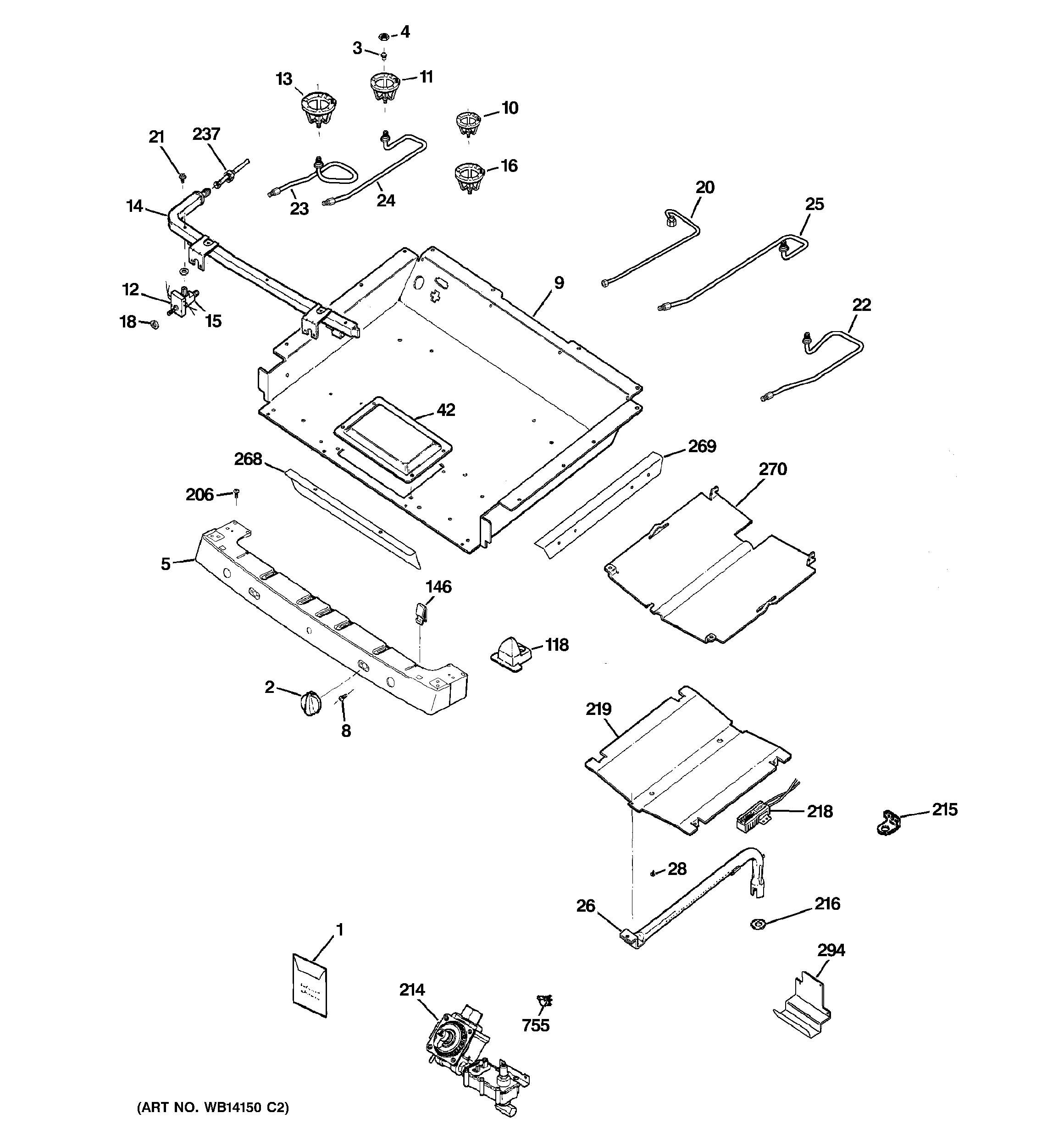

J2B912BEK3BB GAS & BURNER PARTS

J2B912BEK3BB GAS & BURNER PARTS

Written by

in

J2B912BEK3BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85112
1GEN WB28K10366
1GEN 31-21314
1GEN WB02K0101
2GEN WB03K10135
3GEN WB28K10287
3GEN WB28K10216
3WB28K10215 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3WB28K10288 GE Oven Orifice Spud
3WB28K10214 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10622
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10380
15WB21K10097 GE Oven Burner Valve
15WB21K10119 GE Oven Burner Valve 270
15WB21K10096 GE Oven Burner Valve 270
15WB21K10117 GE Oven Burner Valve
15WB21K10099 GE Oven Burner Valve
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM NG
21WB1K83 GE Oven Screw
21WB01K10066 GE Oven Screw 8 HD 10-32
21GEN WB01K10044
22GEN WB28K10424
23WB28K10388 GE Oven Left Orifice Holder
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR NG
26WB16K10035 GE Range Oven Burner Bar with Igniter
28WB1X1293 GE Oven Screw
42GEN WB63K0022
118GEN WB14K10005
146GEN WB02K0052
206WR01X10065 GE Screw
214GEN WB19K10019
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
268GEN WB35K10047
269GEN WB35K10048
270DEFLECTOR
294WB63K10054 GE Terminal Cover
755GEN WB24K10035
