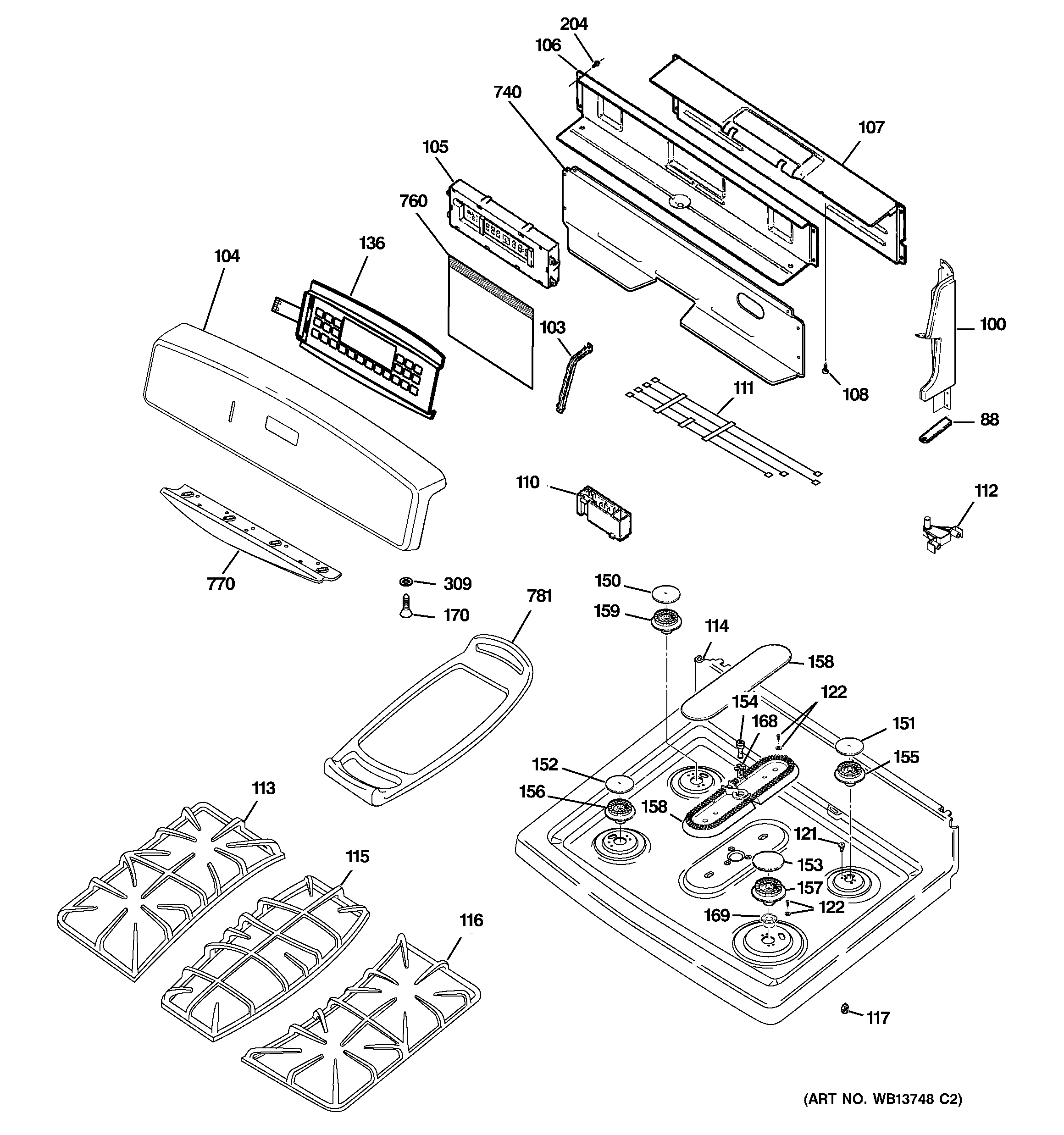

J2B912WEK3WW CONTROL PANEL & COOKTOP

J2B912WEK3WW CONTROL PANEL & COOKTOP

Written by

in

J2B912WEK3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10189
100GEN WB07K10188
103GEN WB02K10065
104GEN WB36K10628
105GEN WB27T10666
106GEN WB34K10063
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
108WB1X5364 GE Oven Mounting Screw
110GEN WB13K10010
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113WB31K10213 GE Oven Left Cast Grate (DD)
114GEN WB62K10111
115GEN WB31K10215
116GEN WB31K10214
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10240
150WB29K10004 GE Oven Gray Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10007 GE Oven Burner Cap, Left
153GEN WB28K10223
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158CENTRAL BURNER ASM
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
309WASHER
740GEN WB34K10073
760GEN WB35K10058
770GEN WB35K10052
781WB31K10217 GE Oven Griddle Kit
