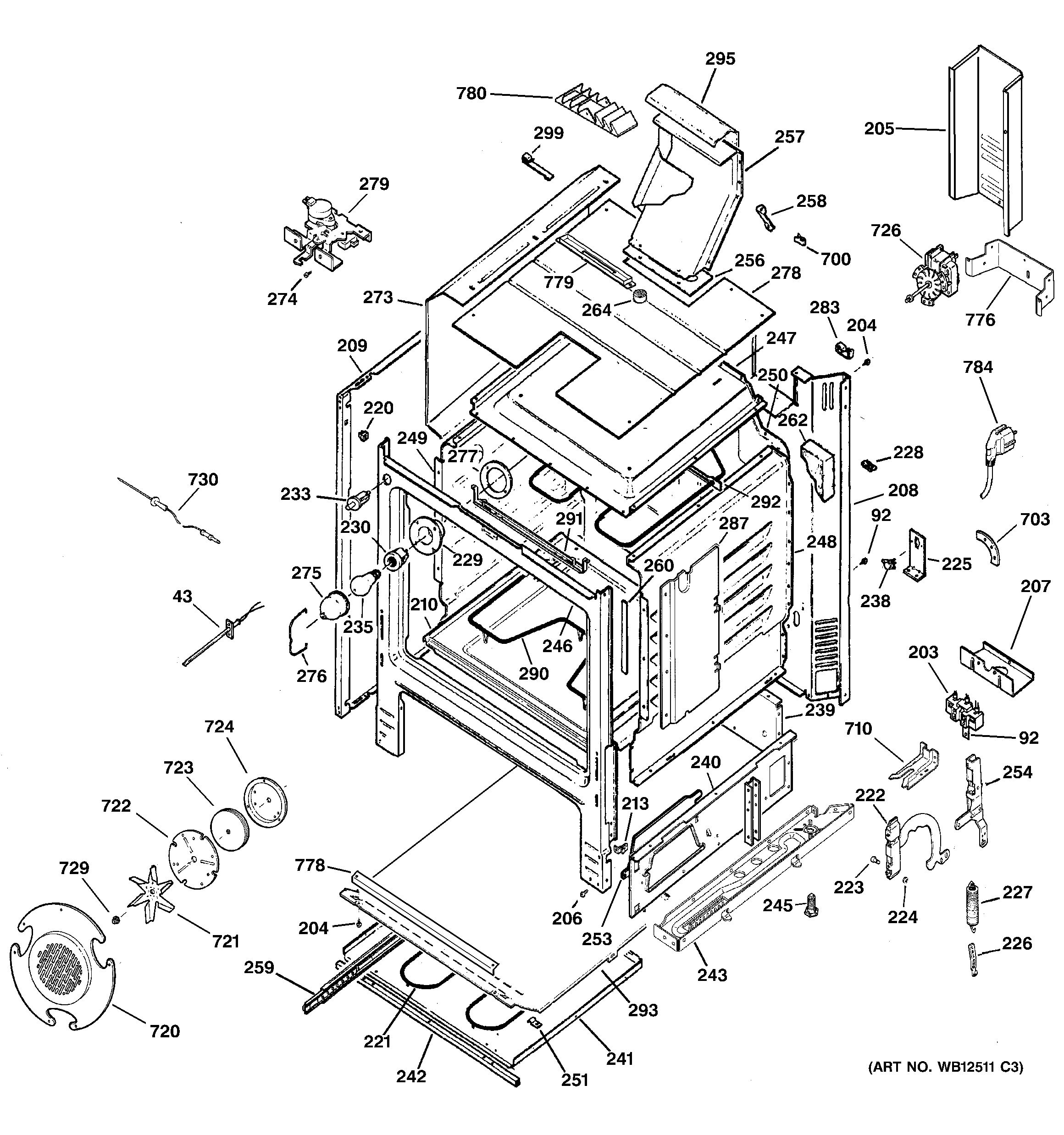

J2B915BEH3BB BODY PARTS

J2B915BEH3BB BODY PARTS

Written by

in

J2B915BEH3BB BODY PARTS

Products

PositionProduct
43SENSOR ASM
92WB1X1261 GE Oven Screw
92PLATE GROUND
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
206WR01X10065 GE Screw
207WB02K10052 GE Oven Mounting Bracket
207WB02K10029 GE Oven Mounting Terminal Bracket
208WB35K10039 GE Motor Insulation
208GEN WB62K10068
209GEN WB63K0052
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10011 GE Oven Heating Element
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB02K10030
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
233WB24T10147 GE Oven SPDT Light Switch
235RANGE ONLY 40W 120V APPL BULB
238GEN WB20K10006
239WB63K10030 GE Rear Broil Panel
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241GEN WB63K10041
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10018
247WB53K10017 GE Top Panel
248GEN WB63K10010
249GEN WB63K10032
250GEN WB53K10013
251WB02K10023 GE Oven Heating Element Clamp
253WB2K4 GE Cover Accessory Spring
254GEN WB10K0014
254GEN WB10K0013
254GEN WB01K0053
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10021 GE Oven Left Drawer Slide Assembly
259WB39K10020 GE Oven Right Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
262GEN WB35K10012
264WB35K10028 GE Oven Catalyst Support
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278CLIP WINDOW
279WB02K10136 GE Oven Motor Switch Assembly
279GEN WB02K10011
283WB02X21679 GE Oven Wire Clip
287WB34K30 GE Radiation Guard
287GEN WB34K0031
290WB30X46987 GE Bake Element
291WB63K10031 GE Bottom Guard
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
293GEN WB63K10009
295GEN WB35K10036
299GEN WB02K0038
700RETAINER-INSULATION
703BRACKET OVEN
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
720WB34K10037 GE Oven Front Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
726WB26K10004 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
776WB34K10054 GE Terminal Comp Guard
778WB34K10055 GE Bottom Guard Complete
779GEN WB38K10004
780GEN WB38K10009
784WB18K10014 GE Oven Line Cord Kit
