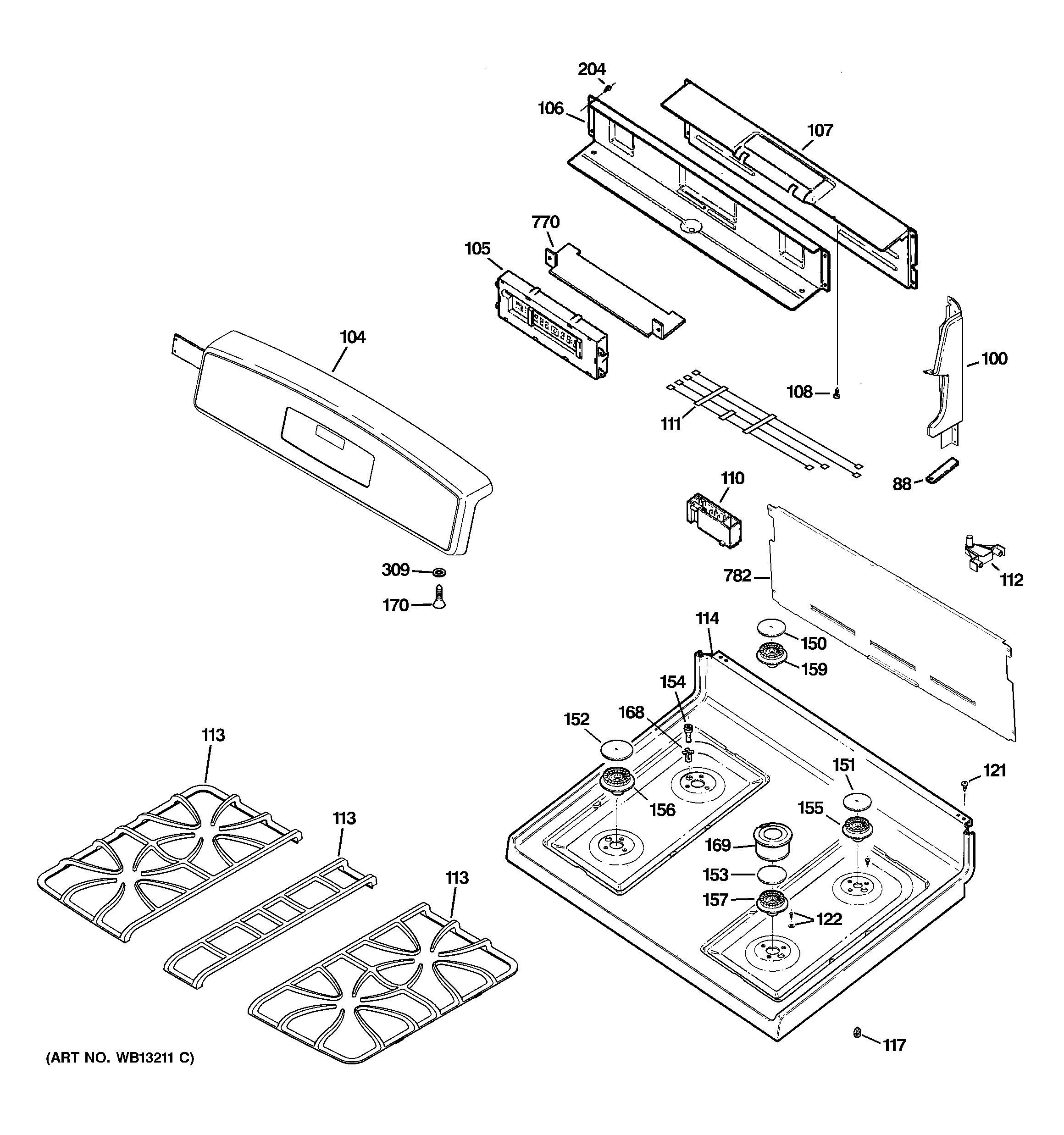

J2B915SEH2SS CONTROL PANEL & COOKTOP

J2B915SEH2SS CONTROL PANEL & COOKTOP

Written by

in

J2B915SEH2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
100GEN WB07K10183
100GEN WB07K10184
104GEN WB36K10421
105WB27K10124 GE Oven Control ERC
106GEN WB34K10064
107GEN WB34K10062
108GEN WB01X5967
108WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
110GEN WB13K0025
111GEN WB18K10023
112WB14K10003 GE Range Top Hinge
113GEN WB31K10115
113GEN WB31K10114
113GEN WB31K10116
114GEN WB62K10087
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
309WASHER
770GEN WB35K10037
782WB34K10068 GE Back Cover
