J2BP85SEL3SS CONTROL PANEL & COOKTOP

J2BP85SEL3SS CONTROL PANEL & COOKTOP

Written by

in

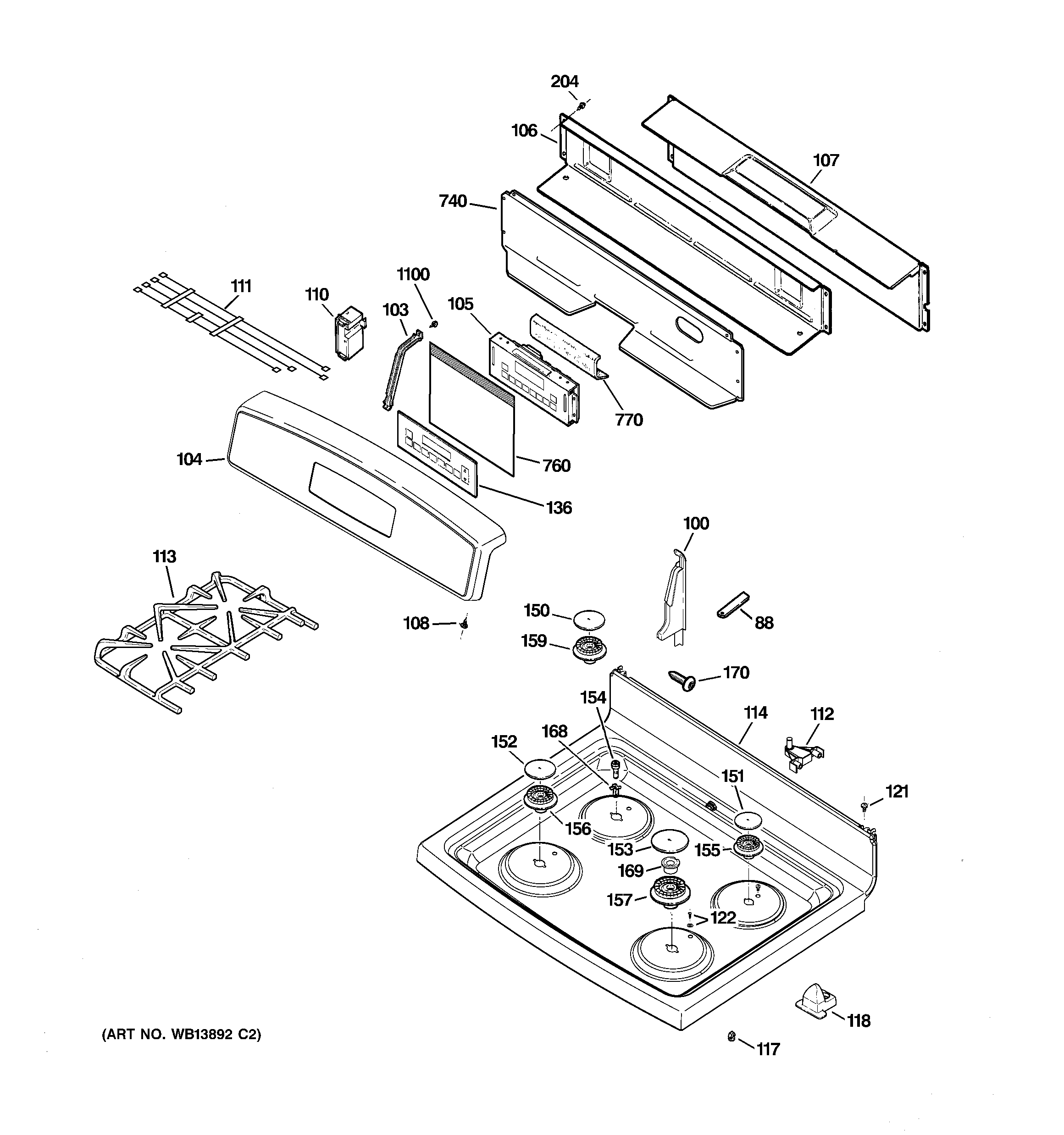

J2BP85SEL3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88WB2K64 GE Oven Felt Pad Black
100END SUPPORT LEFT
100END SUPPORT RIGHT
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10613
105GEN WB27T10666
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB1X5364 GE Oven Mounting Screw
108WB01K10030 GE Screw Assembly
110WB13K10029 GE Oven Spark Module
111WB18K10035 GE Oven Wire Harness
112WB14K10003 GE Range Top Hinge
113WB31K10138 GE Oven Right Side Grate Cast
113GEN WB31K10139
114GEN WB62K10087
117WB14K10004 GE Oven Pin Locator
118GEN WB02K10105
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10237
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154WB16K10055 GE Oven Burner Base
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
740GEN WB34K10073
760GEN WB35K10058
770GEN WB35K10004
1100WB01T10016 GE Oven Screw 8-18 AB Hex
