J2BP85WEL3WW CONTROL PANEL & COOKTOP

J2BP85WEL3WW CONTROL PANEL & COOKTOP

Written by

in

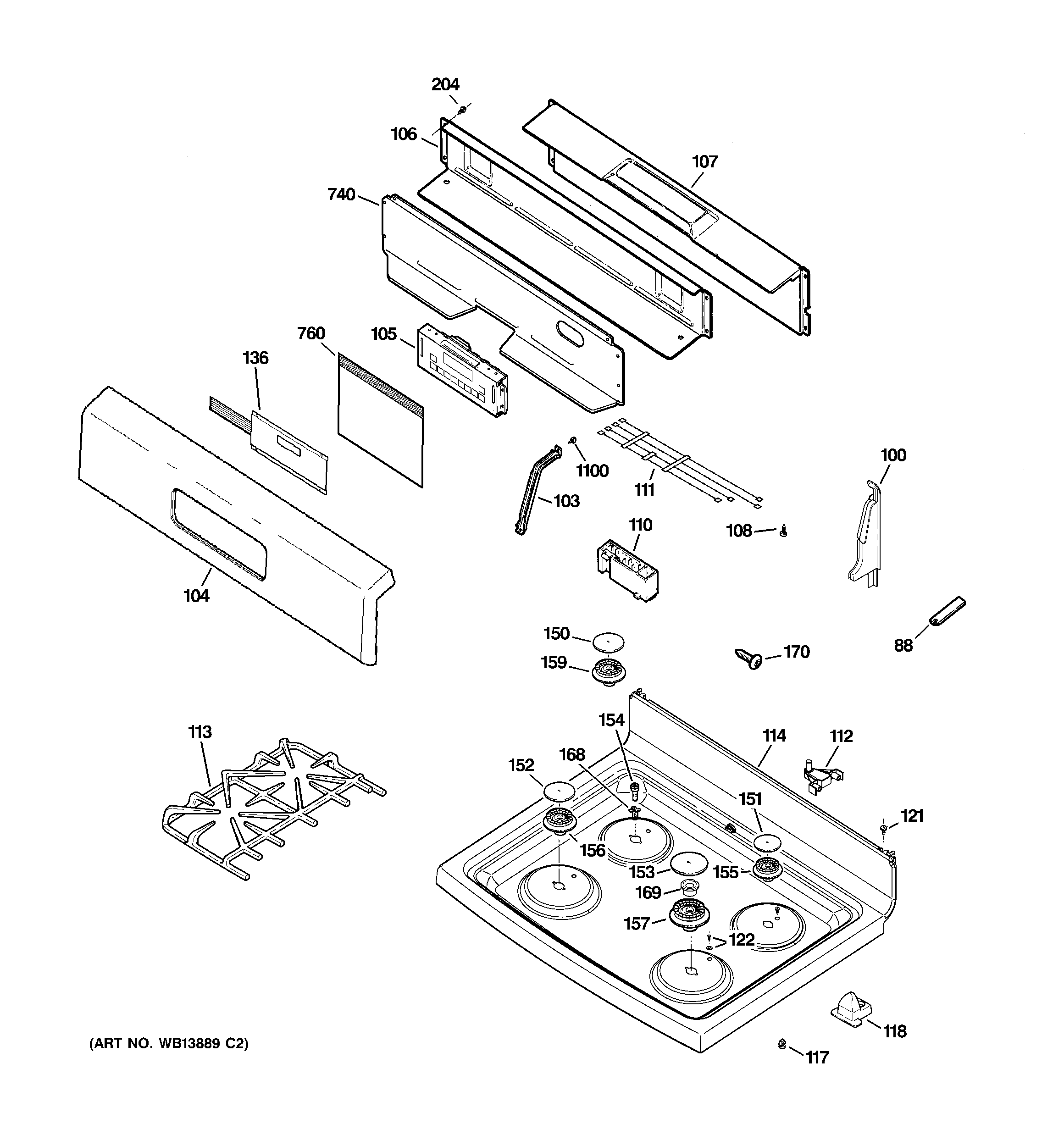

J2BP85WEL3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
88GEN WB02K0085
88GEN WB02K0062
100WB07K10209 GE Oven End Support
100END SUPPORT LEFT
100END SUPPORT RIGHT
100END SUPPORT LF
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10611
104GEN WB36K10612
105GEN WB27T10666
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB01K10030 GE Screw Assembly
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111WB18K10035 GE Oven Wire Harness
112WB14K10003 GE Range Top Hinge
113GRATE CAST (DD) RT
113GRATE CAST (DD) LF
113GRATE CAST (DD) LF
113GRATE CAST (DD) RT
114GEN WB62K10091
114GEN WB62K10087
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10235
136GEN WB27K10236
150WB29K10001 GE Oven Burner Cap
150WB29K10004 GE Oven Gray Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151WB29K10009 GE Oven Burner Cap
152WB29K10007 GE Oven Burner Cap, Left
152WB29K10006 GE Oven Burner Cap
153GEN WB28K10223
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5716
170GEN WB01X5874
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
740GEN WB34K10073
760GEN WB35K10058
1100WB01T10016 GE Oven Screw 8-18 AB Hex
