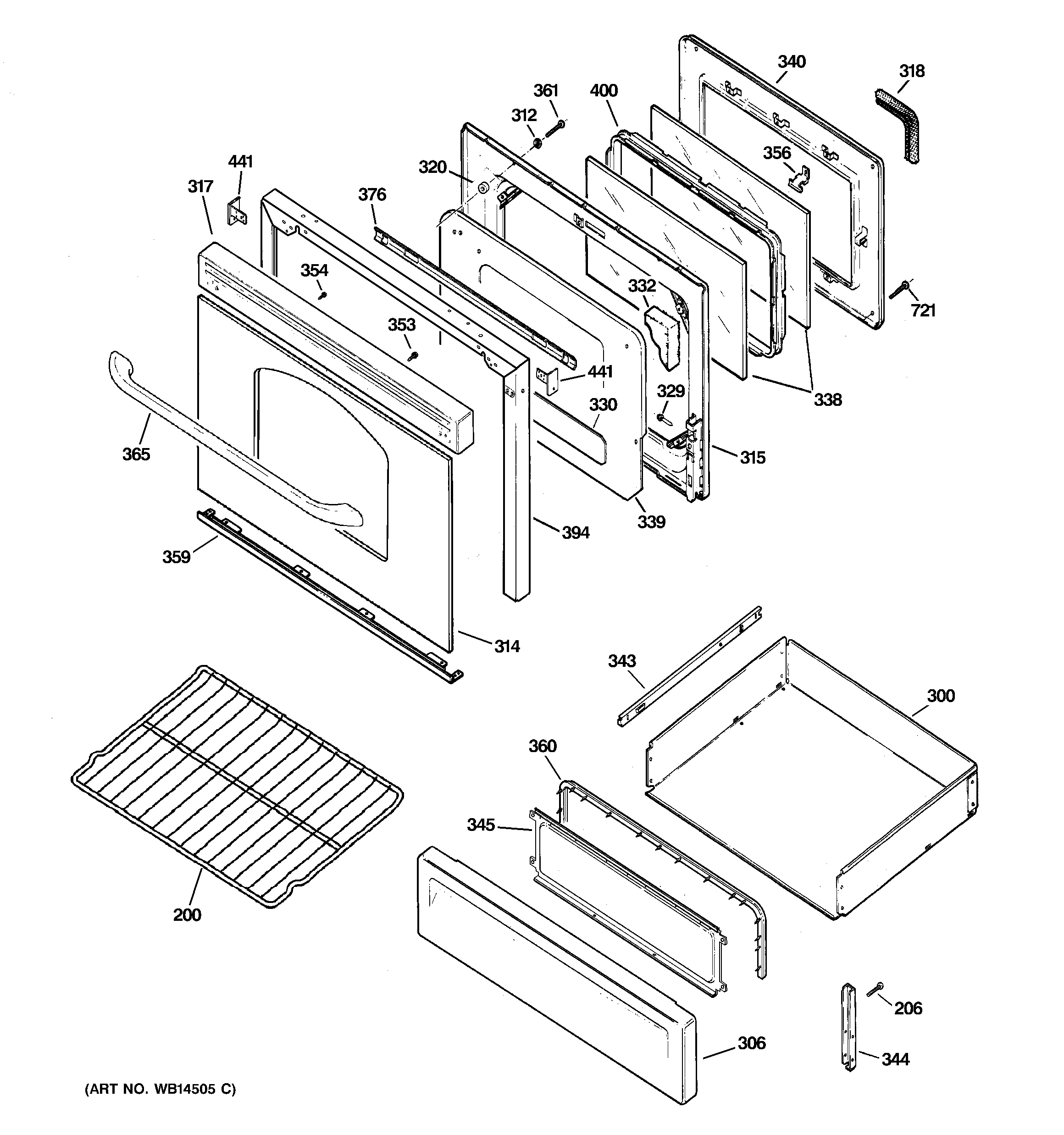

J2BP85WEL3WW DOOR & DRAWER PARTS

J2BP85WEL3WW DOOR & DRAWER PARTS

Written by

in

J2BP85WEL3WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
206WB01K10091 GE Oven Screw
300GEN WB58K10005
306WB55K10001 GE Oven Drawer Panel (Black)
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314WB57K10110 GE Oven Glass Door
314WB57K10109 GE Oven Glass Door
315GEN WB55K10034
317GEN WB07K0400
317WB35K10041 GE Oven Reflector
317WB7K403 GE Oven Top Door Trim
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343GUIDE- SLIDE DRAWER
344WB39K20 GE Oven Mounting Bracket Drawer
345CLIP WINDOW
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
354WB1K66 GE Screw
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
360GEN WB04K10001
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365HANDLE
365HANDLE BK DOOR
376WB35K23 GE Heater Deflector
394GEN WB07K10104
394GEN WB07K10103
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7181
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7182
441GEN WB07X7187
721WB1X536 GE Oven Screw
