J2C968SEK2SS COOKTOP

J2C968SEK2SS COOKTOP

Written by

in

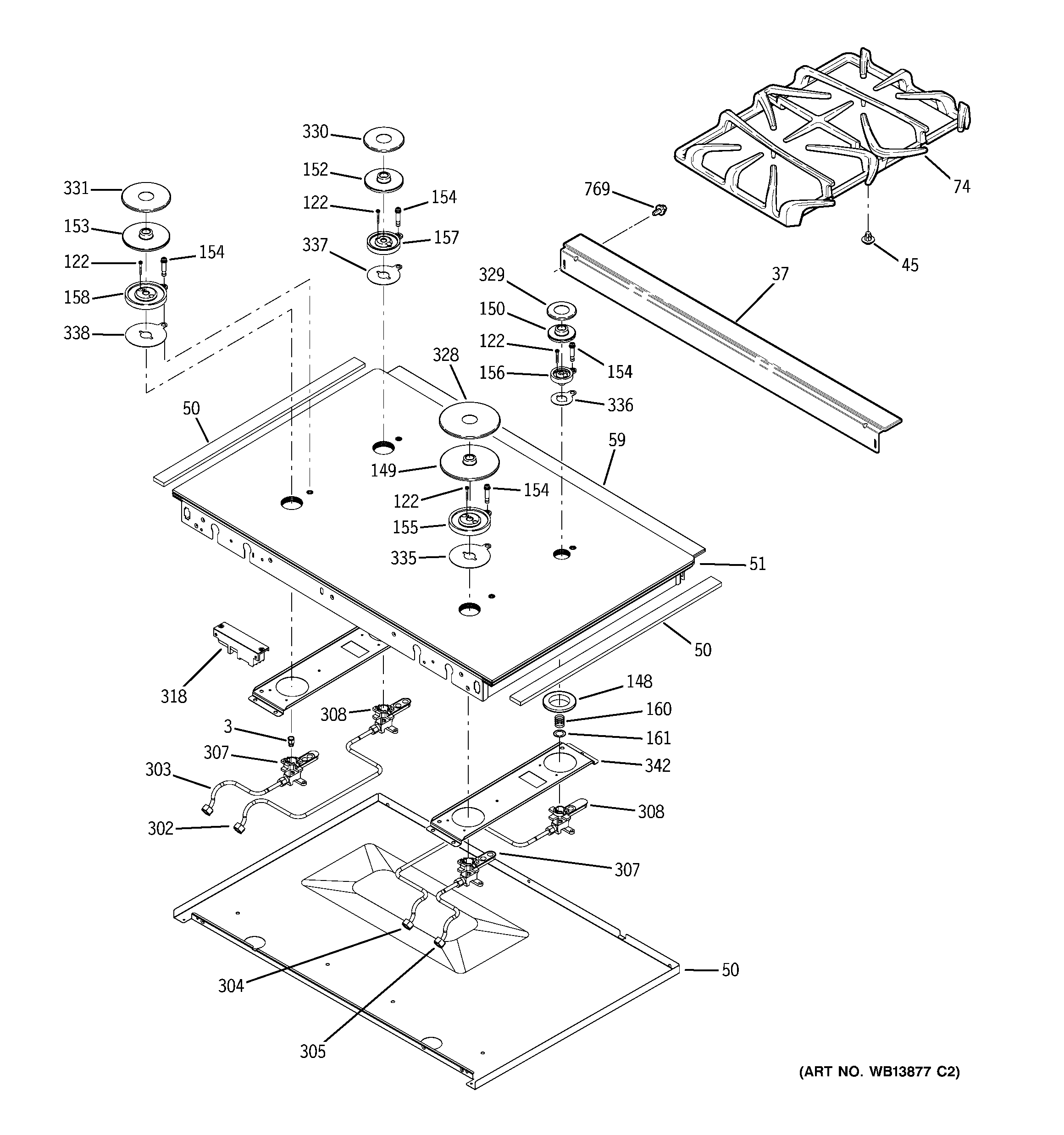

J2C968SEK2SS COOKTOP

Products

Position	Product
3	WB28K10288 GE Oven Orifice Spud
3	WB28T10011 GE Oven Spud Orifice
3	WB28T10014 GE Oven LT Front Orifice Spud
3	WB28T10015 GE Oven Natural Orifice Spud Assembly
3	WB28T10017 GE Oven Orifice Spud
3	WB28T10028 GE Oven Orifice Spud Assembly
3	WB28T10027 GE Oven Orifice Spud Right FR-NG
3	ORIFICE SPUD RT FRT -LP
37	BACKSPLASH FILLER-BLACK
45	WB02T10461 GE Oven Range Grate Foot
50	GEN WB64T10056
50	GEN WB02T10319
50	WB02T10320 GE Oven Left Hand Maintop Gasket
51	WB61T10140 GE Oven Maintop Glass Assembly Black
59	WB02T10511 GE Oven Outer Gasket
74	GEN WB31T10122
122	WB57T10233 GE Oven Inner Door Glass
148	GEN WB04K10005
148	GEN WB04K10004
149	WB16T10037 GE Oven Head Burner
150	WB16T10034 GE Oven Range Surface Burner Cap
152	GEN WB16T10035
153	GEN WB16T10036
154	WB13T10073 GE Oven Igniter
155	WB16T10032 GE Oven Front Base Burner
156	WB16T10031 GE Oven Small Burner Base
157	WB16T10030 GE Oven Medium Base Burner
158	WB24T10079 GE Oven Limit Switch
158	WB16T10033 GE Oven Large Base Burner
160	WB09T10010 GE Spring
161	GEN WB02T10304
302	GEN WB28T10087
303	GEN WB28T10085
304	GEN WB28T10088
305	GEN WB28T10086
307	BURNER INJET ASM
307	ORIFICE HOLDER BKT LARGE
308	BURNER HOLDER BKT SMALL
308	GEN WB28T10029
318	SPARK MODULE
328	WB13T10063 GE Oven Burner Cap D (BK)
329	WB13T10060 GE Oven Burner Cap H (BK)
330	WB13T10061 GE Oven Burner Cap B (BK)
331	WB13T10062 GE Oven Burner Cap C (BK)
335	BURNER GASKET D
336	GEN WB16T10011
337	GEN WB04T10011
338	WB56T10105 GE Oven Inner Window Assembly
338	WB04T10012 GE Oven Burner Gasket
342	GEN WB02T10182
769	WB1X500D GE Oven Screw Package
