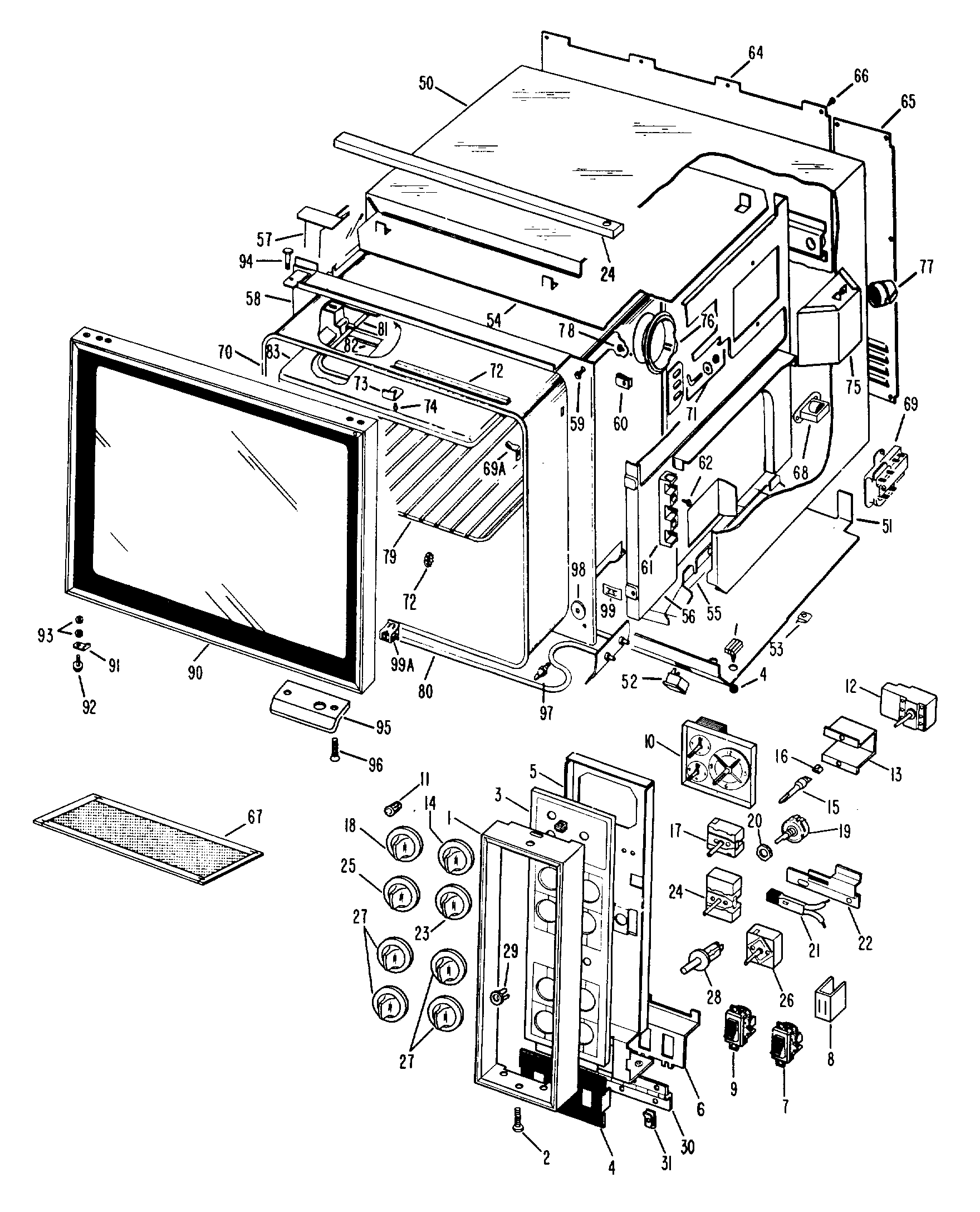

J765*01 CONTROL PARTS

J765*01 CONTROL PARTS

Written by

in

J765*01 CONTROL PARTS

Products

PositionProduct
1TRIM – CONTROL
1SPEEDNUT
3GEN WB36X0432
4SWITCH TRIM
5GEN WB02X2995
6SWITCH BRACKET
7WB1X5364 GE Oven Mounting Screw
7SWITCH, LAMPS
8GEN WB02X3008
9SWITCH, FAN
10GEN WB19X0123
10NUT
11GEN WB03X0218
12GEN WB02X1422
12THERMOSTAT – UPPER OVEN
13GEN WB02X2997
13SCREW MTG. THERMOSTAT
15SHAFT EXTENSION-UPPER OV
16CLIP SPRING
17SWITCH, OVEN-UPPER
18GEN WB03X0367
19GEN WB24X0156
20GEN WB01X0443
21NEON LAMP – 240V
22BRACKET – LAMP
23KNOB – RHEOSTAT
24GEN WB22X0080
24SCR 8/32 TF FLR 5/16 S
25KNOB – SWITCH
26WB21X36771 GE Surface Element Switch
26SCR 8-32 M PHR 3/16 S
27NEON LAMP 118V
27GEN WB03X0368
28SWITCH, LATCH RELEASE
29TRIM SWITCH
30GEN WB14X0039
31GEN WB01X0543
31SCREW MT. BAFFLE
31GEN WZ04X0237
50GEN WB56X1152
50CASE SIDE RH-AV
50GEN WB56X1149
50GEN WB56X1150
50GEN WB56X1153
50GEN WB56X1146
50ANGLE BRACE
50GEN WB56X1151
50GEN WB56X1148
51GEN WB55X0350
52GEN WB08X0192
52GEN WB08X0193
53SPEEDNUT
54GUARD TOP INSULATION
54GEN WB02X1561
55INSULATION GUARD-LOWER
56INSULATION GUARD
57GEN WB49X0179
58GEN WB56X1054
59GEN WZ05X0120
60GEN WB02X2998
61BLOCK TERM DISTRIBUTION
62GEN WZ04X0344
63SPEEDNUT
63GEN WB07X0776
64COVER BACK
65INSTRUMENT COVER
67GEN WB02X1666
67GEN WB02X1665
68GEN WB20X0044
69GEN WB21X0180
69CLIP CAP TUBE
70GEN WB53X0217
70GEN WB02X1511
71GEN WB09X0046
72GASKET SILICONE UP OVEN
73GEN WB02X2952
74SCR 6-20 BT PHR 3/8 S
75OV LAMP SHIELD
76OV LAMP LENS
77GEN WB08X0191
78WZ4X245D GE Screw Package
78WB1X119D GE Oven Range Washer
79GEN WB48X0076
80WB44X195 GE Oven Bake Unit
81BROIL UNIT-UPPER OVEN
82WZ4X345D GE Screw Package 12 C92
82BROIL SUPPORT
83GEN WB49
100GEN WB63X5175
100GEN WB63X5176
100BODY, – WH
100GEN WB63X5177
101GEN WB49X5089
102GEN WB02X6186
103BODY VENT
104RECEPTACLE FUSE
105SCR 8-18 B RDR 3/16 S
105GEN WB02X2511
106GEN WB24X5047
107GEN WB63X5178
108GUARD UPPER LH
108GUARD UPPER RH
110GEN WB49X5092
111BROILER PAN RACK
112GEN WB02X6187
113GEN WB49X5094
114GEN WB02X6188
114GEN WB02X6189
116GEN WB49X5095
117TERM. BLOCK – DISTR.
118SCR 10-16 B SL 1-1/8 S
118WB17X5095 GE Black Oven Terminal
119GEN WB02X6190
120SCREW MTG. RECEPT.
120MOTOR
121WR60X114 GE Refrigerator Evaporator Motor Fan Blade
121GEN WB02X2285
123BRACKET KNOCKOUT
125GEN WB24X0160
126GEN WB02X2826
127GEN WB02X2827
128GEN WB56X5495
129GUIDE DRAWER LH
131SLIDE GUIDE
132HOOK DOOR SPRING
133SPRING DOOR
134GEN WB01X0419
134GEN WB10X5091
134GEN WB10X5090
135GEN WB02X6342
139HINGE LEVER ASM RH & LH
140GEN WB02X6195
141RING RETAINING
144CLAMP, HARNESS
144PLATE GROUND
146GEN WB02X6198
147GEN WB02X6199
148GEN WB49X5096
149GEN WB02X6200
200GEN WB07X0552
201LATCH
202WZ2X464D GE Screw
204GEN WB15X5101
205GEN WB03X0322
206RETAINER KNOB
207SCREW & WASHER ASM
208GEN WB02X6212
210GEN WB02X6213
211BRACKET MOUNTING
211GEN WZ04X0289
211WB1X536 GE Oven Screw
212LOCKING LEVER
213SCREW BEARING
214GEN WB02X2824
215SCREW, MTG. COIL
215SOLENOID
217GEN WB24X0131
218BARRIER SWITCH
219SWITCH, LATCH (SLIDE)
220GEN WB02X2033
221GEN WB02X2034
221SCREW, MTG. SWITCH
222CLAMP HARNESS
251GEN WB07X0972
251GEN WB07X0973
251SCR 8-32 T HXW 7/8 S
252TRIM COOKTOP RH
252GEN WB07
