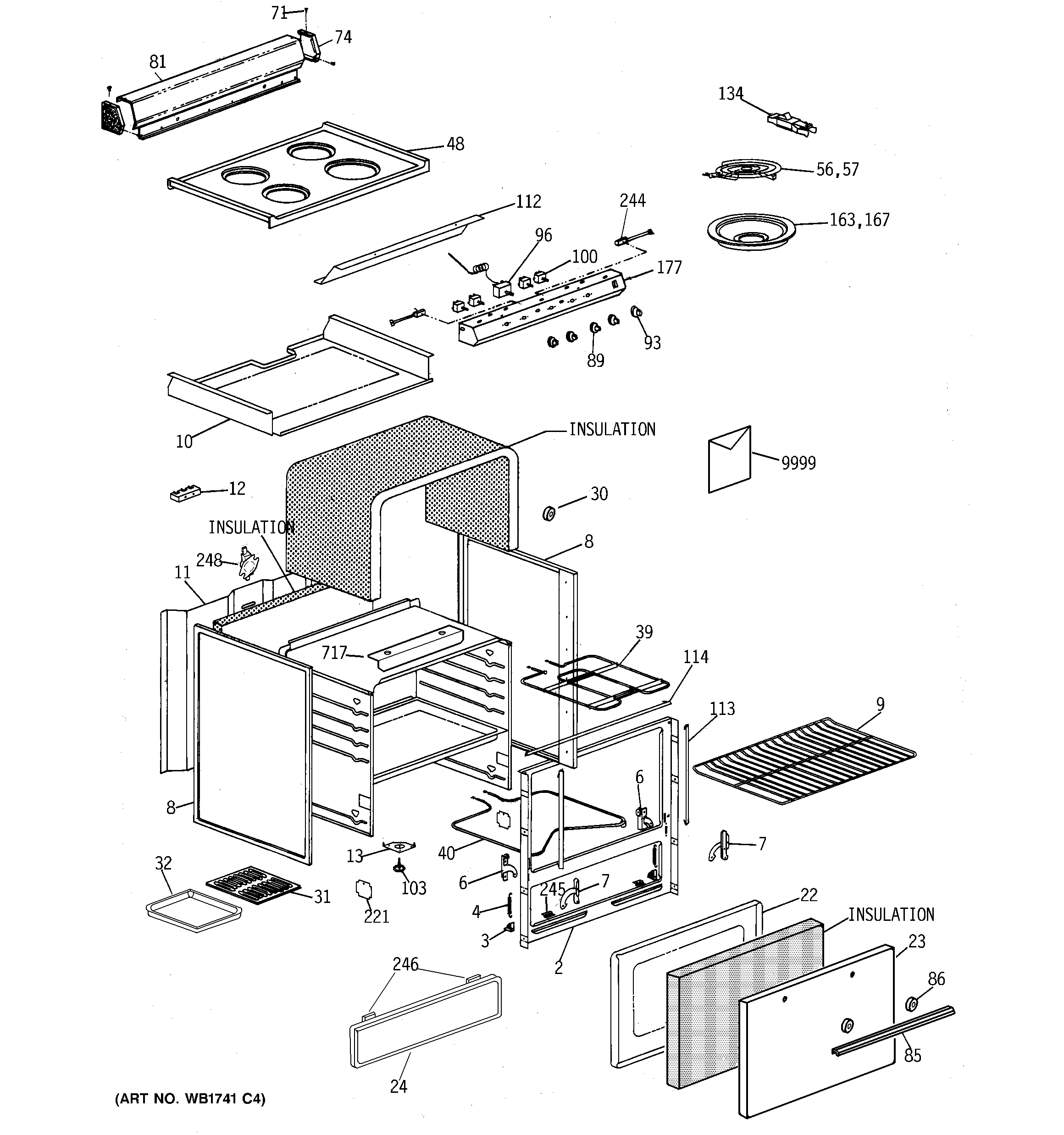

JAS02*R3 RANGE PARTS

Products

Position	Product
2	GEN WB56X7004
3	GEN WB02X7894
4	GEN WB02X7893
6	HINGE PLATE ASM.
7	GEN WB10X5204
8	SIDE, PANEL AD
8	SIDE, PANEL WH
9	GEN WB48X5094
10	GEN WB49X5515
11	MAIN BACK
12	GEN WB17X5112
13	GEN WB02X7895
22	LINING, OVEN DOOR
23	GEN WB56X7005
23	GEN WB56X7009
24	GEN WB56X7047
24	GEN WB56X7048
30	NYLON SPACER,TOP LOCATOR
31	GEN WB48X5095
32	GEN WB49X5468
39	GEN WB44X5093
40	WB44X5094 GE Oven Bake Element
48	GEN WB62X5369
48	GEN WB62X5370
56	WB30X254 GE Oven 6" Burner Unit 1250W 240V
57	WB30X253 GE Oven Burner Surface Unit Element 8" 2100W Black Medallion
71	GEN WB01X5790
74	GEN WB07X7040
74	GEN WB07X7041
81	GEN WB07X7043
81	GEN WB07X7045
85	GEN WB15X5185
86	SPACER HANDLE
89	GEN WB03X5746
93	KNOB SURFACE UNIT 8"
96	GEN WB24X5285
100	WB21X5348 GE Oven 6" 1400W Switch
100	WB21X5349 GE Oven 8" 2100W Switch
103	GEN WB01X5789
112	GEN WB02X7896
113	GEN WB02X7891
114	GEN WB02X7892
134	WB18X30954 GE Oven Receptacle Clip
163	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
167	WB32X106 GE Oven 8" Chrome Drip Bowl
177	GEN WB07X7042
177	GEN WB07X7047
221	COVER, SPRING
244	GEN WB02X7966
245	GEN WB02X7898
246	GEN WB02X7899
248	GEN WB21X5262
717	THERMO-BULB SHIELD
9999	GEN WB02X8198
