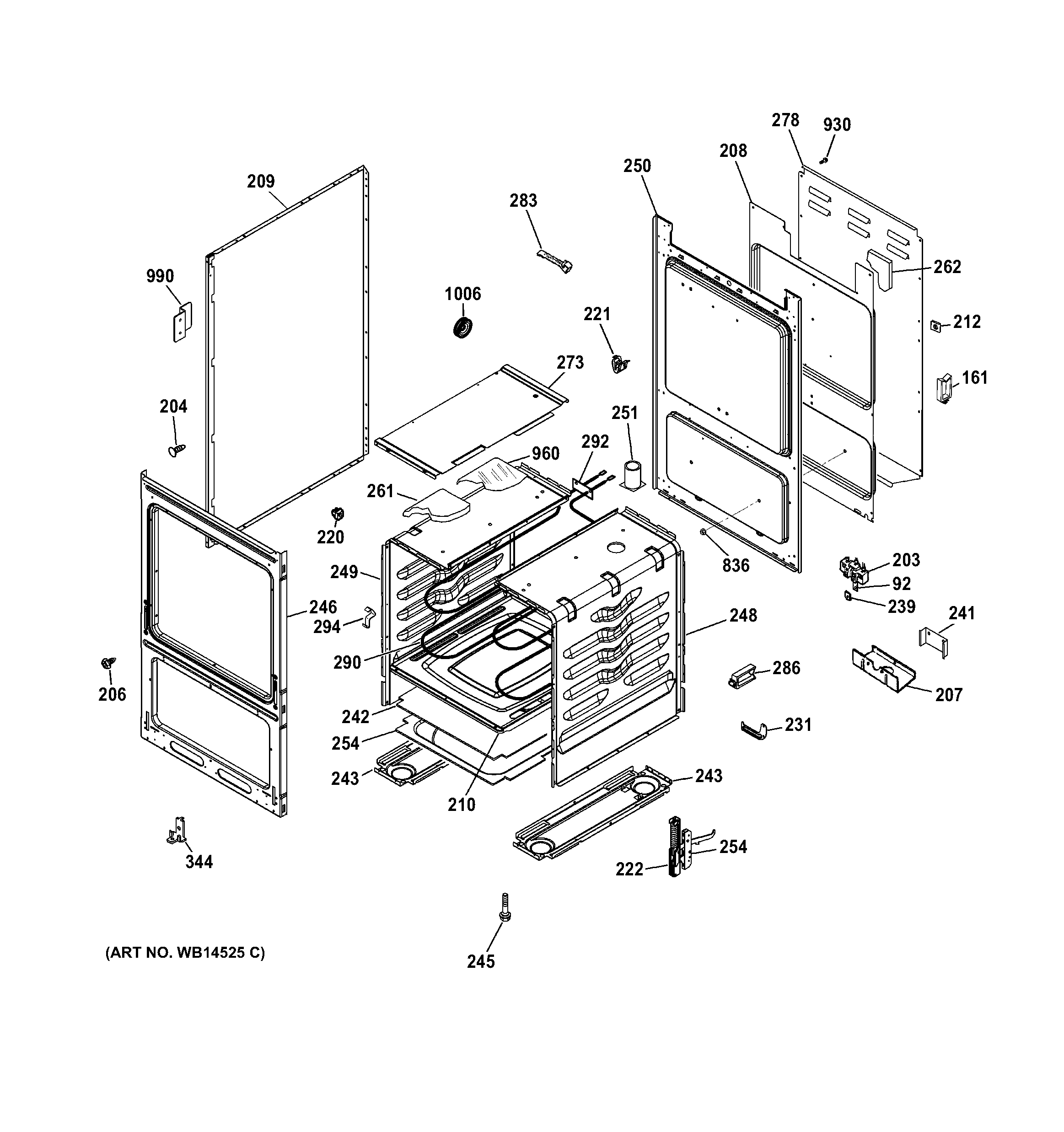

JAS02SN1SS BODY PARTS

JAS02SN1SS BODY PARTS

Written by

in

JAS02SN1SS BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
161GEN WB02X7066
203WB10K10021 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10165
209WB63K10158 GE Side Panel
210WB63K10084 GE Oven Bottom
212WB01K10093 GE Oven Speednut
220WB02K10188 GE Oven Grommet
221WB02K10073 GE Oven Clip Capillary
222WB10K10011 GE Oven Door Hinge Assembly
231WB2K20 GE Oven Bracket Assembly
239PLATE GROUND
241GEN WB63K10104
242GEN WB63K10085
243BASE SUPPORT
245WB02K10126 GE Oven Level Screw
246WB63K10157 GE Frame Front 24
248WB63K10081 GE Oven Side
249WB63K10076 GE Oven Side
250GEN WB63K10164
251WB38K10013 GE Vent Tube
254WB10K10003 GE Oven Hinge Receptacle
261GEN WB35K10117
262GEN WB35K10123
273GEN WB53K10023
278WB34K10100 GE Back Cover
283WB02X21679 GE Oven Wire Clip
290WB44K10019 GE Oven Bake Heater
292WB44K10028 GE Oven Broil Heater Assembly
294WB2X9719 GE Oven Support Bracket Clip
836GEN WB01K10051
930WB01K10052 GE Screw
960GEN WB35K10076
990GEN WB02K10183
1006GEN WB02K10190
