JAS640RM1SS CONTROL PANEL & COOKTOP

JAS640RM1SS CONTROL PANEL & COOKTOP

Written by

in

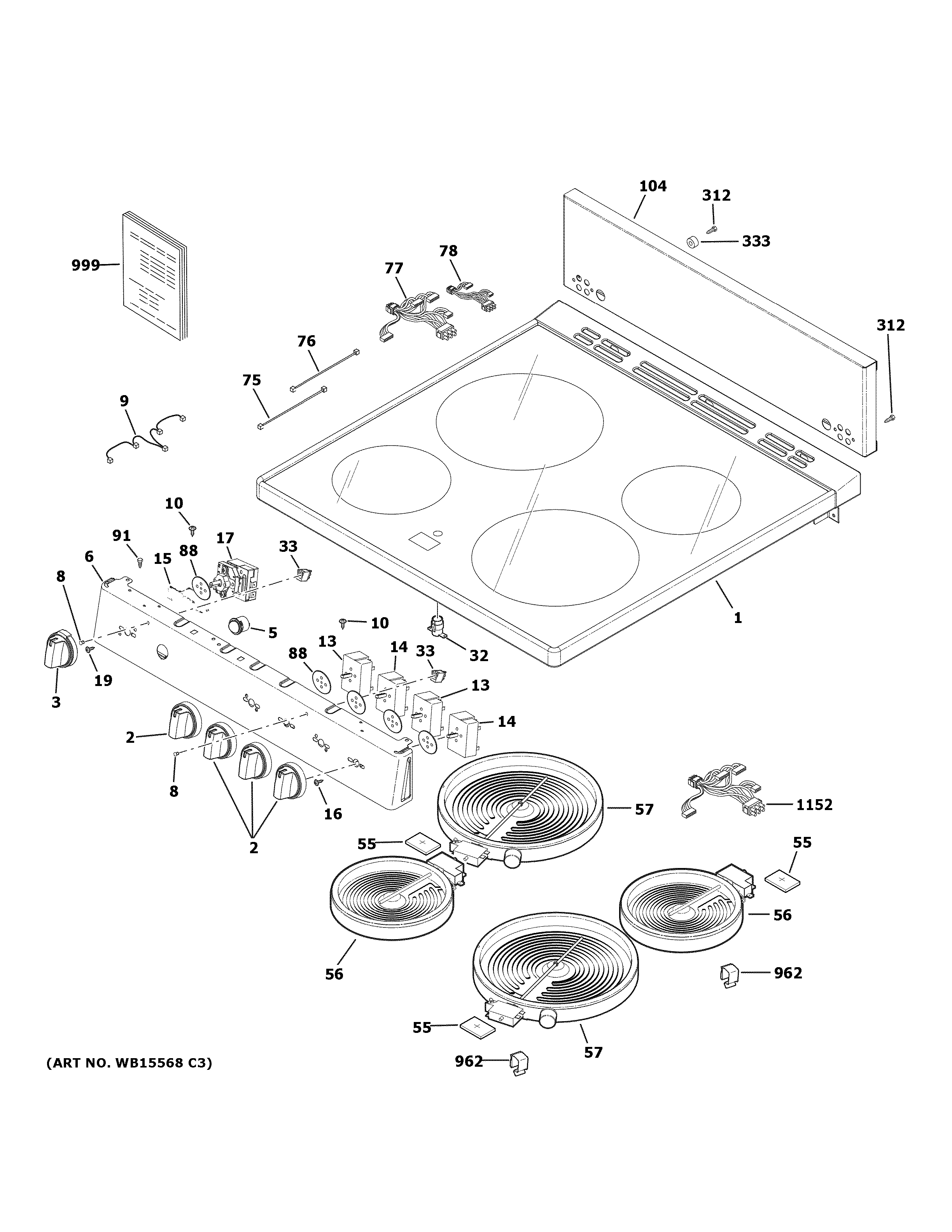

JAS640RM1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X30917 GE Range Top Glass Assembly
2WB03X30928 GE Knob
3WB03X30927 GE Knob Assembly
5WB24X31927 GE Switch
6MANIFOLD PANEL
8WB25K10009 GE Oven Lens
9HARNESS PILOT
10WB01T10009 GE Screw 10-16 Shoulder Type A
13WB24X31917 GE Oven Infinite Switch
14WB24X31928 GE Infinite Switch
15COVER THERMOSTAT
16WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
17WB24X21192 GE Oven Electric Thermostat
19WB1K8 GE Oven Thermostat Screw
32WB27T10668 GE Oven Light Indicator
33WB25K10010 GE Oven Light Indicator Pilot
55WB02X35325 GE Radiant Element Pad
56WB30X30921 GE Halogen Element and Pad Assembly
57WB30X30934 GE Element Haliant & Pad Assembly
75HARNESS GROUND
76WB18X30895 GE Ground Harness
77WB18X30893 GE Main Harness
78HARNESS COOKTOP
88SEAL VALVE
91WB1X1261 GE Oven Screw
104WB36X30951 GE Range Backguard
312WB01K10091 GE Oven Screw
333WB01K10020 GE Oven Handle Spacer
962WB09X40389 GE Radiant Element Spring
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
1152HARNESS INFINITE
