JAS640RM4SS BODY PARTS

JAS640RM4SS BODY PARTS

Written by

in

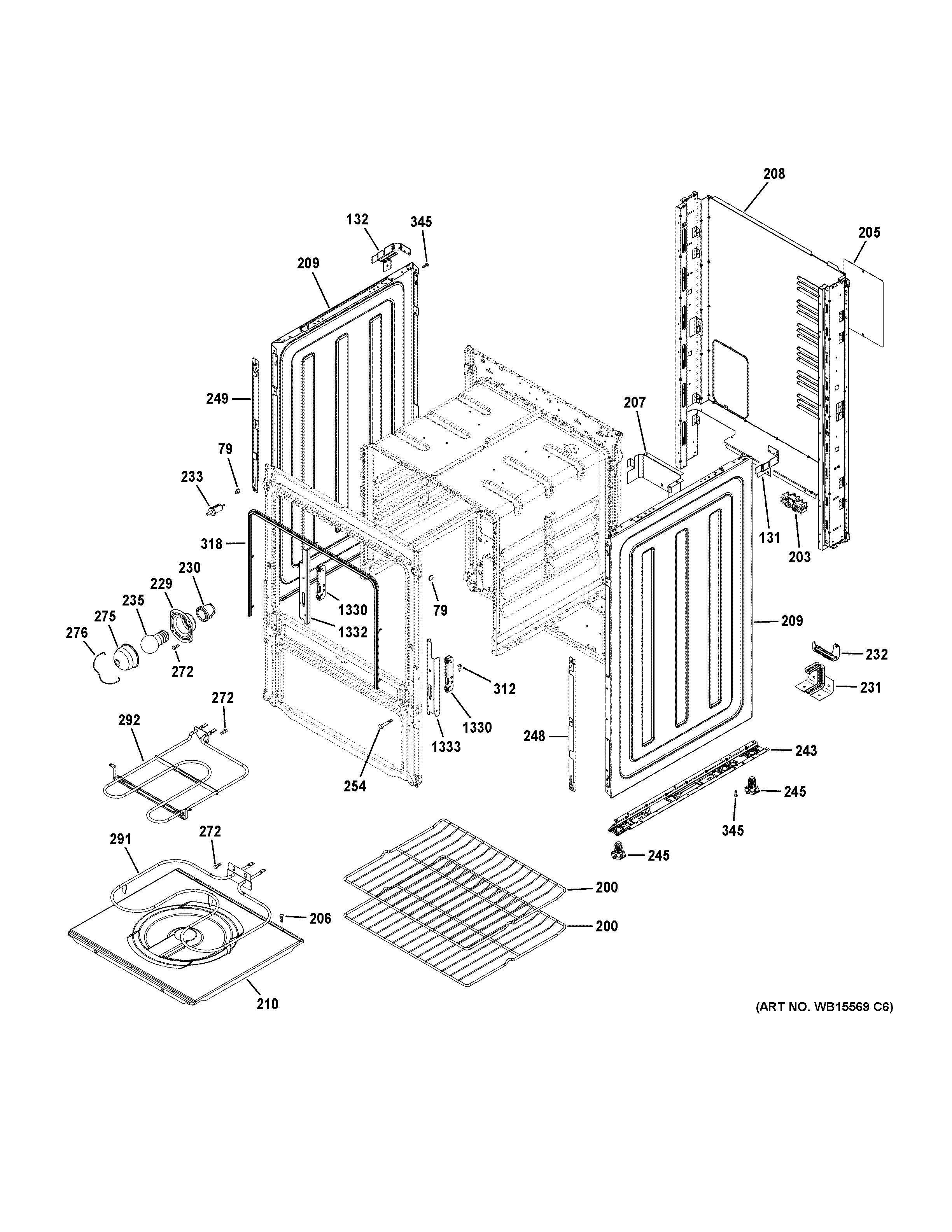

JAS640RM4SS BODY PARTS

Products

PositionProduct
79SPACER SIDE
131BRACKET COOKTOP
132BRACKET COOKTOP
200WB48X30918 GE Oven Rack
203WB18X40708 GE Terminal Block Assembly
205TABLET COVER
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
207COVER KNOCKOUT
208COVER BACK
209BLACK PANEL SIDE AND FOIL
210WB63X30922 GE Oven Bottom Cover
229WB08K10010 GE Receptacle Housing
230WB08T10026 GE Range Push-In Receptacle
231WB37X30912 GE Refrigerator Anti-Tip Bracket Assembly
232WB02K10124 GE Oven Anti-Tip Arm
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
243WB37X30907 GE Base Support
245WB02X31920 GE Appliance Foot Leveling
248TRIM PANEL SIDE RIGHT
249TRIM PANEL SIDE LEFT
254WB01X30980 GE Screw
272WZ4X345D GE Screw Package 12 C92
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
291HEATER BAKE
292HEATER & SUPPORT BROIL ASM
312WB01K10091 GE Oven Screw
318WB35X45637 GE Frame Gasket
345WB1K5062 GE Oven Screw
1330WB10X31976 GE Receiver Hinge
1332WB10X30947 GE Left Hand Gusset Hinge
1333WB10X30946 GE Right Hand Hinge Gusset
