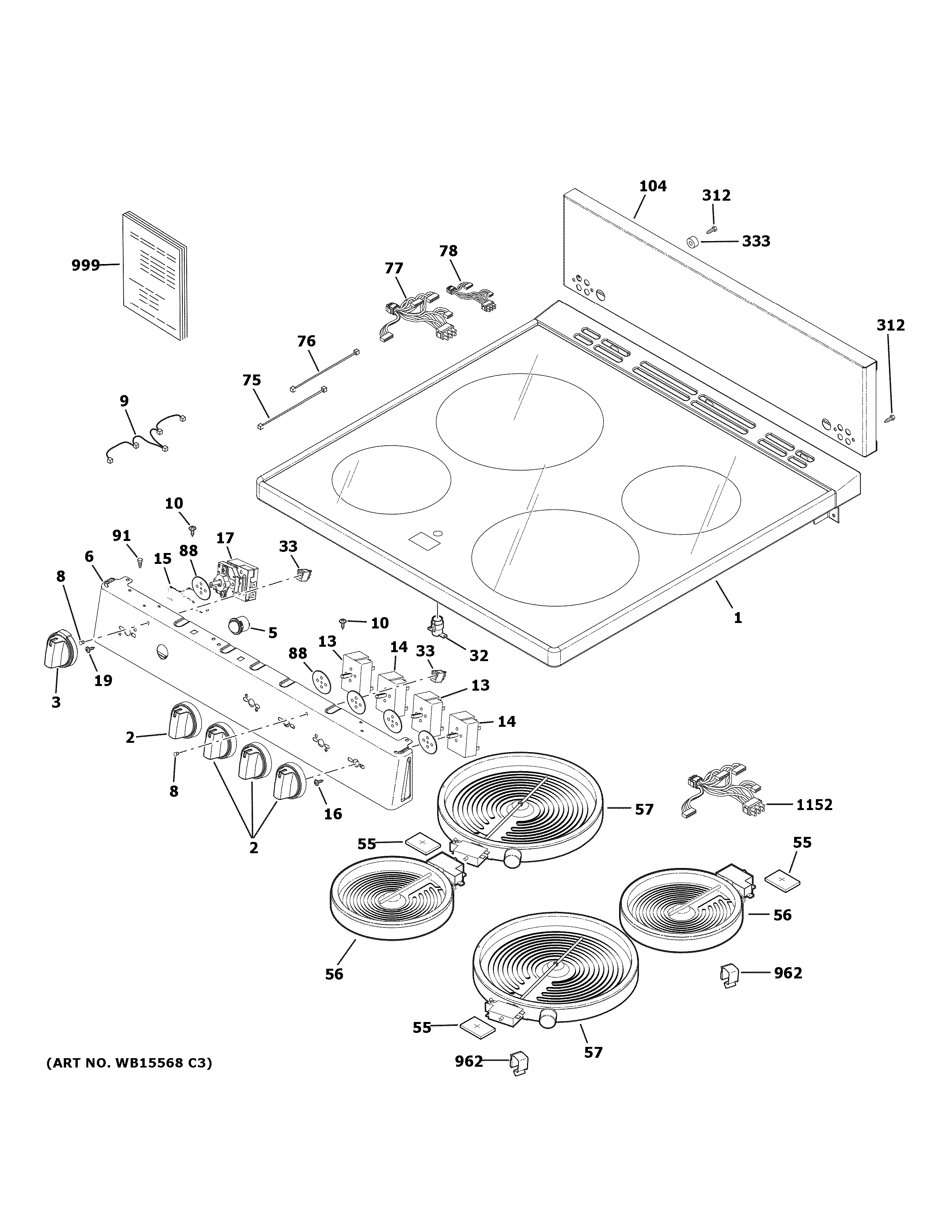

JAS640RM4SS CONTROL PANEL & COOKTOPadmin2025-04-26T08:45:51+00:00JAS640RM4SS CONTROL PANEL & COOKTOP ProductsPositionProduct1WB62X30917 GE Range Top Glass Assembly2WB03X30928 GE Knob3WB03X30927 GE Knob Assembly5WB24X31927 GE Switch6MANIFOLD PANEL8WB25K10009 GE Oven Lens9HARNESS PILOT10WB01T10009 GE Screw 10-16 Shoulder Type A13WB24X31917 GE Oven Infinite Switch14WB24X31928 GE Infinite Switch15COVER THERMOSTAT16WB01X23501 GE Oven Screw 8-32 Tapping Flat Head17WB24X21192 GE Oven Electric Thermostat19WB1K8 GE Oven Thermostat Screw32WB27T10668 GE Oven Light Indicator33WB25K10010 GE Oven Light Indicator Pilot55WB02X35325 GE Radiant Element Pad56WB30T10145 GE Oven Radiant Surface Element57WB30X26465 GE Oven 8" Halogen Element75HARNESS GROUND76WB18X30895 GE Ground Harness77WB18X30893 GE Main Harness78WB18X35327 GE Cooktop Harness88SEAL VALVE91WB1X1261 GE Oven Screw104WB36X30951 GE Range Backguard312WB01K10091 GE Oven Screw333WB01K10020 GE Oven Handle Spacer962WB09X40389 GE Radiant Element Spring999PM QUICK OWNERS MANUAL999PM OWNERS MANUAL999PM MINI MANUAL AND WIRING999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS1152HARNESS INFINITE
