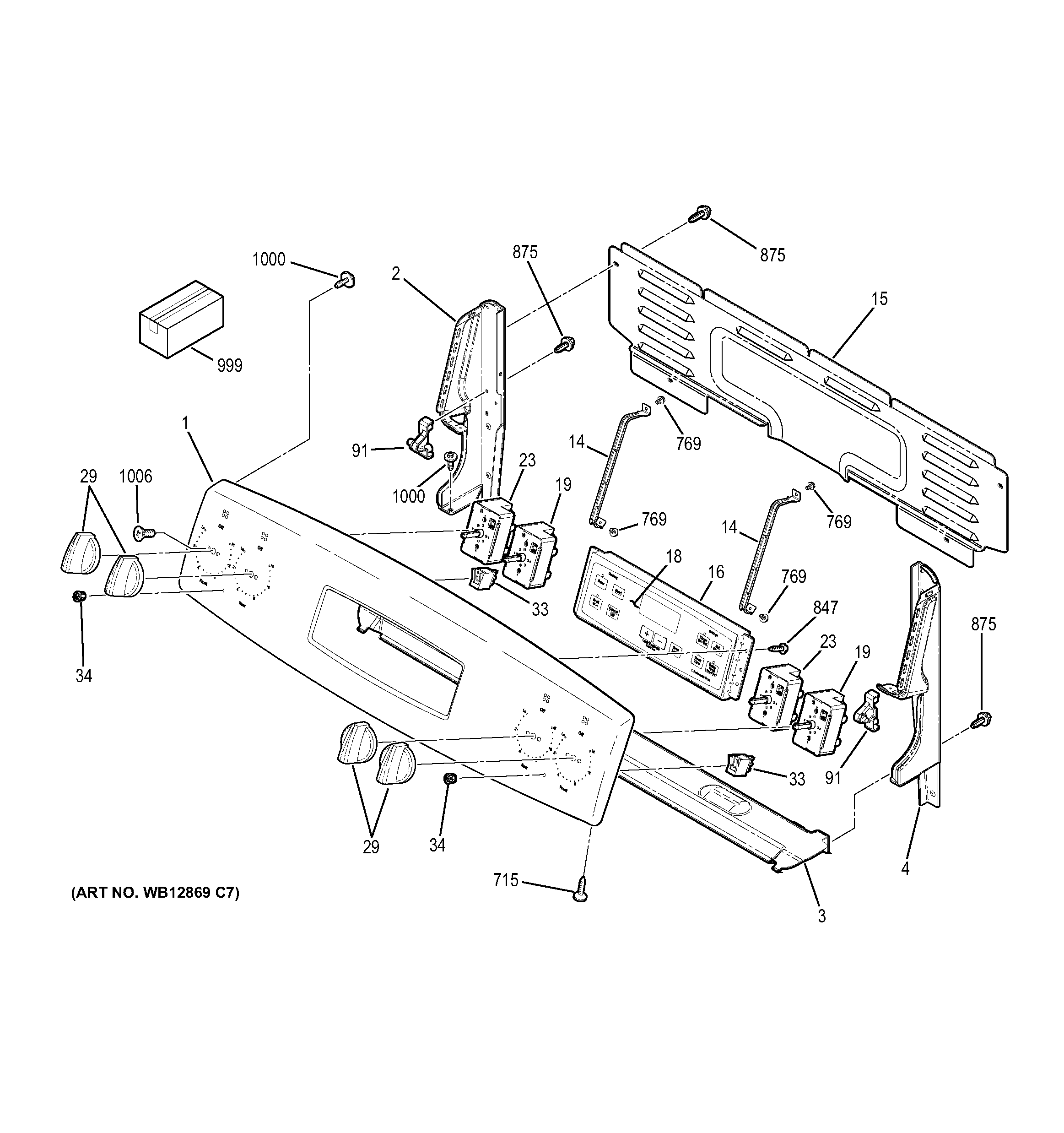

JB250DF2BB CONTROL PANEL

Products

Position	Product
1	GEN WB36T11385
1	GEN 229C6298P003
2	WB07X27823 GE End Plate LT (Black)
3	WB02X28994 GE Heat Shield
4	WB36T11204 GE Oven Right End Plate
14	WB34X20080 GE Control Bracket
15	COVER CONTROL
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11511 GE Oven Black Faceplate Graphics
19	WB24T10025 SWITCH INFIN(2500W)
23	WB24T10029 GE Oven Infinite Burner Switch
29	WB03T10332 GE Stove Burner Control Knob
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
715	WD2X432 GE Dishwasher Screw
769	WB1X500D GE Oven Screw Package
847	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875	WH2X930 GE Screw
999	GEN 49-80597
999	GEN 31-17120
999	GEN 31-10781
999	GEN 31-10816
999	INSTR INSTALL OVN DOOR
999	GEN 49-80700
1000	WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006	WB01T10053 GE Oven 8-32 TPT FLR Screw
