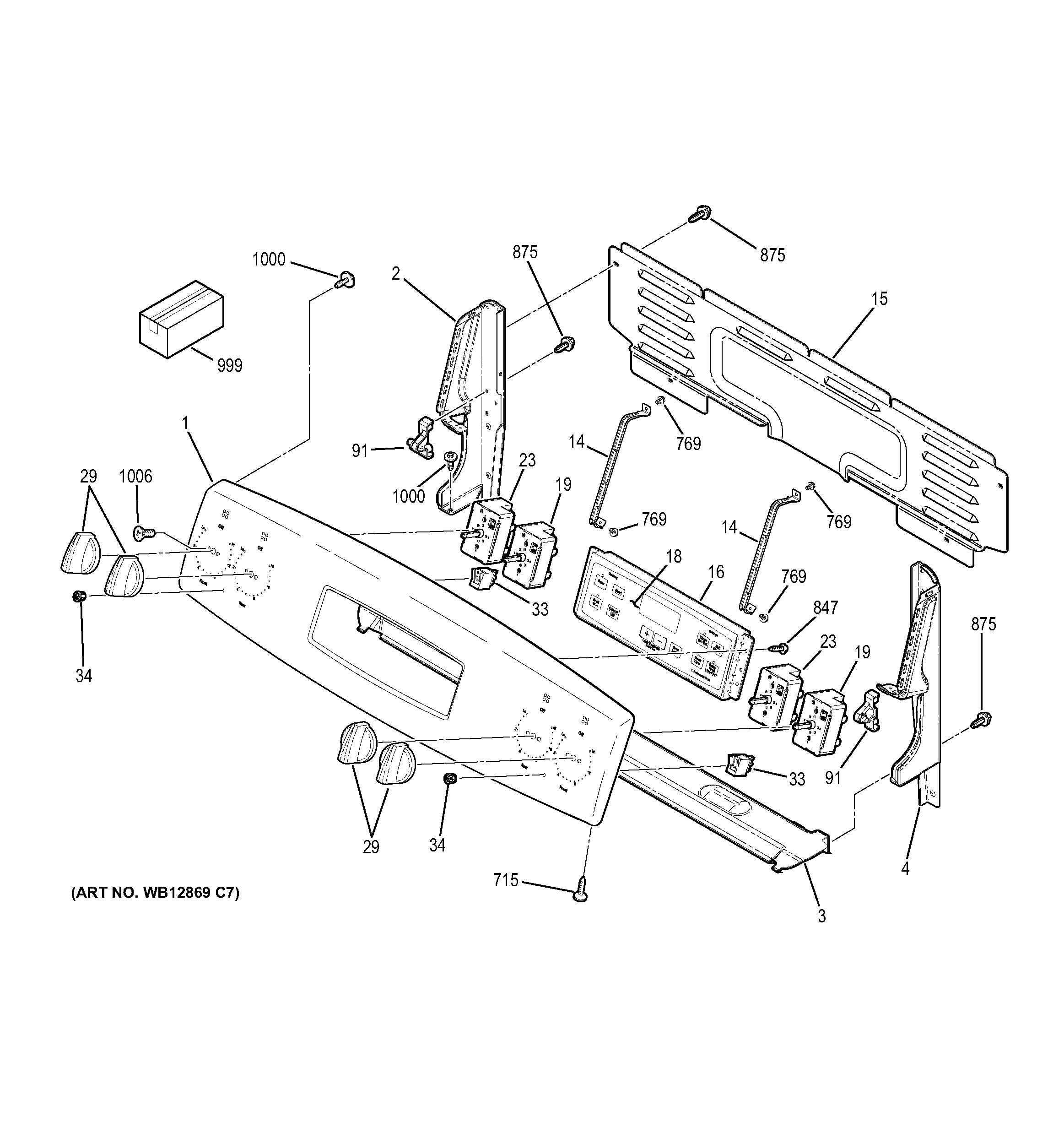

JB250GF1SA CONTROL PANEL

Products

Position	Product
1	WB36T11415 GE Oven Control Trim Assembly
1	LABEL WIRE DIAGRAM
2	WB07X27823 GE End Plate LT (Black)
3	WB02X20711 GE Oven Heat Shield Back Guard
4	WB36T11204 GE Oven Right End Plate
14	WB34X20080 GE Control Bracket
15	COVER CONTROL
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11511 GE Oven Black Faceplate Graphics
19	WB24T10025 SWITCH INFIN(2500W)
23	WB24T10029 GE Oven Infinite Burner Switch
29	WB03T10332 GE Stove Burner Control Knob
33	WB25K10010 GE Oven Light Indicator Pilot
34	WB25T10103 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
715	WD2X432 GE Dishwasher Screw
769	WB1X500D GE Oven Screw Package
847	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875	WH2X930 GE Screw
875	WZ4X245D GE Screw Package
999	GEN 49-80632
999	GEN 31-10816
999	GEN 31-14544
999	INSTR INSTALL OVN DOOR
999	GEN 31-10781
1000	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
1000	WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006	WB01T10053 GE Oven 8-32 TPT FLR Screw
