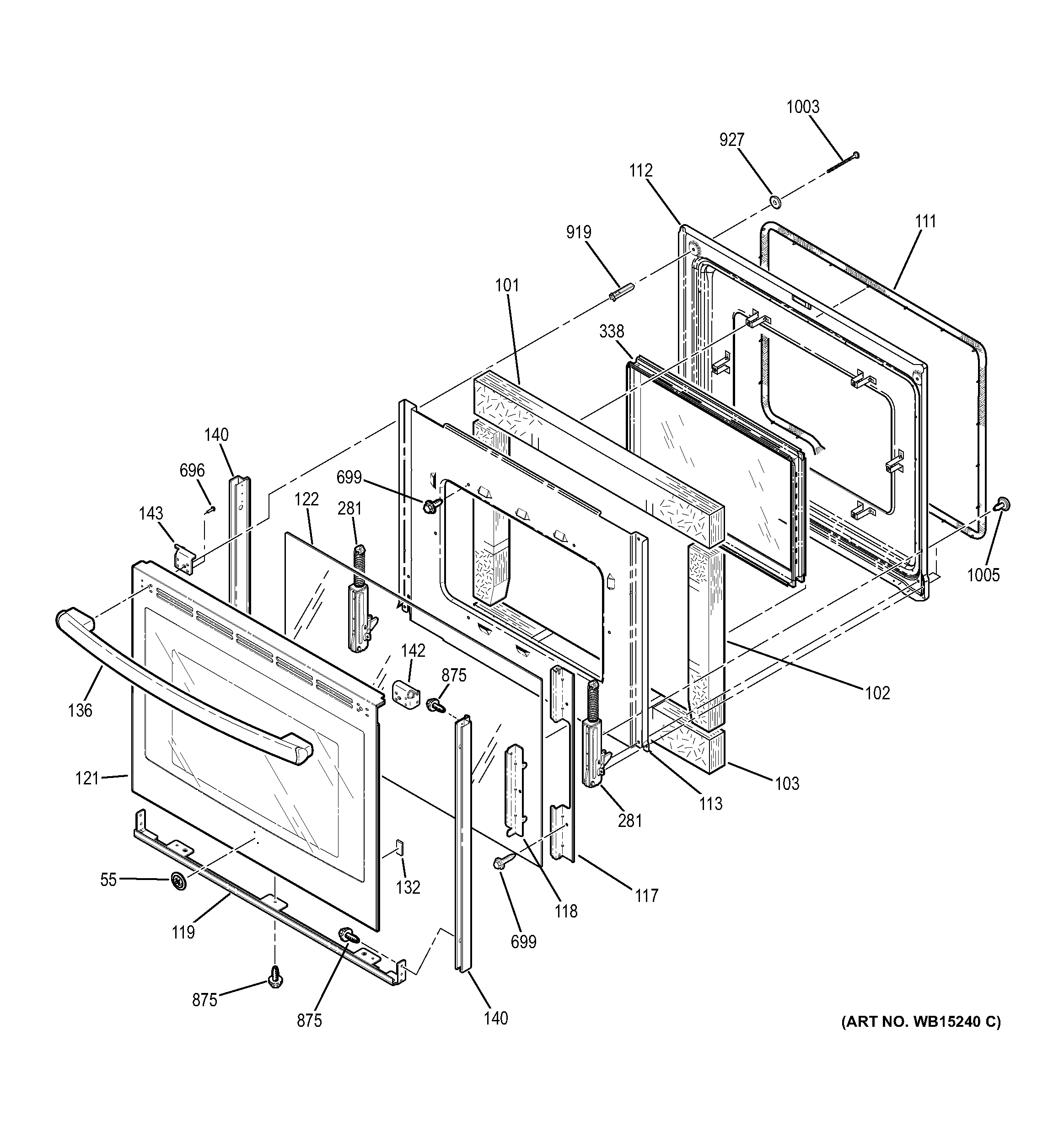

JB250GF1SA DOOR

Products

Position	Product
55	WB02T10589 GE Range Gray Nameplate Badge
101	WB35T10077 GE Oven Door Insulation
102	INSULATION DOOR
103	WB35T10255 GE Oven Insulation Door
111	GASKET OVEN
112	WB55T10200 GE Oven Door Liner Assembly (GY)
113	WB56T10178 GE Oven Door Insulation Retainer
117	WB56T10320 GE Oven Glass Door Retainer
118	WB56T10321 GE Oven Door Glass Retainer
119	TRIM OVN DR BTTM
121	PANEL DOOR OTR ASM (WM)
122	WB57K5230 GE Oven Inner Glass Door
132	WB01T10026 GE Oven Door Pad
136	WB15T10213 GE Oven Handle LE-BK
140	WB56T10287 GE Oven Door Side Frame (Black)
142	WB34X42027 GE Right Hand Door Trim Bracket
143	WB34X42670 GE Left Hand Door Handle Bracket
281	WB10T10143 GE Oven Hinge Assembly
338	WB56T10105 GE Oven Inner Window Assembly
696	WB01T10103 GE Oven Screw 10-16 AB HXW .532
696	WB1K5156 GE Oven Screw
699	WB1M1 GE Oven Screw
875	WZ4X245D GE Screw Package
875	WH2X930 GE Screw
919	SPACER
927	WB1X119D GE Oven Range Washer
1003	WB01T10067 GE Oven Screw 10-16 PL PNT
1005	WB01T10008 GE Oven Screw 10-32
