JB255RK3SS BODY PARTS

JB255RK3SS BODY PARTS

Written by

in

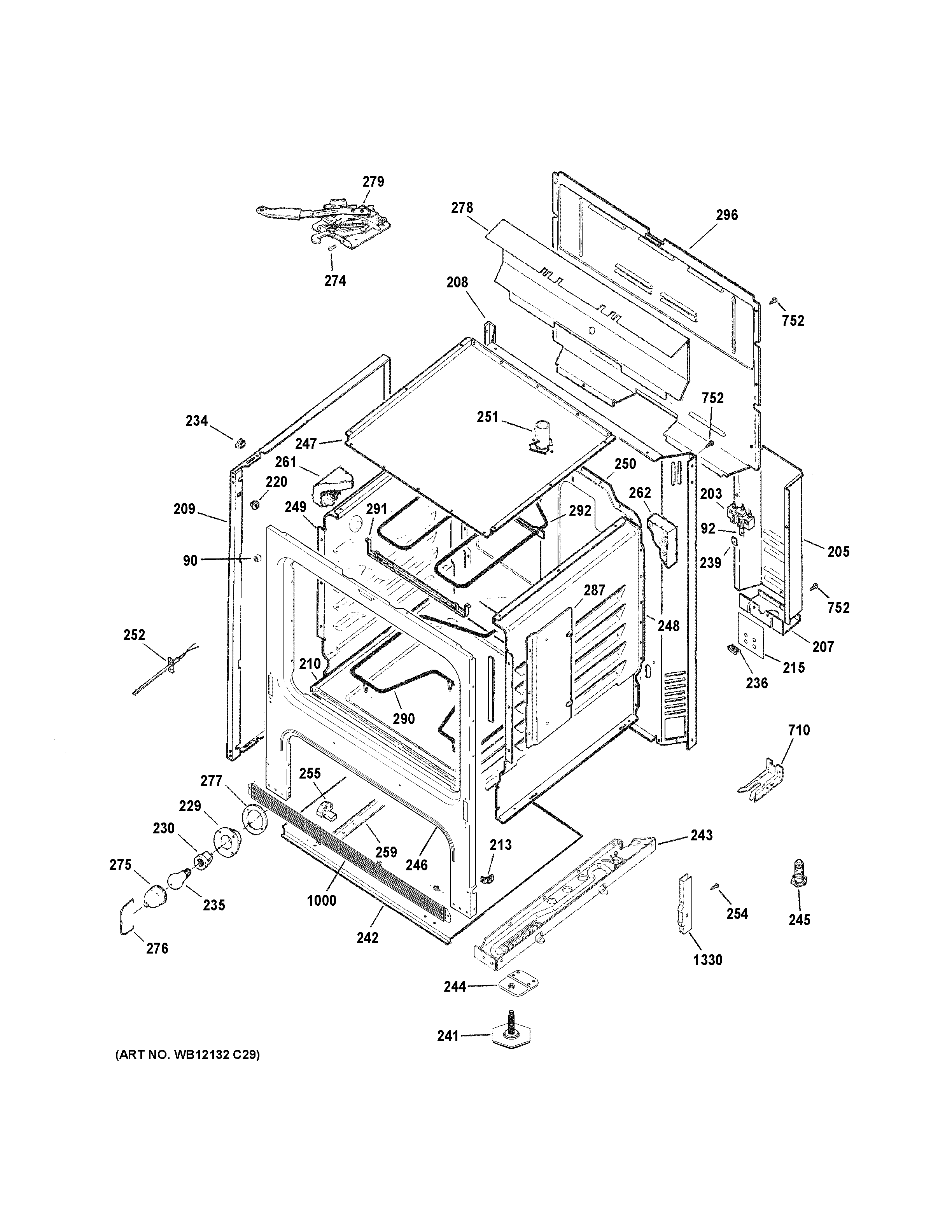

JB255RK3SS BODY PARTS

Products

PositionProduct
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
205WB34X21584 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208WB63K10273 GE Back
209WB56X29124 GE Oven Side Panel
210WB63K10105 GE Range Oven Bottom
213WB1K3 GE Oven Speed Nut
215FIBER GLASS
220GEN WB02K0008
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
239PLATE GROUND
241WB34X29134 GE Oven Base Bracket
242GUARD INSULATION BOTTOM
243WB63K10256 GE Oven Support Base
243SUPPORT BASE LEFT
244WB02X29030 GE Range Leveling Leg
245WB02K10182 GE Oven Leveling Leg
246WB63X21430 GE Assembly Frame Weld
247WB63K10021 GE Oven Top
248SIDE OVEN RT
249SIDE OVEN LF
250WB53K10007 GE Oven Back
251WB38K10016 GE Oven Vent Tube Assembly
252SENSOR ASM
254GEN WB01K0053
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
261WB35X27197 GE Oven Insulation Wrap
262WB35X27196 GE Oven Insulation Wrap
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278WB34X21602 GE Oven Divider Wiring
279WB02K10144 GE Oven Door Latch Assembly
287GUARD RADIATION
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34X21585 GE Back Cover
710WB02X27862 GE Oven Anti-Tip Bracket Assembly
752WB1X536 GE Oven Screw
1000WB34X24779 GE Front Frame Trim
1330WB10X20220 GE Oven Receiver Hinge
