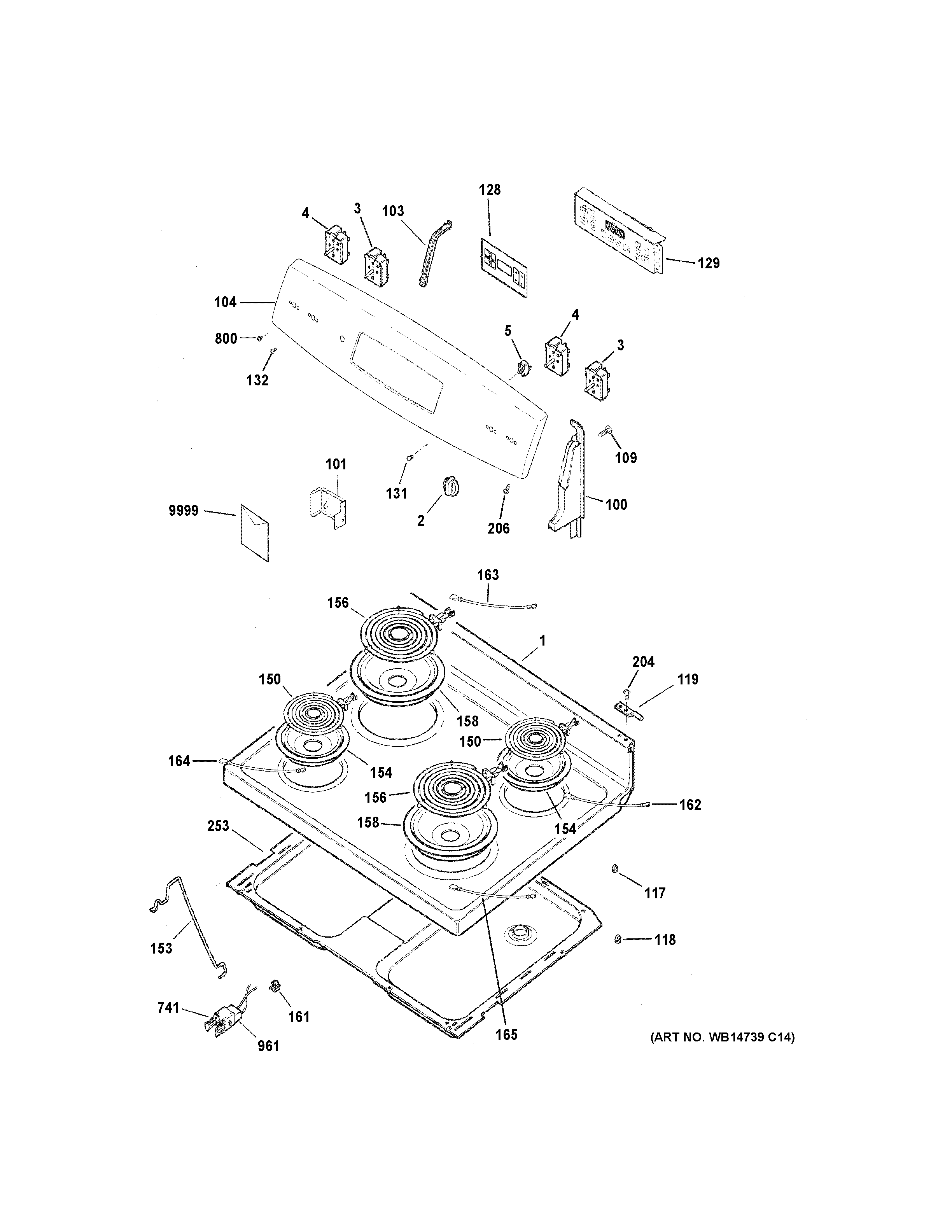

JB255RK4SS CONTROL PANEL & COOKTOP

JB255RK4SS CONTROL PANEL & COOKTOP

Written by

in

JB255RK4SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10085 GE Oven Cooktop Black
2WB03X21356 GE Oven Knob
3WB24T10025 SWITCH INFIN(2500W)
4WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
100WB07X20194 GE Range Right End Support
100WB07X20197 GE Range Left End Support
101WB37X20196 GE Cooktop Bracket
101WB37X20193 GE Cooktop Bracket
103WB02K10150 GE Oven Control Bracket
104WB36X24648 GE Oven Control Trim
109WB01T10016 GE Oven Screw 8-18 AB Hex
117WB02K10075 GE Oven Plastic Nail
118GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
128OVERLAY T09
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
132WB1K8 GE Oven Thermostat Screw
150SURFACE UNIT ASM 6
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB30K10018 GE Oven 8" Burner Unit
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
162WB18X27485 GE Surface Unit Harness
163WB18X27486 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
253WB64K10009 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WR01X10065 GE Screw
961WB17T10006 GE Oven Burner Receptacle Block
9999PM INSTALL INSTRUCTIONS
9999WB49X21392 GE Oven Hinge Service Kit
9999PM INSTALL INSTRUCTIONS
9999PM MINI MANUAL
9999PM QUICK GUIDE
