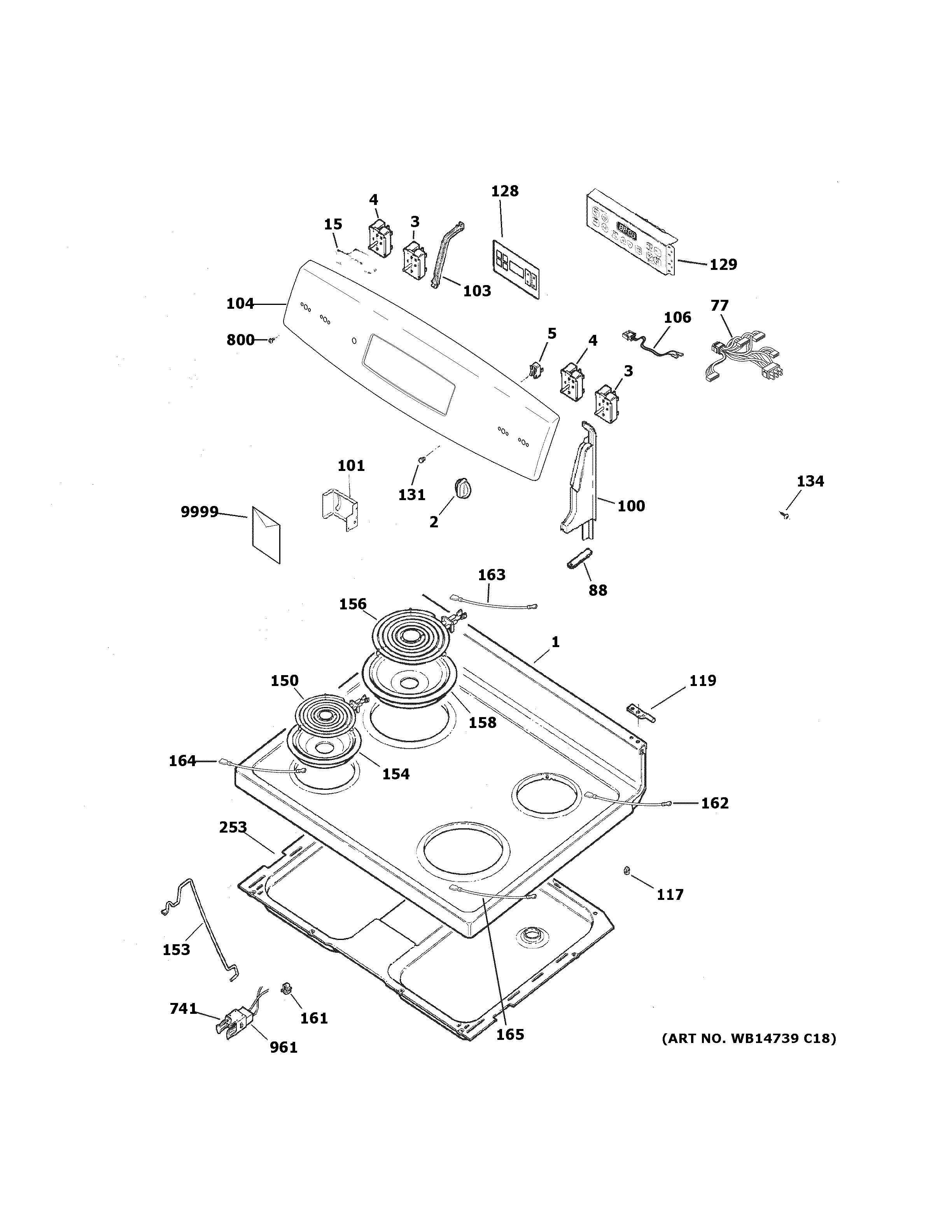

JB256DM2WW CONTROL PANEL & COOKTOP

JB256DM2WW CONTROL PANEL & COOKTOP

Written by

in

JB256DM2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10080 GE Range White Top
2KNOB VALVE
3WB24T10025 SWITCH INFIN(2500W)
4WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
15COVER THERMOSTAT
77WB18X32877 GE Main Harness
88GEN WB02K0062
100WB07X20277 GE Range Right End Support
100END SUPPORT LEFT
101WB37X20196 GE Cooktop Bracket
101WB37X20193 GE Cooktop Bracket
103WB02K10150 GE Oven Control Bracket
104WB36X21597 GE Oven Control Trim
106WB18X31422 GE Control Harness
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
128WB07X24623 GE Oven Overlay
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01X5874
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
161CLIP WIRE
162WB18X27485 GE Surface Unit Harness
163WB18X27486 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
253WB64K10009 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB1K8 GE Oven Thermostat Screw
961WB17T10006 GE Oven Burner Receptacle Block
9999WB49X21392 GE Oven Hinge Service Kit
