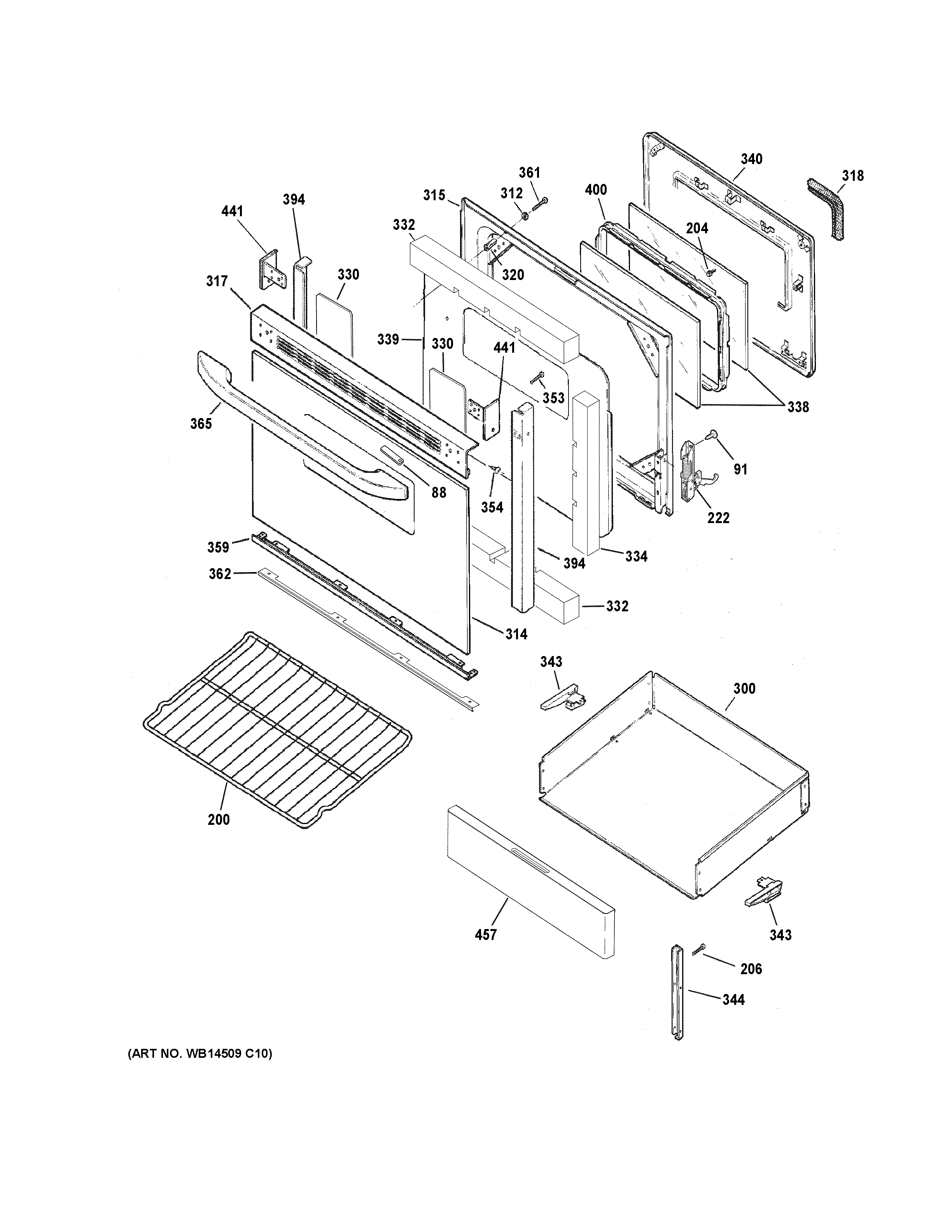

JB256DM3BB DOOR & DRAWER PARTS

JB256DM3BB DOOR & DRAWER PARTS

Written by

in

JB256DM3BB DOOR & DRAWER PARTS

Products

PositionProduct
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21982 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X21358 GE Oven Glass Door
315WB56X24855 GE Oven Door Liner Weld
317WB7K403 GE Oven Top Door Trim
318WB35X29841 GE Door Gasket Assembly
320WB02K10156 GE Oven Spacer
330WB35X38787 GE Reflector Aluminum
332WB35X27194 GE Insulation Assembly (Upper & Lower)
334WB35X27195 GE Insulation Side
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB02X32438 GE Door Handle Screw
362WB07X20288 GE Oven Barrier Door
365WB15X35072 GE Black Handle and Endcap
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10249
400WB34K10087 GE Oven Window Spacer Assembly
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
457WB56X31458 GE Black Drawer Panel
