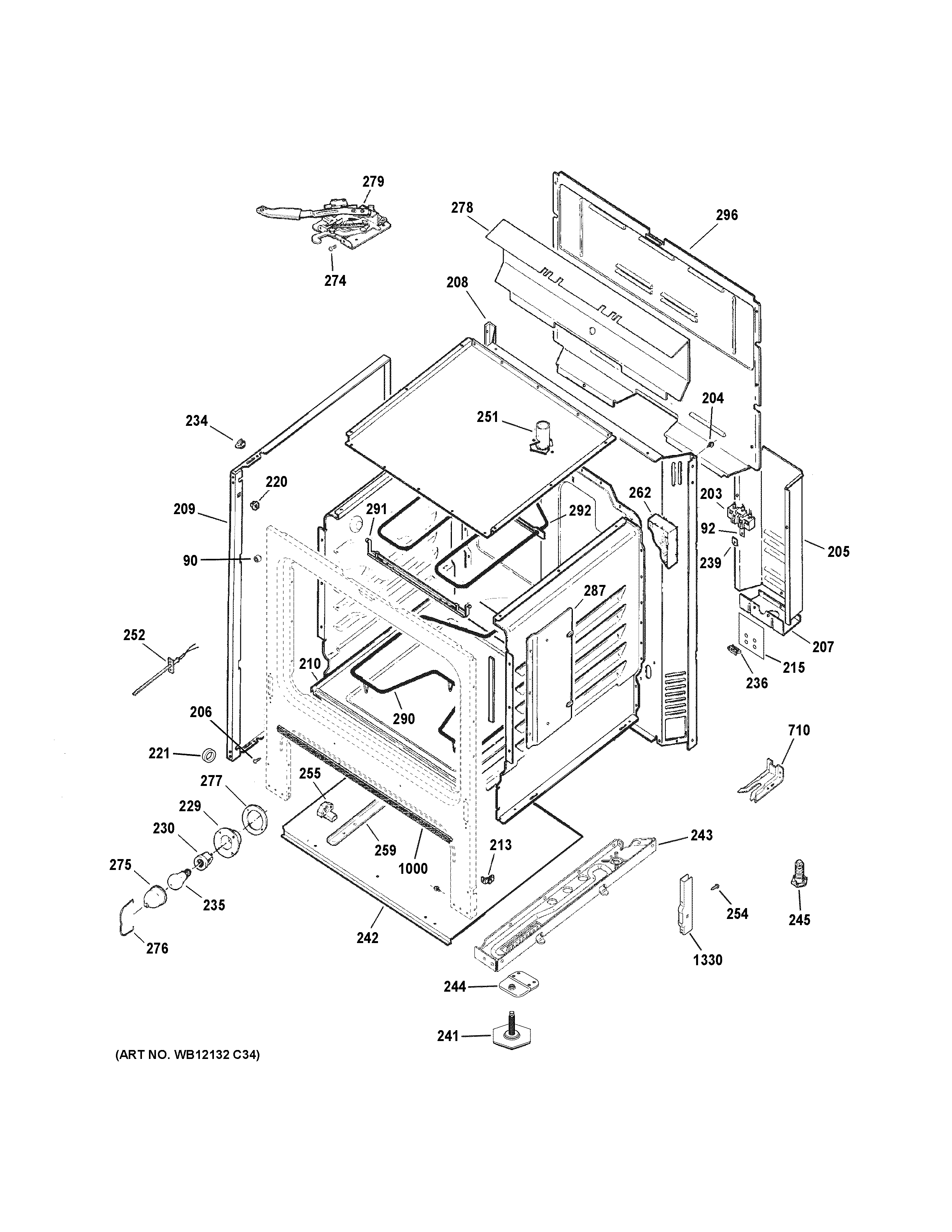

JB256DM4BB BODY PARTS

JB256DM4BB BODY PARTS

Written by

in

JB256DM4BB BODY PARTS

Products

PositionProduct
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
203WB27X31509 GE Terminal Block Assembly
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
205WB34X21584 GE Oven Guard Terminal
206WB01K10091 GE Oven Screw
207WB02K10029 GE Oven Mounting Terminal Bracket
208WB63K10273 GE Back
209WB56X29124 GE Oven Side Panel
210WB63K10105 GE Range Oven Bottom
213WB1K3 GE Oven Speed Nut
215FIBER GLASS
220GEN WB02K0008
221WB02K10294 GE Oven Grommet
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
239PLATE GROUND
241WB02X29030 GE Range Leveling Leg
242GUARD INSULATION BOTTOM
243WB63K10256 GE Oven Support Base
243SUPPORT BASE LEFT
244WB34X29134 GE Oven Base Bracket
245WB02K10182 GE Oven Leveling Leg
251WB38K10016 GE Oven Vent Tube Assembly
252SENSOR ASM
254GEN WB01K0053
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
262WB35K10104 GE Oven Back Insulation
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278WB34X21602 GE Oven Divider Wiring
279WB02K10144 GE Oven Door Latch Assembly
287GUARD RADIATION
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34X21585 GE Back Cover
710WB02X32405 GE Oven Anti-Tip Bracket Assembly
1000WB34X24779 GE Front Frame Trim
1330WB10X20220 GE Oven Receiver Hinge
