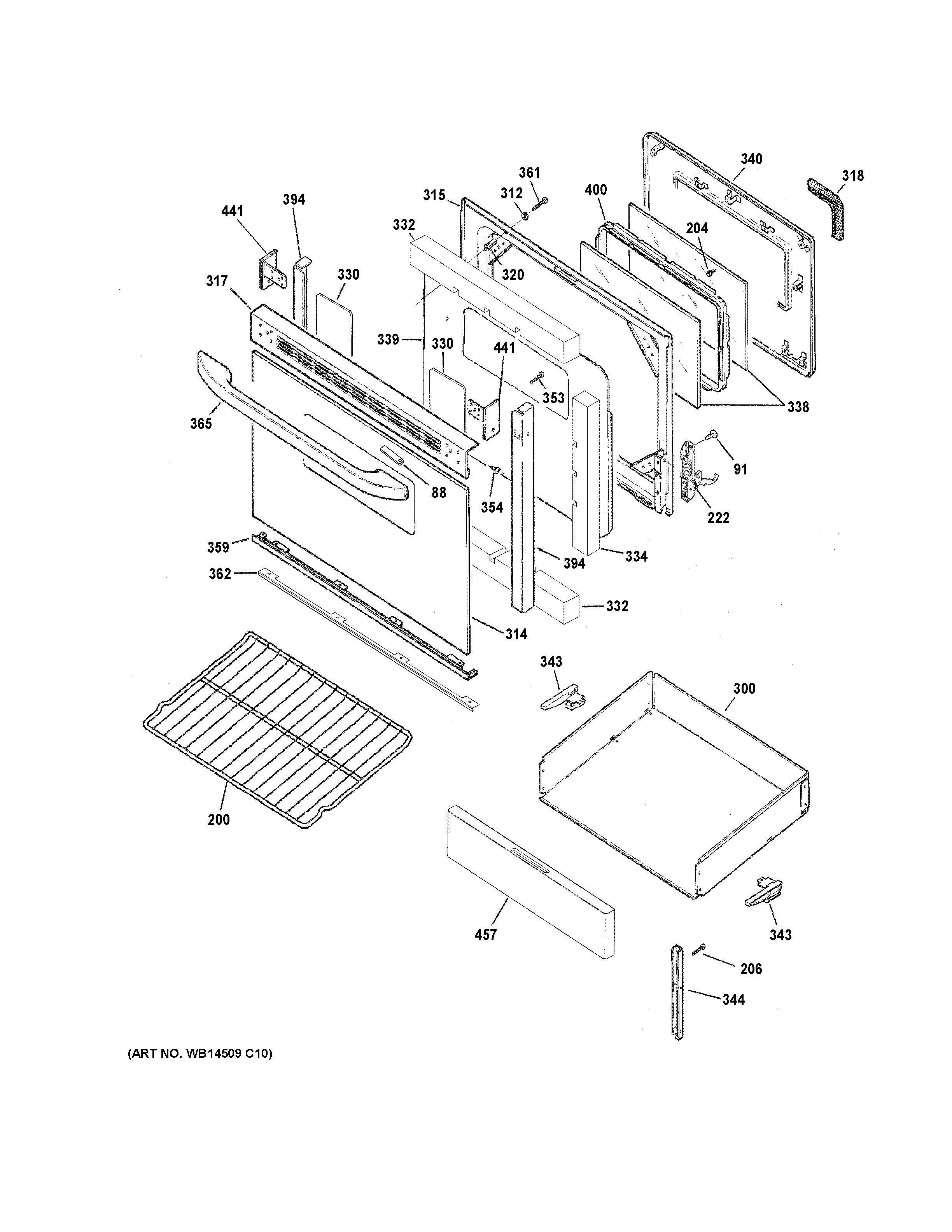

JB256DM4WW DOOR & DRAWER PARTS

JB256DM4WW DOOR & DRAWER PARTS

Written by

in

JB256DM4WW DOOR & DRAWER PARTS

Products

PositionProduct
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21982 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X21369 GE Oven Glass Door
315WB56X24855 GE Oven Door Liner Weld
317GEN WB07K0400
318WB35X29841 GE Door Gasket Assembly
320WB02K10156 GE Oven Spacer
330WB35X38787 GE Reflector Aluminum
332WB35X27194 GE Insulation Assembly (Upper & Lower)
334WB35X27195 GE Insulation Side
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
359TRIM BOTTOM ASM
361WB02X32438 GE Door Handle Screw
362WB07X20288 GE Oven Barrier Door
365WB15X35075 GE White Handle and End Cap
394WB07X23480 GE Left Trim Post
394WB07X23481 GE Oven Right Trim Post
400WB34K10087 GE Oven Window Spacer Assembly
441WB7K266 GE Oven Door End Cap
457WB56X31459 GE Oven Drawer Front
