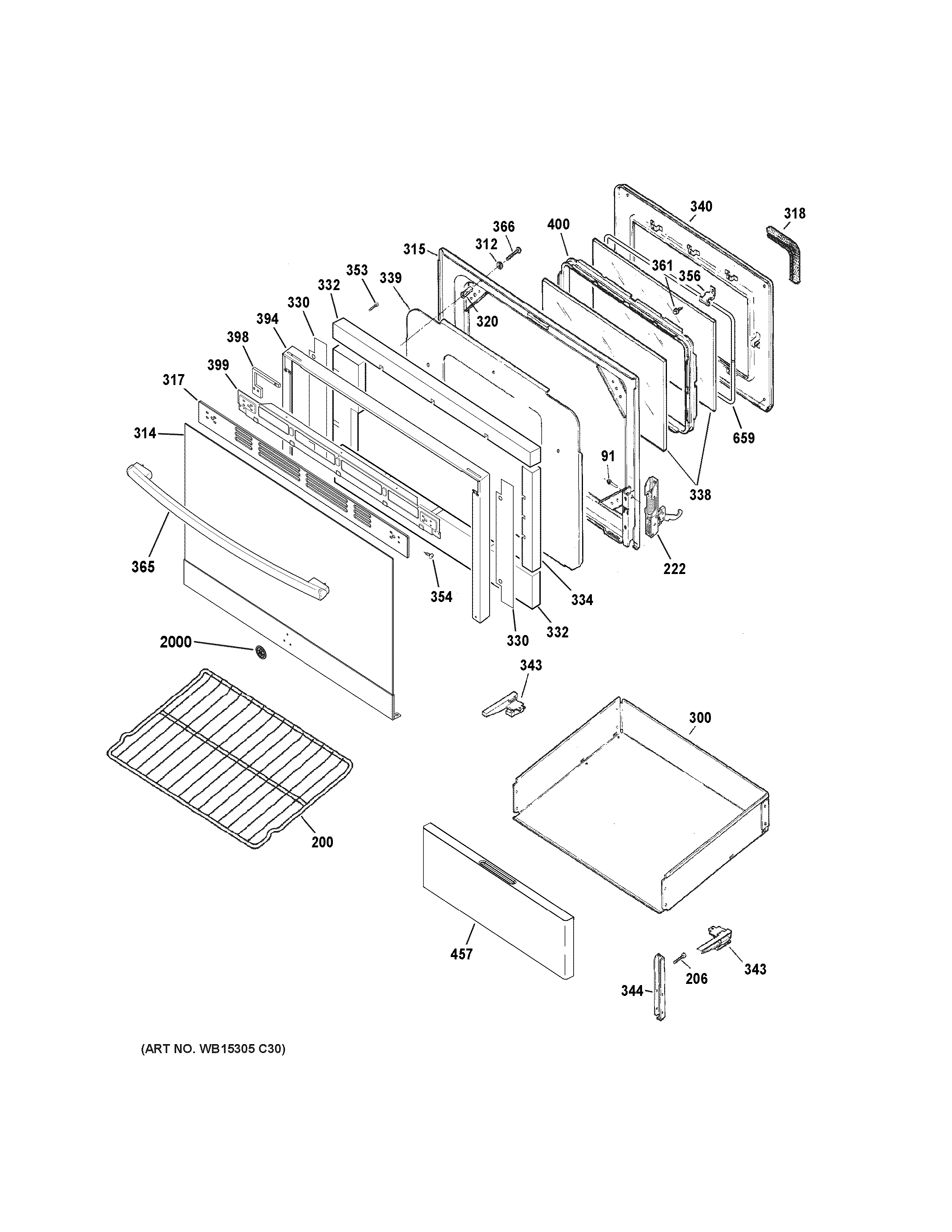

JB256RM2SS DOOR & DRAWER PARTS

JB256RM2SS DOOR & DRAWER PARTS

Written by

in

JB256RM2SS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
206WB01K10091 GE Oven Screw
222WB10X21982 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X26696 GE Oven Glass Door Assembly
315WB56X20537 GE Oven Door Weld Liner
317WB07X26937 GE Oven Vent Trim
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10156 GE Oven Spacer
330WB35X21579 GE Front Door Insulation
332WB35X27195 GE Insulation Side
334WB35X27194 GE Insulation Assembly (Upper & Lower)
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
356CLIP WINDOW
361WB1K5062 GE Oven Screw
365WB15X35073 GE Stainless Steel Handle
366WB1K63 GE Oven Screw
394WB07X20354 GE Oven Door Trim
398WB35X28971 GE Washer Side Door Insulation
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X24650 GE Oven Drawer Panel
659WB35X21685 GE Oven Cord Fiberglass
2000WB02X29637 GE Oven Badge Assembly
