JB258DM1BB CONTROL PANEL

JB258DM1BB CONTROL PANEL

Written by

in

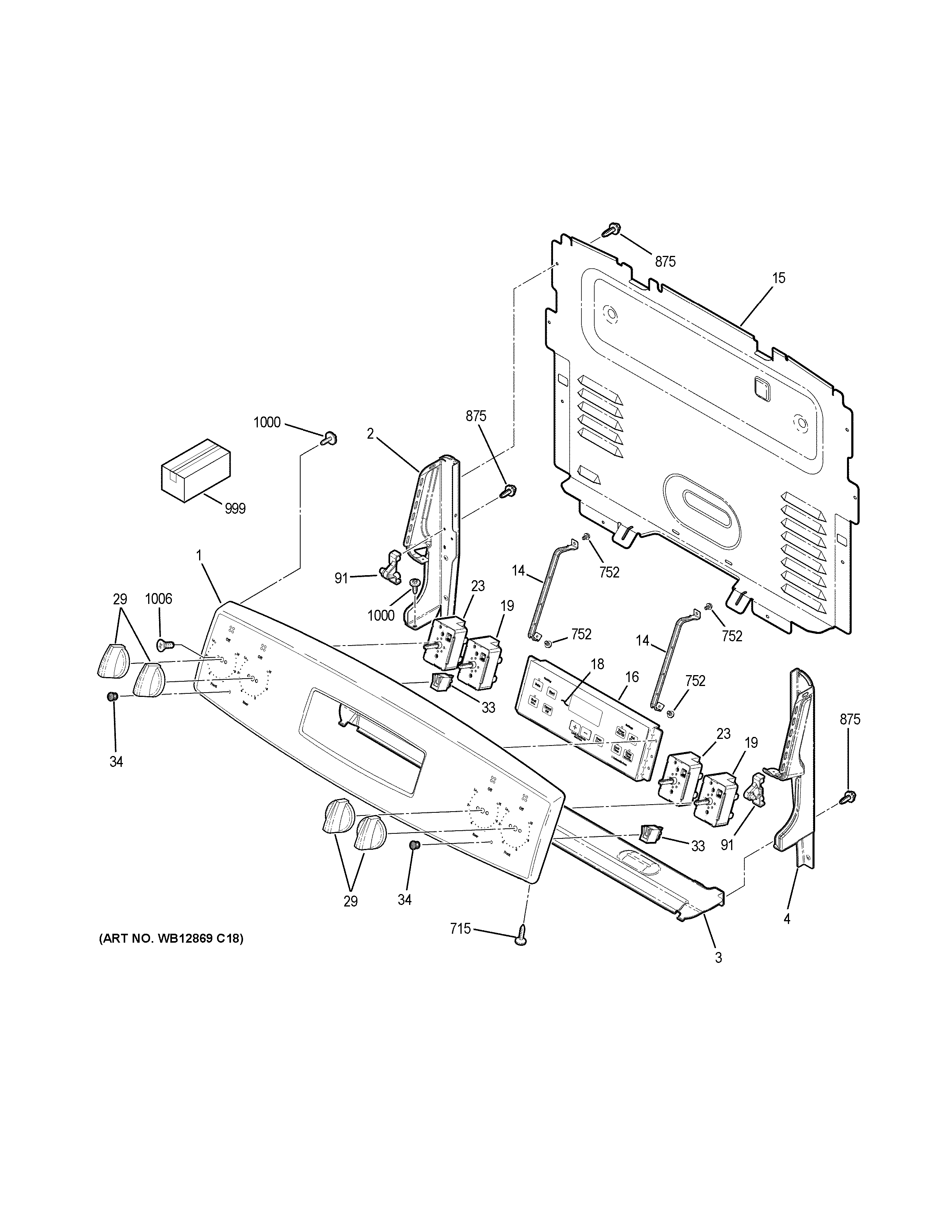

JB258DM1BB CONTROL PANEL

Products

PositionProduct
1WB07X26430 GE Oven Control Trim Assembly (Black)
1LABEL WIRE DIAGRAM
2WB07X27823 GE End Plate LT (Black)
3WB02X28994 GE Heat Shield
4WB07X27820 GE Right Endplate (Black)
14WB34X20080 GE Control Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB27T11511 GE Oven Black Faceplate Graphics
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10022 GE Oven Infinite Switch
29WB03T10332 GE Stove Burner Control Knob
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
715WB1K60 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999PM INSTRUCTIONS INSTALL
999PM MANUAL MINI & WD ASM
999PM QUICK GUIDE
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
