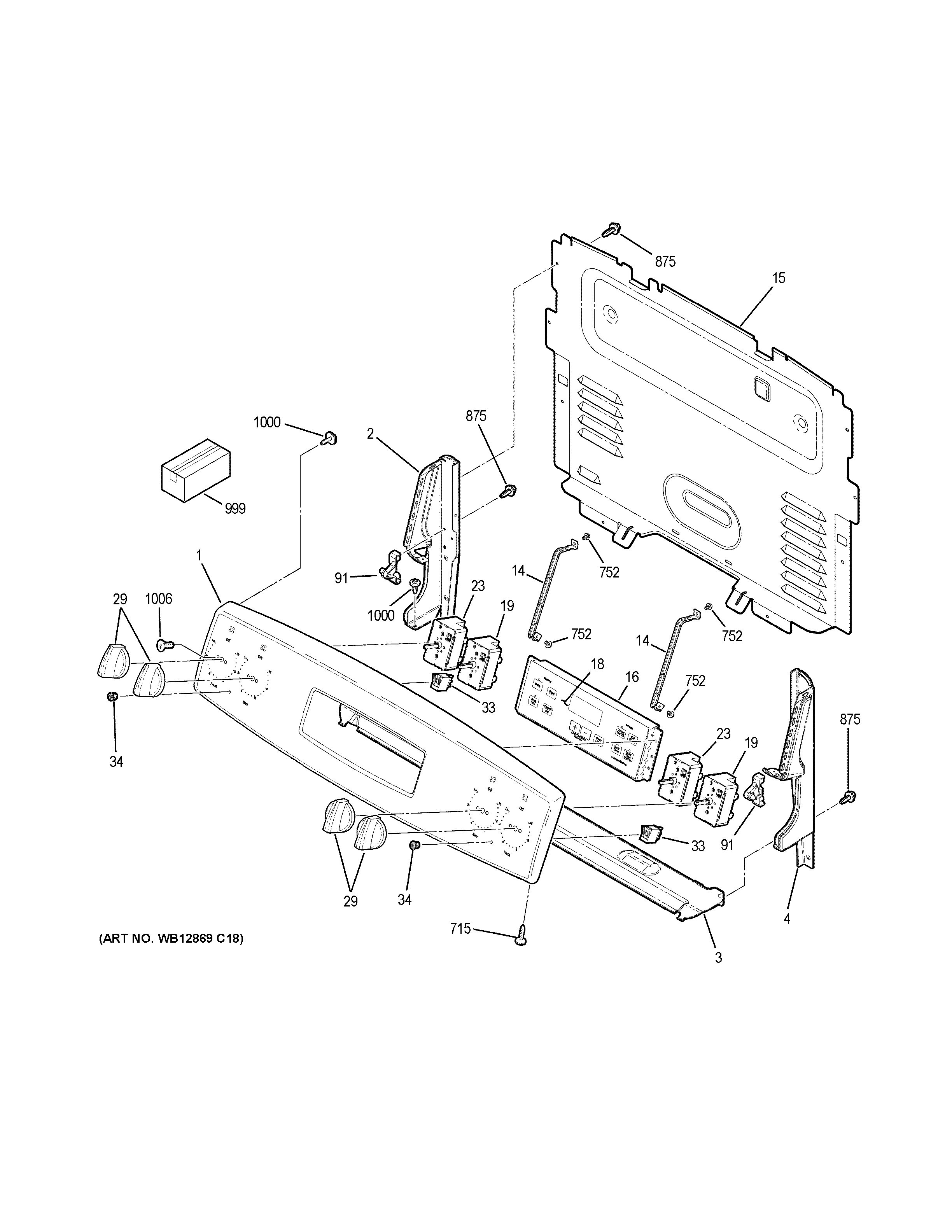

JB258DM2CC CONTROL PANEL

JB258DM2CC CONTROL PANEL

Written by

in

JB258DM2CC CONTROL PANEL

Products

PositionProduct
1WB07X28545 GE Control Trim Assembly
1LABEL WIRE DIAGRAM
2WB07X27824 GE Oven End Plate
3WB02X28994 GE Heat Shield
4WB07X27821 GE Oven Right End Plate
14WB34X20080 GE Control Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB27T11513 GE Oven Faceplate Graphics
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10022 GE Oven Infinite Switch
29WB03T10345 GE Oven Infinite Knob
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
715SCREW 8 – 18 (BQT) 1/2 S
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM MANUAL MINI & WD ASM
999PM QUICK GUIDE
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
