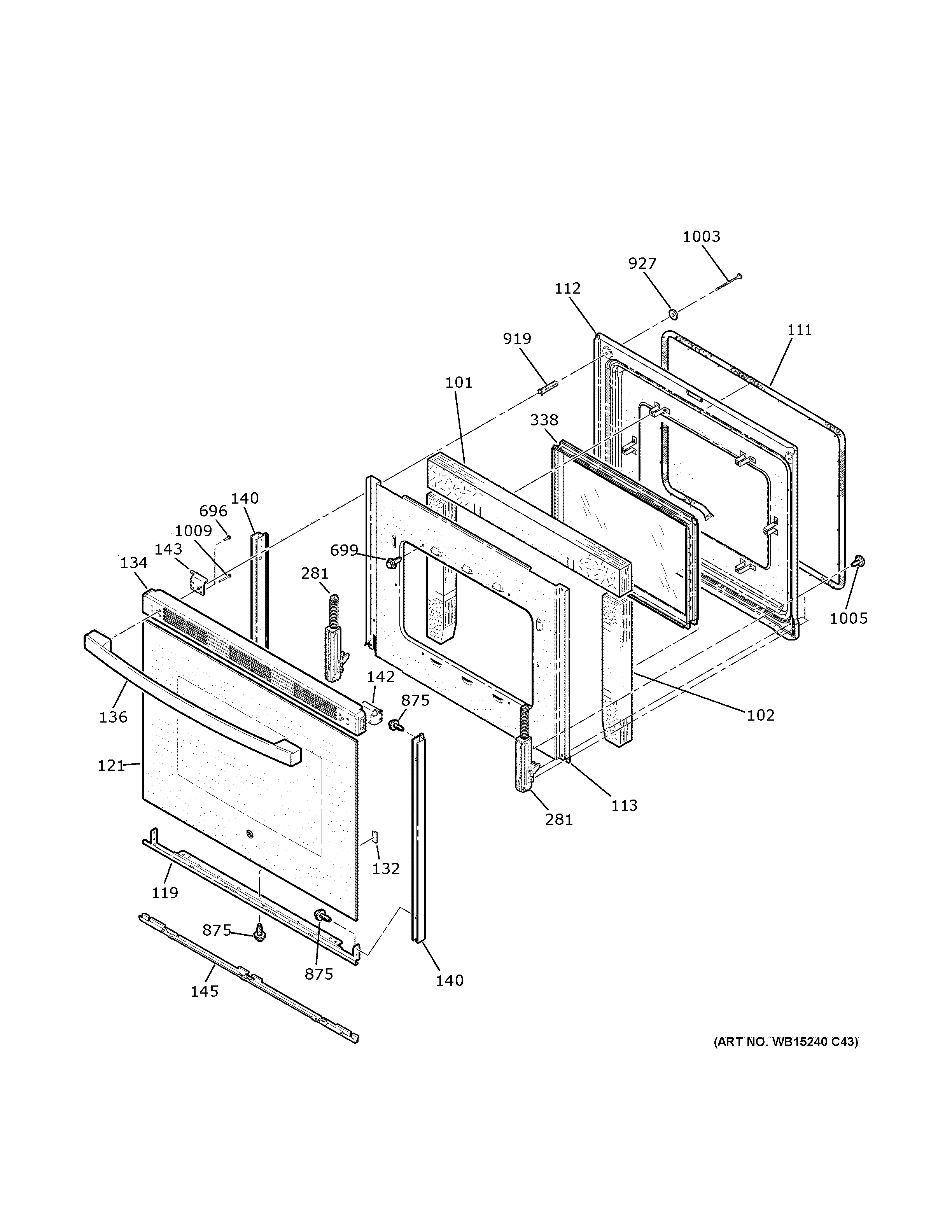

JB258DM5BB DOOR

Products

Position	Product
101	WB35T10077 GE Oven Door Insulation
102	INSULATION DOOR
111	GASKET OVEN
112	WB55T10203 GE Oven Door Liner Assembly (Black)
113	WB56T10178 GE Oven Door Insulation Retainer
119	WB07X42966 GE Range Bottom Trim Channel
121	WB56X26637 GE Oven Door Glass
132	WB01T10026 GE Oven Door Pad
134	WB07X27233 GE Oven Trim Vent Door (Black)
136	WB15X42628 GE Handle and Endcap Assembly (Black)
140	WB56T10287 GE Oven Door Side Frame (Black)
142	WB34X42027 GE Right Hand Door Trim Bracket
143	WB34X42670 GE Left Hand Door Handle Bracket
145	WB07X42968 GE Door Gap Filler
281	WB10T10070 GE Oven Door Hinge
338	WB56X22160 GE Stove Inner Door Glass Assembly
696	WB01T10103 GE Oven Screw 10-16 AB HXW .532
699	WB1M1 GE Oven Screw
875	WH2X930 GE Screw
919	WB02X38986 GE Spacer
927	WB1X119D GE Oven Range Washer
1003	WB02X24268 GE Oven Screw 10-32 CA TRT15
1005	WB01T10008 GE Oven Screw 10-32
1009	WB1K5157 GE Oven Black Screw
