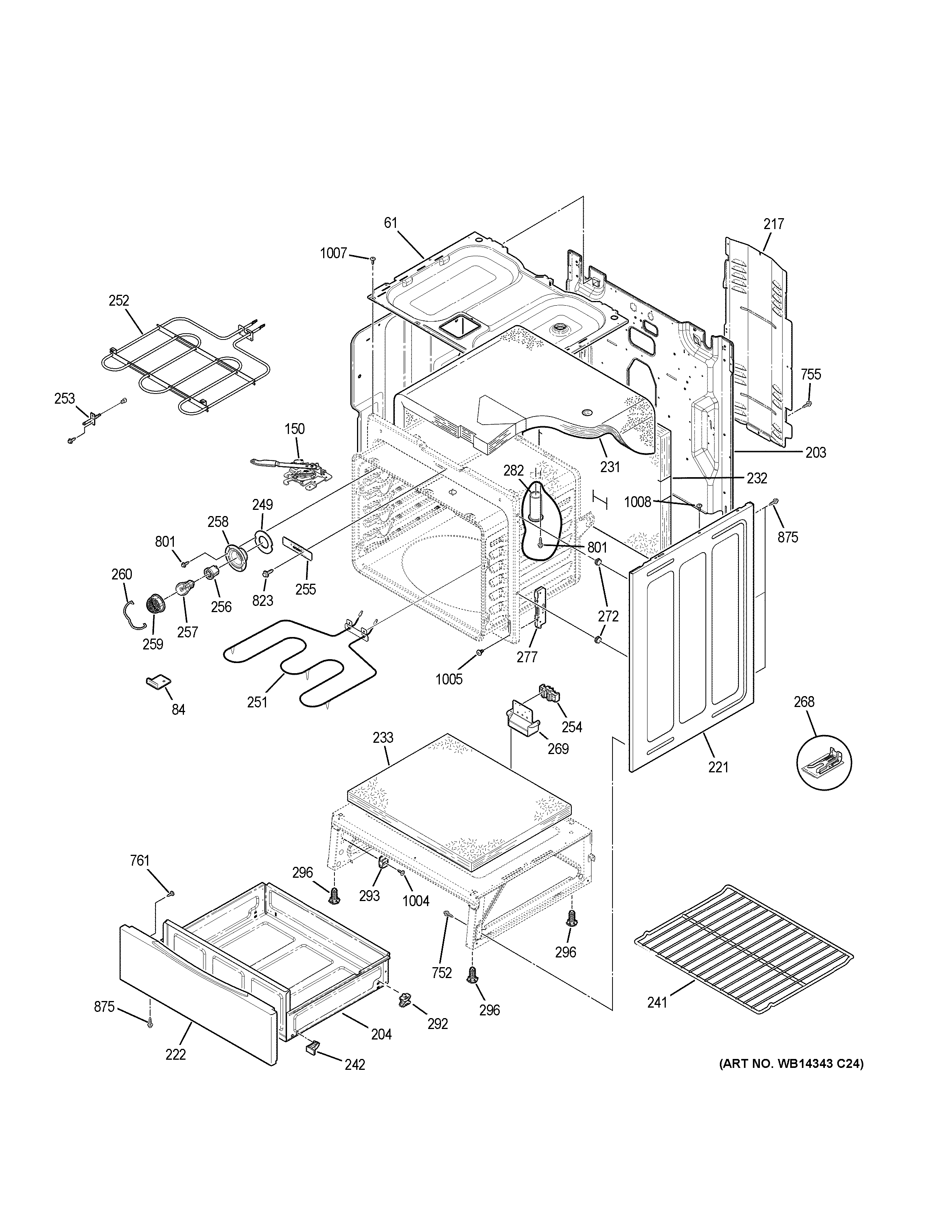

JB258GM1SA BODY PARTS

JB258GM1SA BODY PARTS

Written by

in

JB258GM1SA BODY PARTS

Products

PositionProduct
61WB63X29561 GE Burner Box
84WB02T10118 GE Oven Clip Seam
150BLACK LATCH AND HANDLE
203MAIN BACK COVER
204WB63X41287 GE Drawer Slide Assembly
217WB34X29563 GE Oven Wire Cover
221WB56X28881 GE Oven Side Panel Black
222DRAWER PANEL WM
231WB35X29569 GE Oven Cavity Insulation
232WB35X29567 GE Oven Back Insulation
233WB35X29568 GE Oven Bottom Insulation
241WB48T10063 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
249WB02T10027 GE Oven Gasket
251WB44T10011 GE Oven Bake Element
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
255TRIM LATCH
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB34X29565 GE Oven Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10X29566 GE Hinge Receiver
282WB38X33649 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
761WB1X5364 GE Oven Mounting Screw
801WB01M10002 GE Oven Screw
823WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
875WH2X930 GE Screw
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1007WB01T10037 GE Screw 8-18 7/16"
1008WB1X5904 GE Oven Screw 8-18 BA
