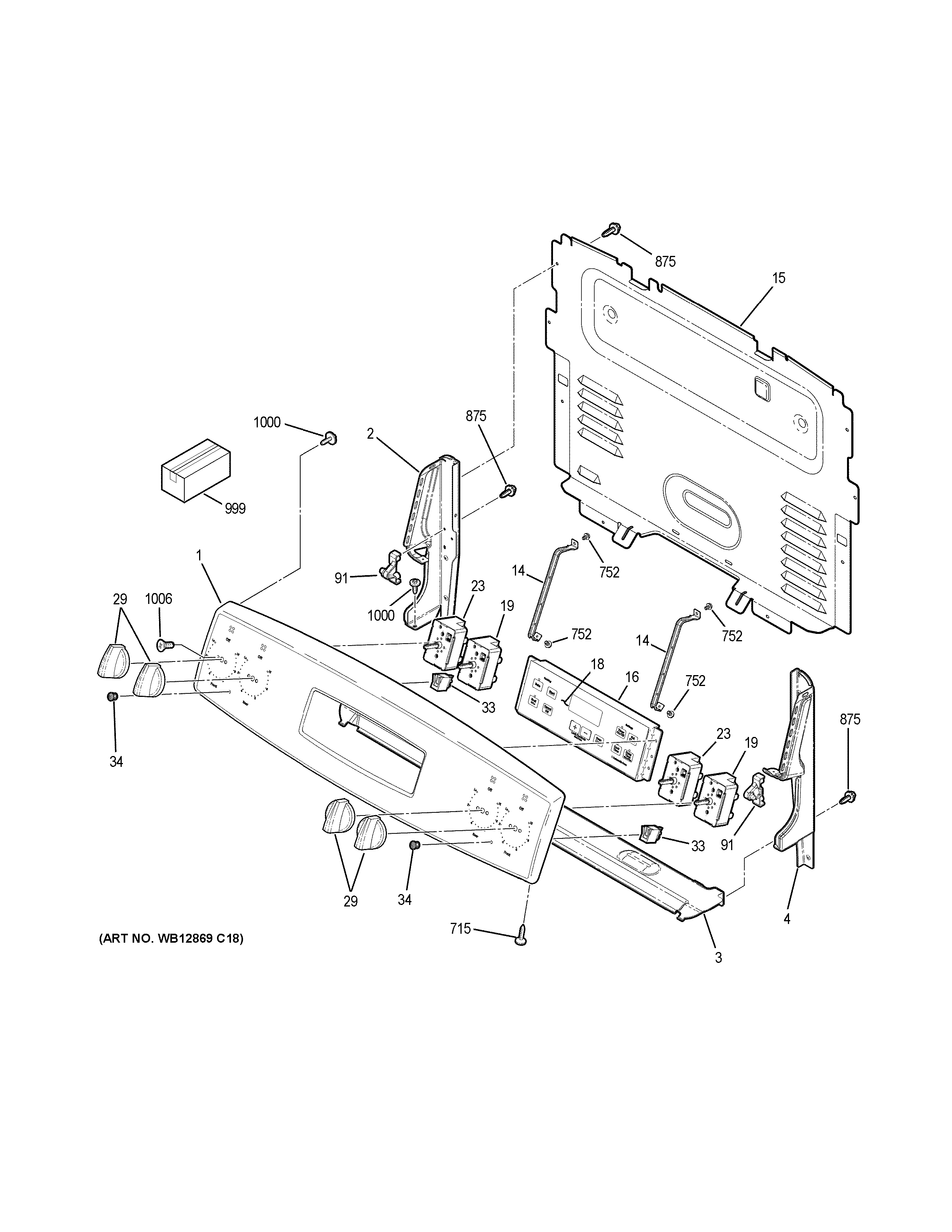

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X27881 GE Oven Trim and Bracket Assembly |
| 2 | WB07X27823 GE End Plate LT (Black) |
| 3 | WB02X28994 GE Heat Shield |
| 4 | WB07X27820 GE Right Endplate (Black) |
| 14 | WB34X20080 GE Control Bracket |
| 15 | WB34X29564 GE Oven Back Control Panel Cover |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | WB27T11511 GE Oven Black Faceplate Graphics |
| 19 | WB24T10025 SWITCH INFIN(2500W) |
| 23 | WB24T10022 GE Oven Infinite Switch |
| 29 | WB03T10332 GE Stove Burner Control Knob |
| 33 | WB25K10010 GE Oven Light Indicator Pilot |
| 34 | WB25X24023 GE Oven Indicator Light Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 715 | WB1K60 GE Screw 8-18 |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 875 | WH2X930 GE Screw |
| 999 | INSTRUCTION INSTALL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | PM QUICK GUIDE |
| 1000 | WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S |
| 1006 | WB01X23501 GE Oven Screw 8-32 Tapping Flat Head |
