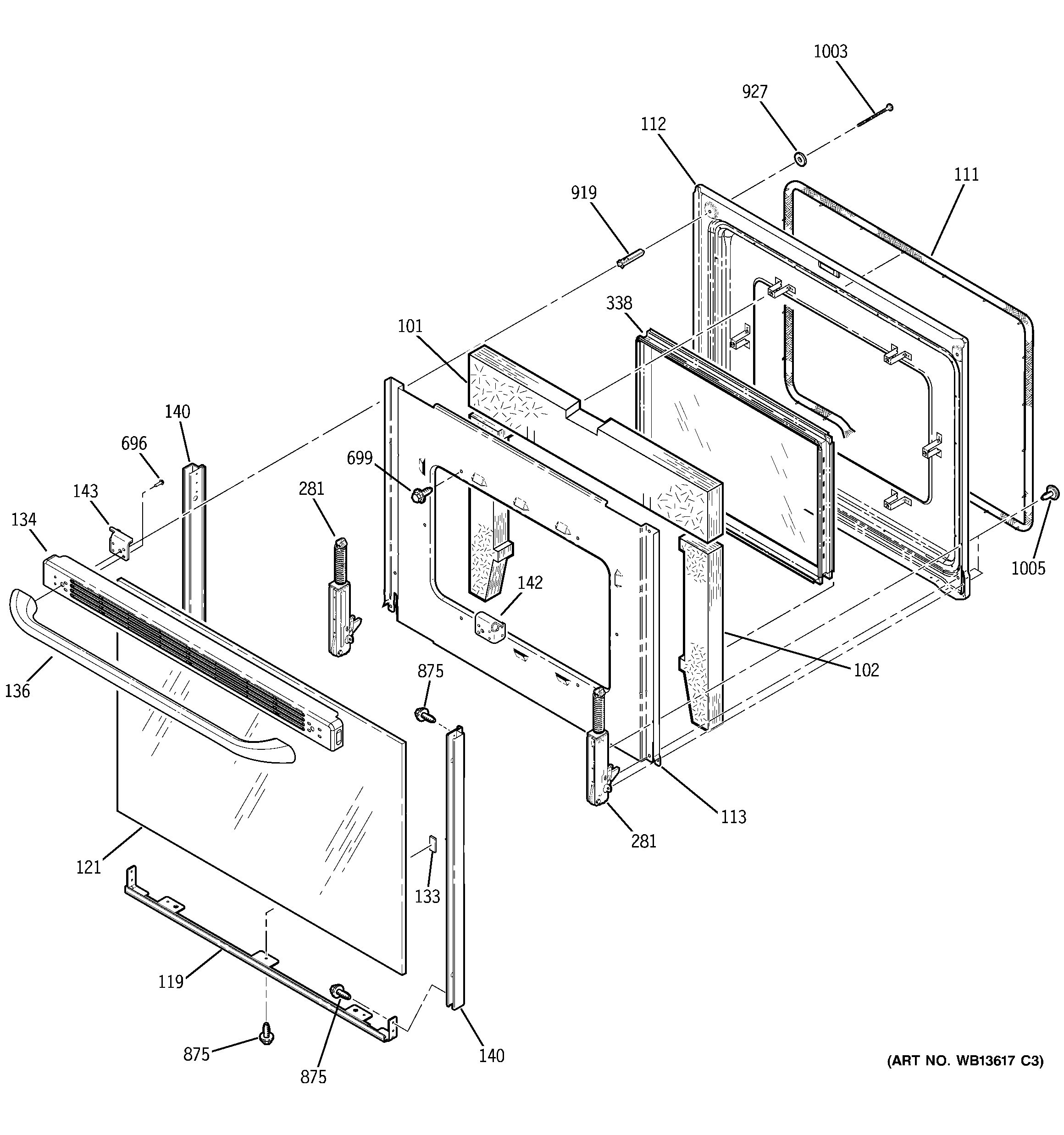

JB3000R1BB DOOR

Products

Position	Product
101	WB35T10077 GE Oven Door Insulation
102	INSULATION DOOR
111	GASKET OVEN
112	GEN WB55T10176
113	WB56T10178 GE Oven Door Insulation Retainer
119	WB07X42966 GE Range Bottom Trim Channel
119	WB07X42948 GE Range Bottom Trim Channel White
121	WB56T10187 GE Oven Outer Door Panel White
121	WB56T10179 GE Oven Glass Door Assembly
133	WB01T10026 GE Oven Door Pad
134	WB07X27233 GE Oven Trim Vent Door (Black)
134	WB07X27236 GE Oven Vent Door Trim (White)
136	WB15T10176 GE Oven Handle (White)
136	WB15T10183 GE Oven Handle Black
140	WB56T10290 GE Oven Door Side Frame (White)
140	WB56T10287 GE Oven Door Side Frame (Black)
142	WB34X42027 GE Right Hand Door Trim Bracket
143	WB34X42670 GE Left Hand Door Handle Bracket
281	WB10T10071 GE Oven Door Hinge
338	WB56T10105 GE Oven Inner Window Assembly
696	WB01T10103 GE Oven Screw 10-16 AB HXW .532
696	WB1K5156 GE Oven Screw
699	WB1M1 GE Oven Screw
875	WZ4X245D GE Screw Package
919	SPACER
927	WB1X119D GE Oven Range Washer
1003	WB01T10067 GE Oven Screw 10-16 PL PNT
1005	WB01T10008 GE Oven Screw 10-32
