JB3000R2BB CONTROL PANEL

JB3000R2BB CONTROL PANEL

Written by

in

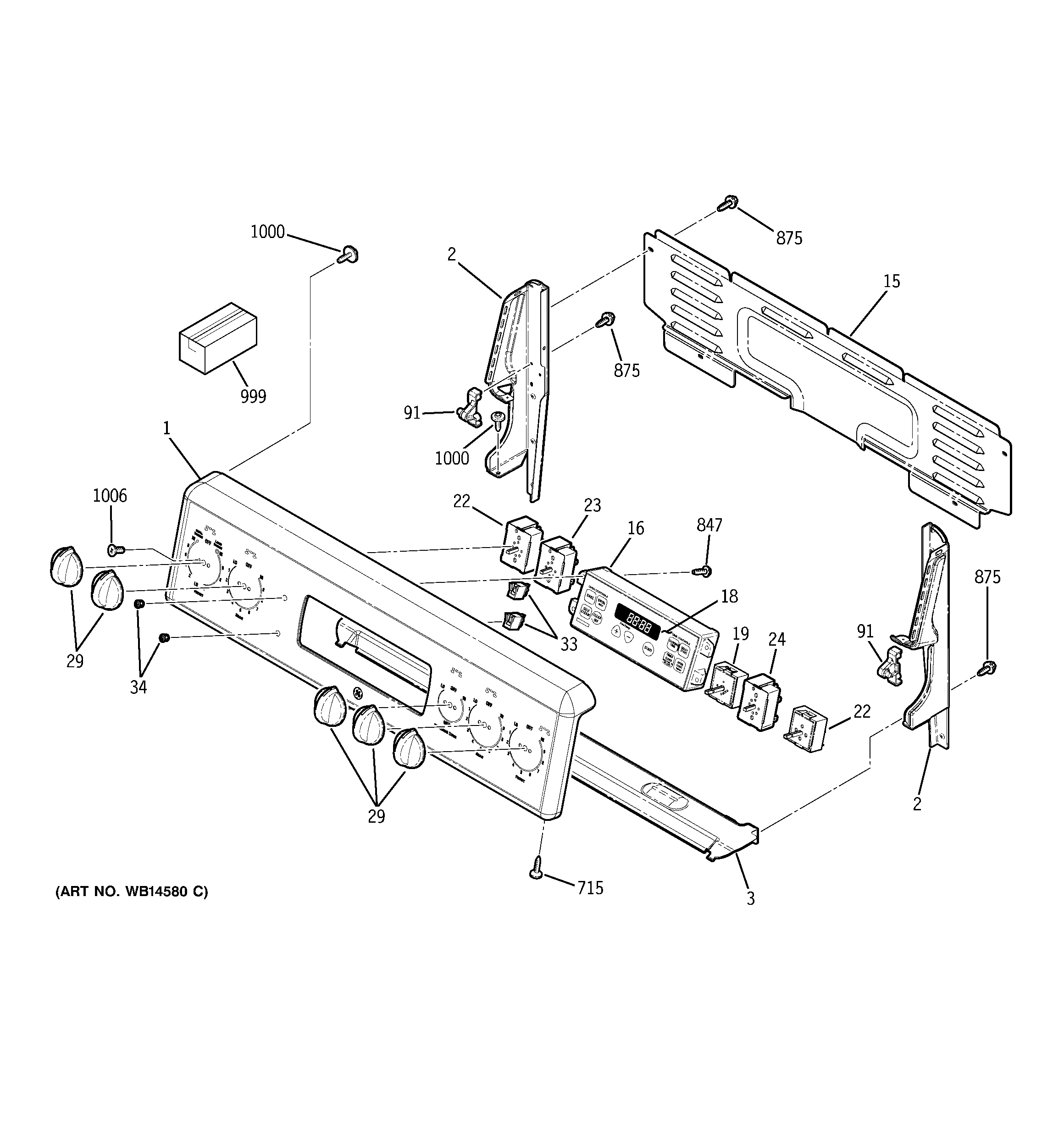

JB3000R2BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11329
1GEN WB36T11328
2GEN WB36T11043
2GEN WB36T11042
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3GEN WB02T10525
15GEN WB02T10499
16CONTROL OVEN TO9 (ELEC)
18WB27T11006 GE Oven Overlay
18WB27T11005 GE Oven Faceplate Graphics Black
19WB24T10145 GE Oven Burner Switch
22WB24T10153 GE Oven Infinite Switch Control
23GEN WB24T10170
24INFINITE CONTROL SWITCH
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
715WD2X432 GE Dishwasher Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
999GEN 49-80591
999GEN 31-14905
999GEN 31-10816
999INSTR INSTALL OVN DOOR
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 49-80632
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
