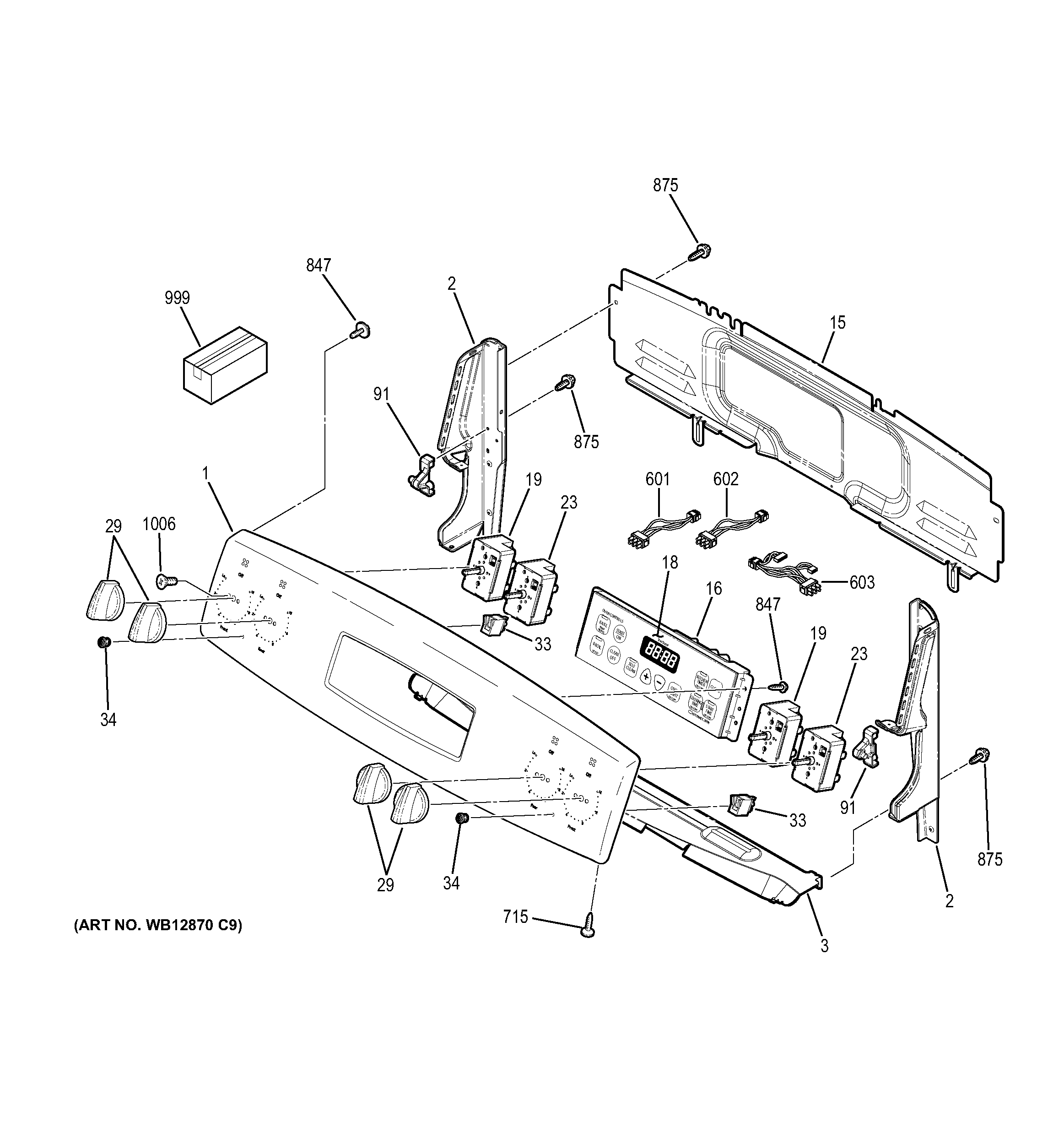

| 1 | GEN WB36T11406 |
| 1 | LABEL WIRE DIAGRAM |
| 2 | WB36T11204 GE Oven Right End Plate |
| 2 | WB07X27823 GE End Plate LT (Black) |
| 3 | WB02X20711 GE Oven Heat Shield Back Guard |
| 15 | COVER CONTROL |
| 16 | WB27T11501 GE Range Control ERC |
| 18 | WB27T11511 GE Oven Black Faceplate Graphics |
| 19 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | INFINITE CONTROL SWITCH |
| 29 | WB03T10332 GE Stove Burner Control Knob |
| 33 | WB25K10010 GE Oven Light Indicator Pilot |
| 34 | WB25T10103 GE Oven Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 601 | WB18T10466 GE Oven 18-Inch Lead Wire |
| 602 | HARNESS WIRE MAINTOP LT |
| 603 | HARNESS WIRE MAINTOP RT |
| 715 | WD2X432 GE Dishwasher Screw |
| 847 | WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S |
| 875 | WH2X930 GE Screw |
| 999 | WB02T10303 GE Cleaner Lubricant |
| 999 | GEN 49-80632 |
| 999 | GEN 31-10816 |
| 999 | GEN 31-14544 |
| 999 | INSTR INSTALL OVN DOOR |
| 999 | GEN 31-10781 |
| 1006 | WB01T10053 GE Oven 8-32 TPT FLR Screw |
