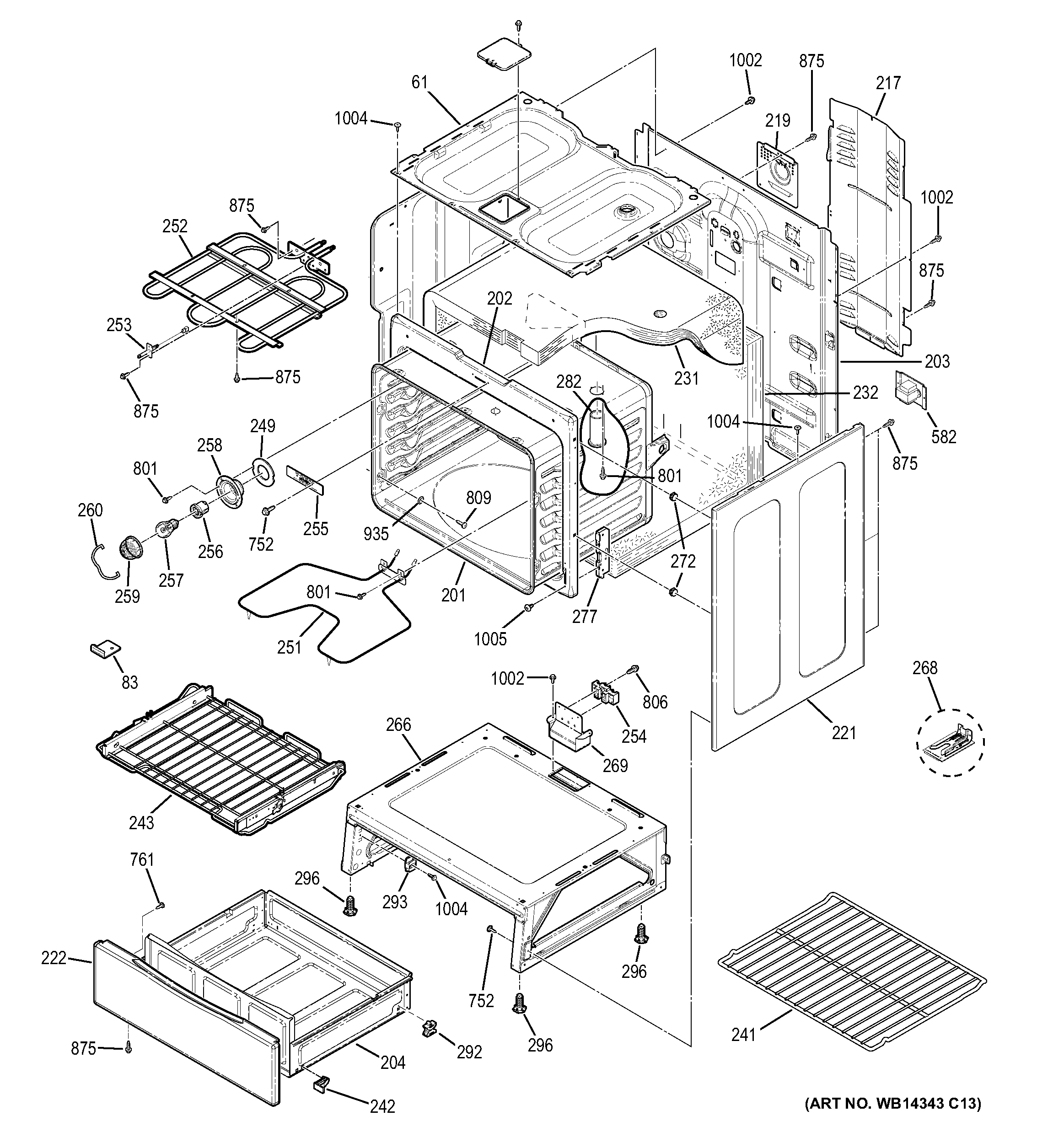

JB350DF2BB BODY PARTS

JB350DF2BB BODY PARTS

Written by

in

JB350DF2BB BODY PARTS

Products

PositionProduct
61WB64T10073 GE Oven Burner Box
83WB02T10118 GE Oven Clip Seam
201WB63X20942 GE Oven Body Weld Assembly
202FRAME FRONT
203BACK MAIN
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28881 GE Oven Side Panel Black
222WB56X43436 GE Black Drawer Panel
231WB35T10209 GE Oven Insulation
232WB35T10113 GE Oven Insulation Assembly
241WB48T10082 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
243WB48X20881 GE Oven Rack Slide Assembly
249WB02T10037 GE Oven Light Cup
251WB44T10011 GE Oven Bake Element
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10027 GE Oven Gasket
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
266WB63X28540 GE Base Assembly Rivet
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
282WB38X33649 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
582PLATE COVER (BK)
752WB1K5200 GE Oven Screw 340531
761WB1X5364 GE Oven Mounting Screw
801WB1M1 GE Oven Screw
806WB1X1261 GE Oven Screw
809SCR 10-16 AB TRT20 1/2 N
875WH2X930 GE Screw
935WB01T10112 GE Washer Aluminum
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
