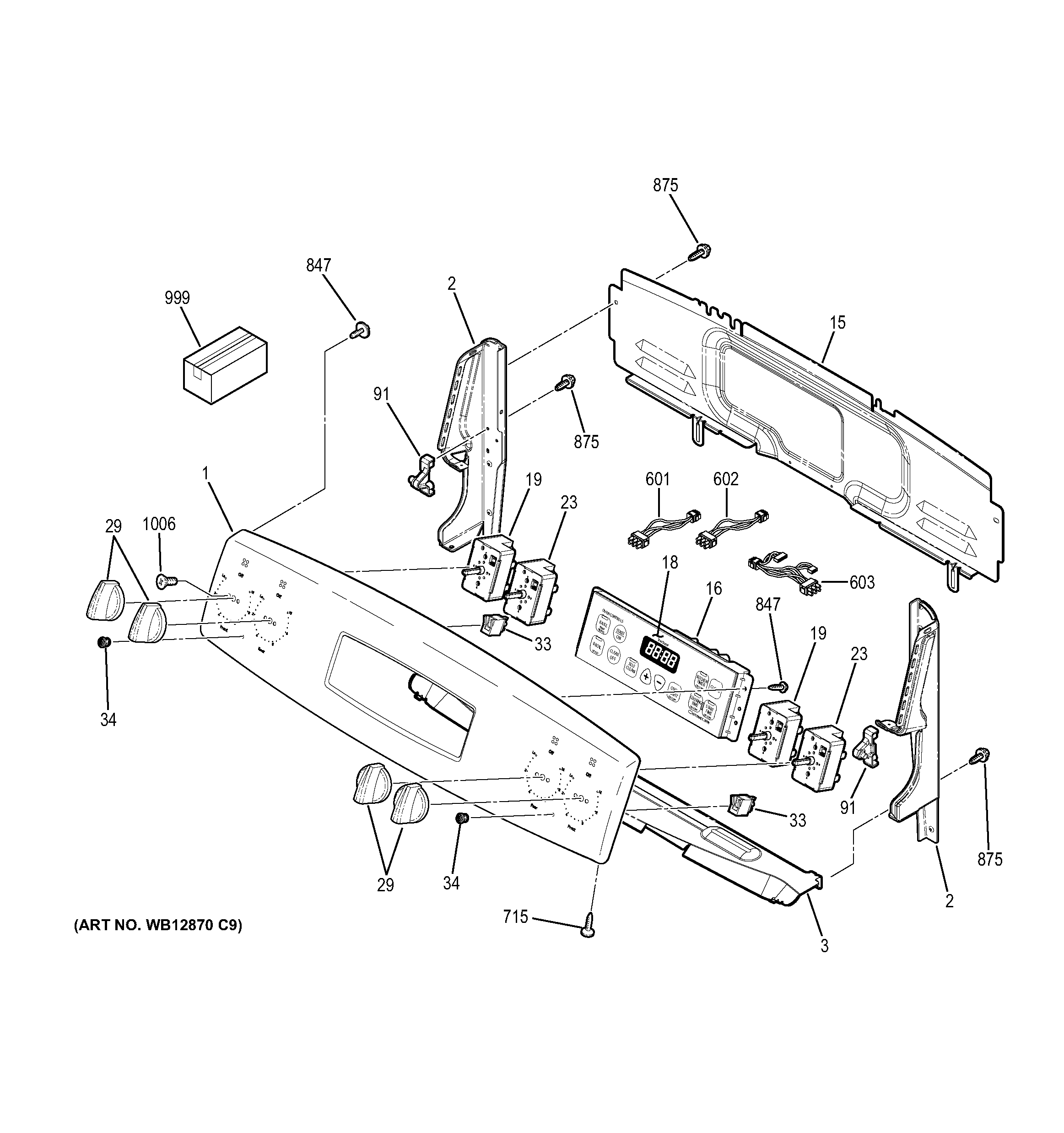

JB350RF1SS CONTROL PANEL

Products

Position	Product
1	TRIM CNTRL ASM
1	LABEL WIRE DIAGRAM
2	WB07X27823 GE End Plate LT (Black)
2	WB36T11204 GE Oven Right End Plate
3	WB02X20711 GE Oven Heat Shield Back Guard
15	COVER CONTROL
16	WB27T11501 GE Range Control ERC
18	WB27T11511 GE Oven Black Faceplate Graphics
19	WB24T10029 GE Oven Infinite Burner Switch
23	INFINITE CONTROL SWITCH
29	WB03T10346 GE Oven Infinite Knob
33	WB25K10010 GE Oven Light Indicator Pilot
34	WB25T10103 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
601	WB18T10466 GE Oven 18-Inch Lead Wire
602	HARNESS WIRE MAINTOP LT
603	HARNESS WIRE MAINTOP RT
715	WD2X432 GE Dishwasher Screw
847	WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
875	WH2X930 GE Screw
999	WB02T10303 GE Cleaner Lubricant
999	GEN 49-80632
999	GEN 31-10816
999	GEN 31-14544
999	INSTR INSTALL OVN DOOR
999	GEN 31-10781
1006	WB01T10053 GE Oven 8-32 TPT FLR Screw
