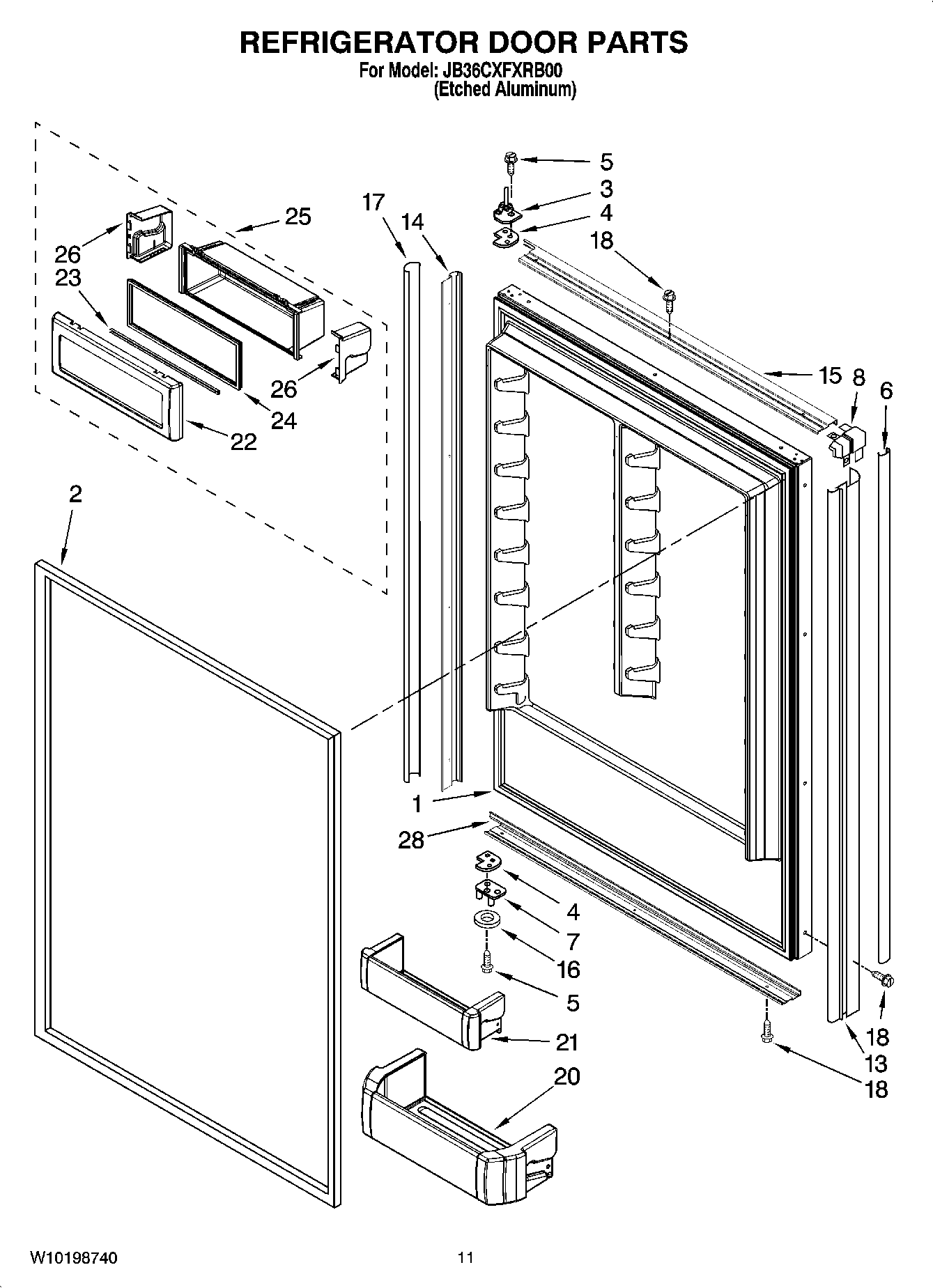

JB36CXFXRB00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 2309390
2Gasket, Door
3MAY 2256384
4Spacer-Door, Top & Bottom
5MAY 8533980
6Cover-Trim Handle Side (RC)
7Bottom Hinge Assembly
8Trim, Corner (Chrome)
13Trim Door
14MAY 2309476
15Trim-Door, Top
16WASHER
17Cover-Trim Hinge Side (RC)
18Screw, 8-15 x .500 (Stainless Steel)
20MAY 2307975
21Bin, Door (6)
22LID, UTILITY
23RAIL, UTILITY
24GASKET, BIN UTILITY
25MAY 2309252
26AEnd Cap (Right Side)
26End Cap (Left Side)
28Trim-Door, Bottom
