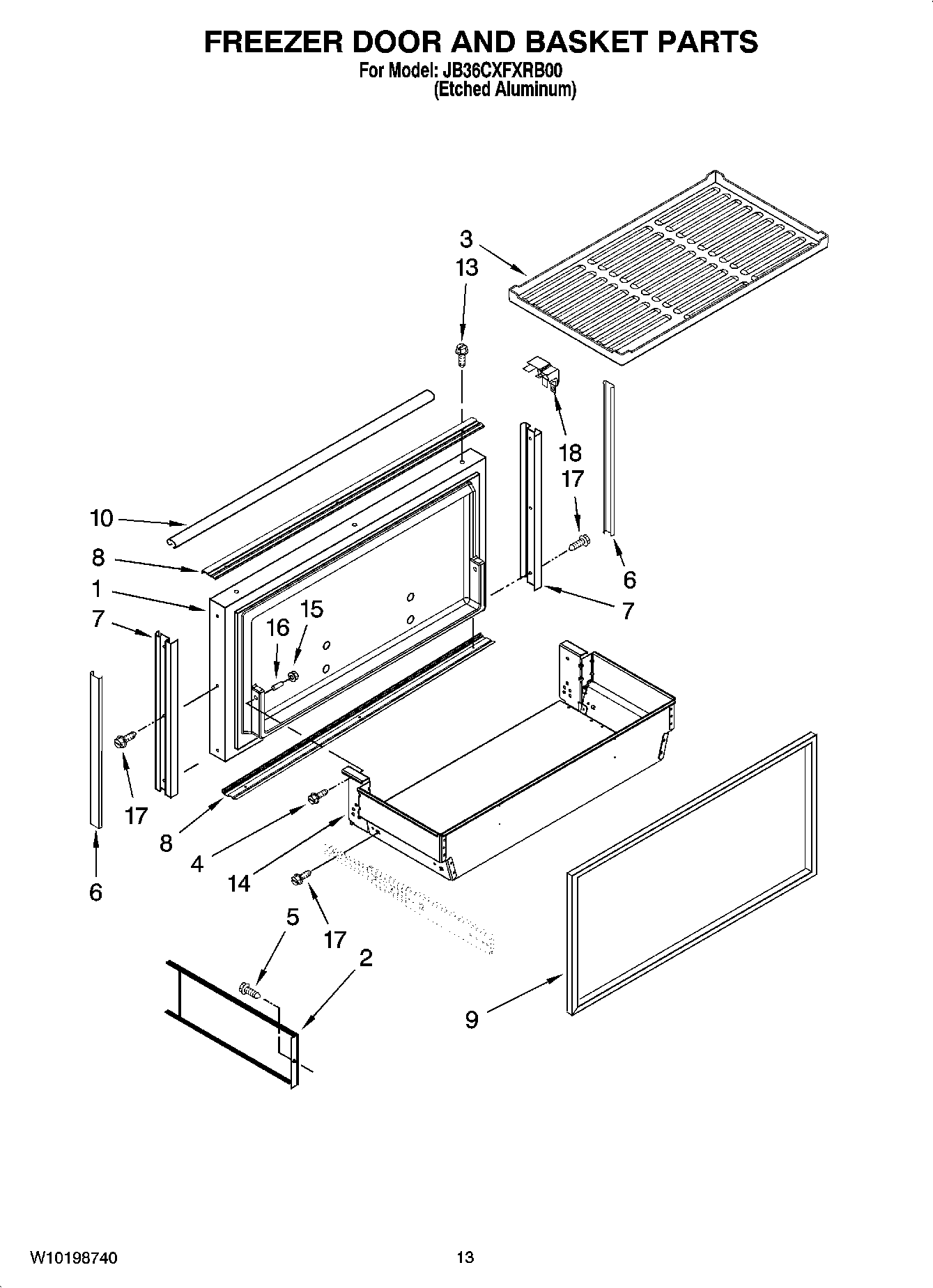

JB36CXFXRB00 08 – FREEZER DOOR AND BASKET PARTS

JB36CXFXRB00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

JB36CXFXRB00 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	MAY 2327401
2	MAY 2317101
3	MAY W10168937
4	SCREW
5	MAY W10135792
6	MAY 2006324
7	Trim-Door, Side
8	Trim-Door,
9	MAY 2300185
10	Cover, Trim
13	Screw, 8-15 x .500 (Stainless Steel)
14	Basket Assembly, Freezer
15	MAY 2207454
16	MAY W10001190
17	MAY W10109030
18	Trim, Corner (Chrome)
