JB36NXFXLE00 05 – FREEZER LINER PARTS
Written by
in

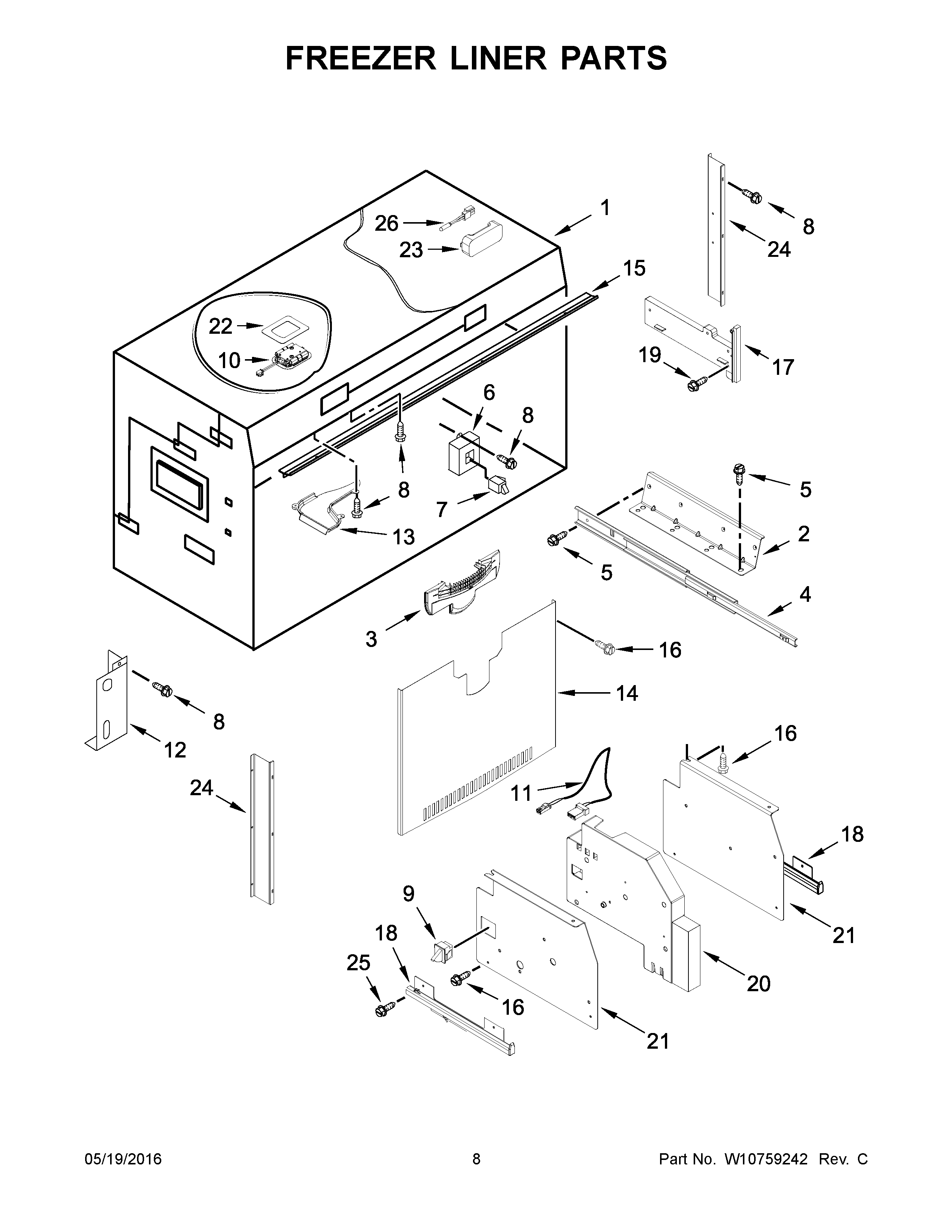

JB36NXFXLE00 05 – FREEZER LINER PARTS
Products
Position
Product
1
LINER (NOT A SERVICEABLE PART)
2
MAY W10744327
3
MAY W10541687
4
MAY W10423551
5
MAY W10061370
6
MAY W10606833
7
MAY W10565415
8
SCREW
9
MAY W10565413
10
MAY W10607479
11
MAY W10568445
12
MAY 2306187
13
MAY W10552980
14
MAY W10636533
15
MAY W10710400
16
MAY W10001160
17
MAY W10664385
17A
MAY W10664383
18A
MAY 2306116
18
MAY 2306117
20
MAY W10647421
21
MAY W10600630
21A
MAY W10600626
22
MAY W10672548
23
MAY W10609678
24
MAY W10538780
25
MAY 488163
26
MAY W10280386
←
