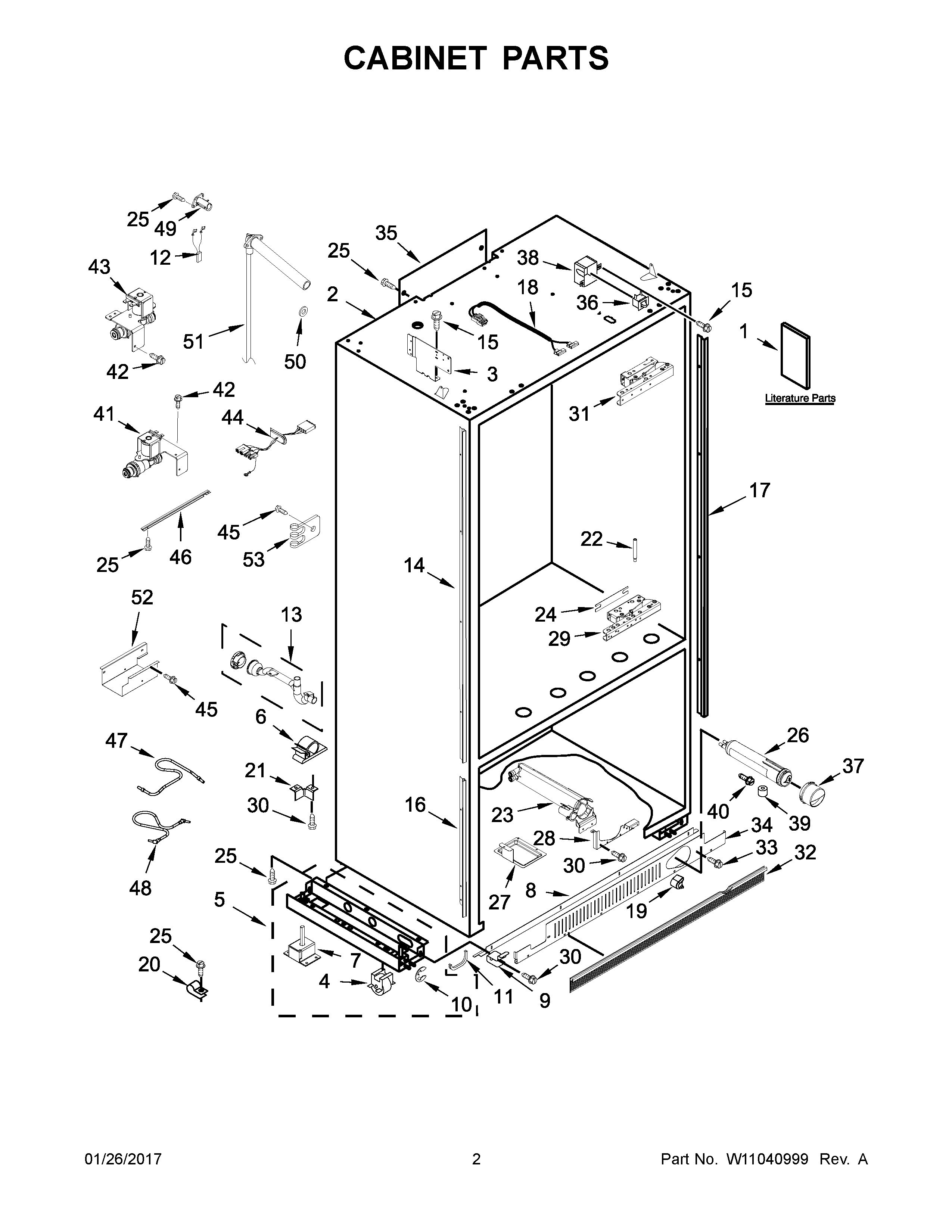

JB36NXFXLE01 02 – CABINET PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10744761
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10488115
NI	MAY W10613135
1D	MAY W10735232
1B	MAY W10896706
1A	MAY W10712801
1C	MAY W10896708
1E	MAY W10906504
1	MAY W10728796
3	MAY W10714143
3A	MAY W10714146
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	LEVELER ASSY
8	MAY W10634858
9	Mounting Stud, Grille
10	Ring, Retainer
11	GROMMET, CROSSOVERTUBE
12	WIRE ASSEMBLY, FILL TUBE HEATER
13	MAY W10702350
14	MAY W10687588
15	Screw
16	MAY W10714137
17	TRIM, CABINET SIDE (RIGHT HAND) (GREY)
18	MAY W10740131
19	Button, Filter (Black)
20	MAY 2221070
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY W10121140
24	MAY W10291661
25	SCREW
26	Filter, Water
27	Tray, Drip Filter
28	MAY W10674648
29	MAY W10691148
30	Screw
31	HINGE (TOP) LEFT HAND (GREY)
32	MAY W10188547
33	MAY W10005050
34	MAY W10189196
35	Cover, Rear
36	SWITCH, LIGHT
37	CAP, WATER FILTER (BLACK)
38	COVER, SWITCH (LH)
39	Spacer, Door-Skin (Top)
40	MAY 9741232
41	MAY W10574769
42	Screw
43	MAY W10578757
44	MAY W10565837
45	MAY W10001250
46	MAY 2320559
47	MAY W10619899
48	MAY W10635851
49	MAY 2221240
50	Seal
51	MAY 2317847
52	MAY W10619291
53	Clip, Tube
