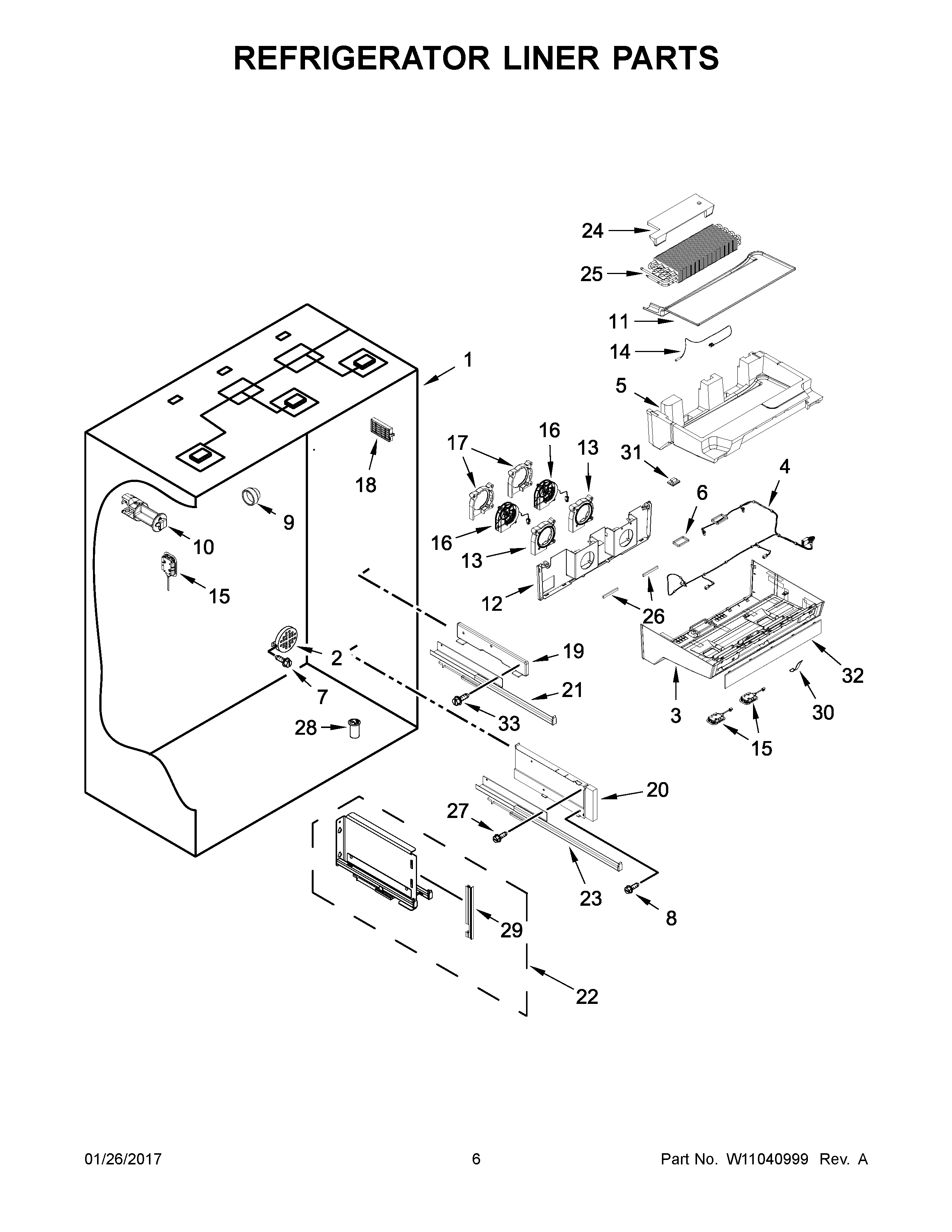

JB36NXFXLE01 04 – REFRIGERATOR LINER PARTS

JB36NXFXLE01 04 – REFRIGERATOR LINER PARTS

Written by

in

JB36NXFXLE01 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10606740
3	MAY W10636487
4	MAY W10565852
5	MAY W10555478
6	MAY W10638137
7	SCREW (BLACK)
8	MAY W10215666
9	MAY W10699426
10	MAY W10555493
11	MAY W10555480
12	MAY W10636488
13	MAY W10538315
14	MAY W10667607
15	ASSEMBLY, LED MODULE
16	MAY W10704104
17	MAY W10538317
18	FILTER, AIR
19	MAY W10569851
20A	MAY W10569845
20	MAY W10569848
21A	MAY W10569886
21	MAY W10569887
22	MAY W10654278
23	MAY W10569890
23A	MAY W10615641
24	MAY W10555472
25	MAY W10552972
26	MAY W10740077
27	Screw (Right Side- (8-18 x 1.375))
28	MAY W10608798
29	MAY W10604667
30	MAY W10669036
31	MAY W10741189
32	MAY W10776331
33	Screw
